Symptoms - Vibration Diagnosis and Correction

Symptoms - Vibration Diagnosis and Correction

Important: Perform the following steps in sequence BEFORE using this symptom table.


1. Begin the diagnosis of a vibration concern by reviewing Diagnostic Starting Point - Vibration Diagnosis and Correction (Diagnostic Starting Point - Vibration Diagnosis and Correction) to become familiar with the diagnostic process used to properly diagnose vibration concerns.
2. Perform the Vibration Analysis - Road Testing (Vibration Analysis - Road Testing) Table before using this symptom table in order to duplicate and effectively diagnose the customer's concern.

Symptom List

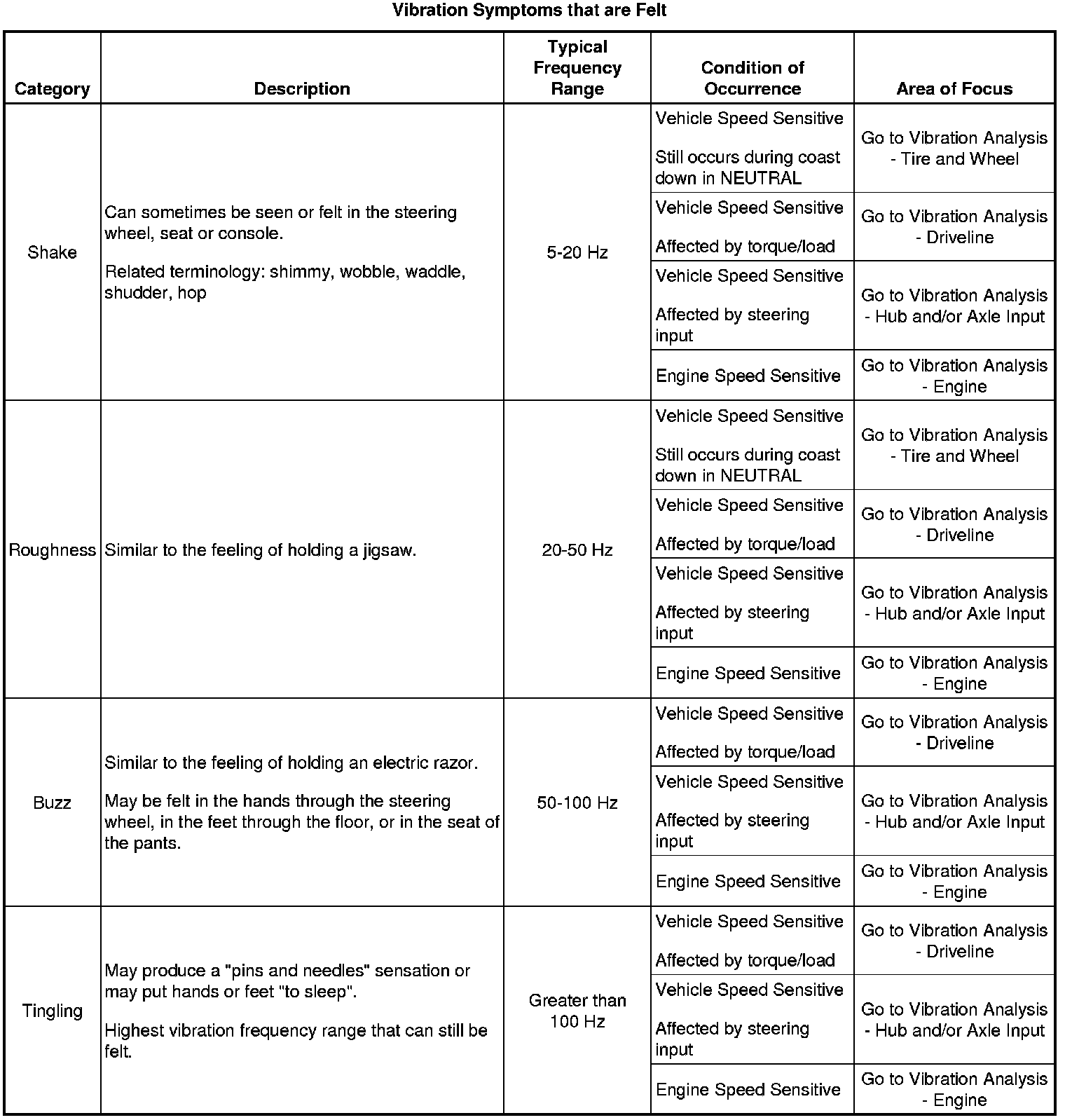

Refer to a Vibration Analysis Table as indicated in the following lists; based on the most dominant characteristics of the customer's vibration concern, felt or heard, that is evident during the appropriate condition of the occurrence.
