SIR Steering Wheel Module Coil - Centering

Inflatable Restraint Steering Wheel Module Coil Centering

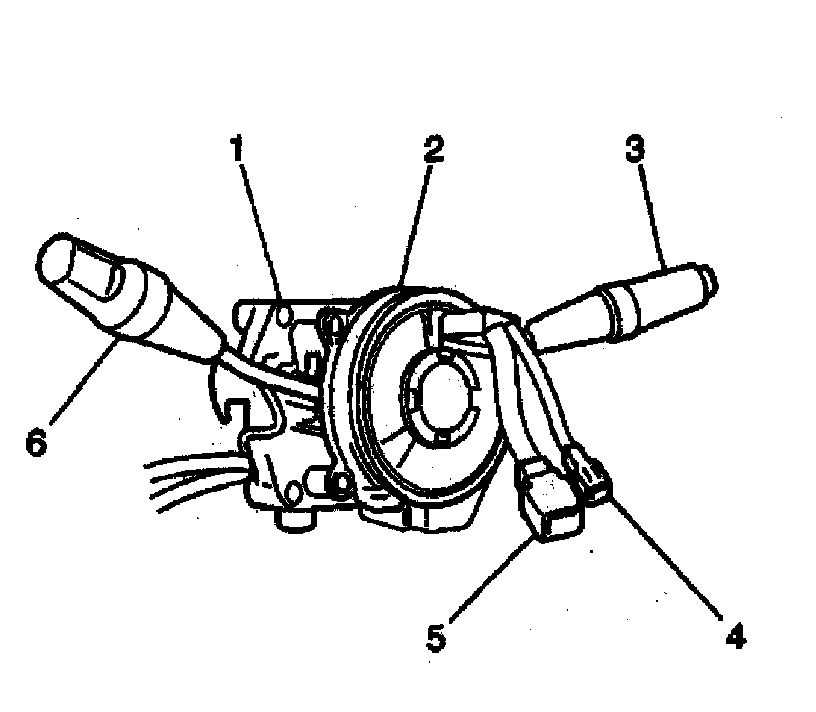

1. Turn the inflatable restraint steering wheel module coil (2) counterclockwise by hand slowly until the coil reaches the stop.
2. Turn the coil clockwise 2.5 turns.
3. Align the arrows on the coil.
