Front Wheel Alignment

Front Toe Adjustment
Use the following steps in order to adjust the toe:





1. Loosen the lock nuts.
2. Loosen the steering gear boot outer clamp on the inner tie rod.

Notice: Refer to Fastener Notice in Service Precautions.

Important: Ensure that the left tie rod and the right tie rod become equal in length.

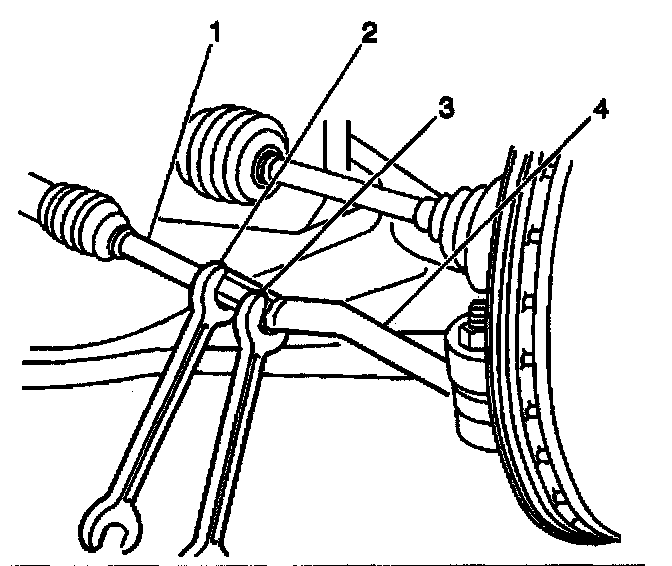

3. Rotate the left tie rod (1) and the right tie rod by the same amount.
Rotate the left tie rod and the right tie rod until the toe-in measures 0.0 degrees.
- Tighten tie rod lock nuts to 65 Nm (47 ft. lbs.).
4. Ensure the steering gear boots are not twisted.
5. Tighten the steering gear boot outer clamp on the inner tie rod.
