Home >> Chevy Truck >> 2004 >> Tracker 4WD L4-2.0L VIN C >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C201 - C218 >> C212

C212

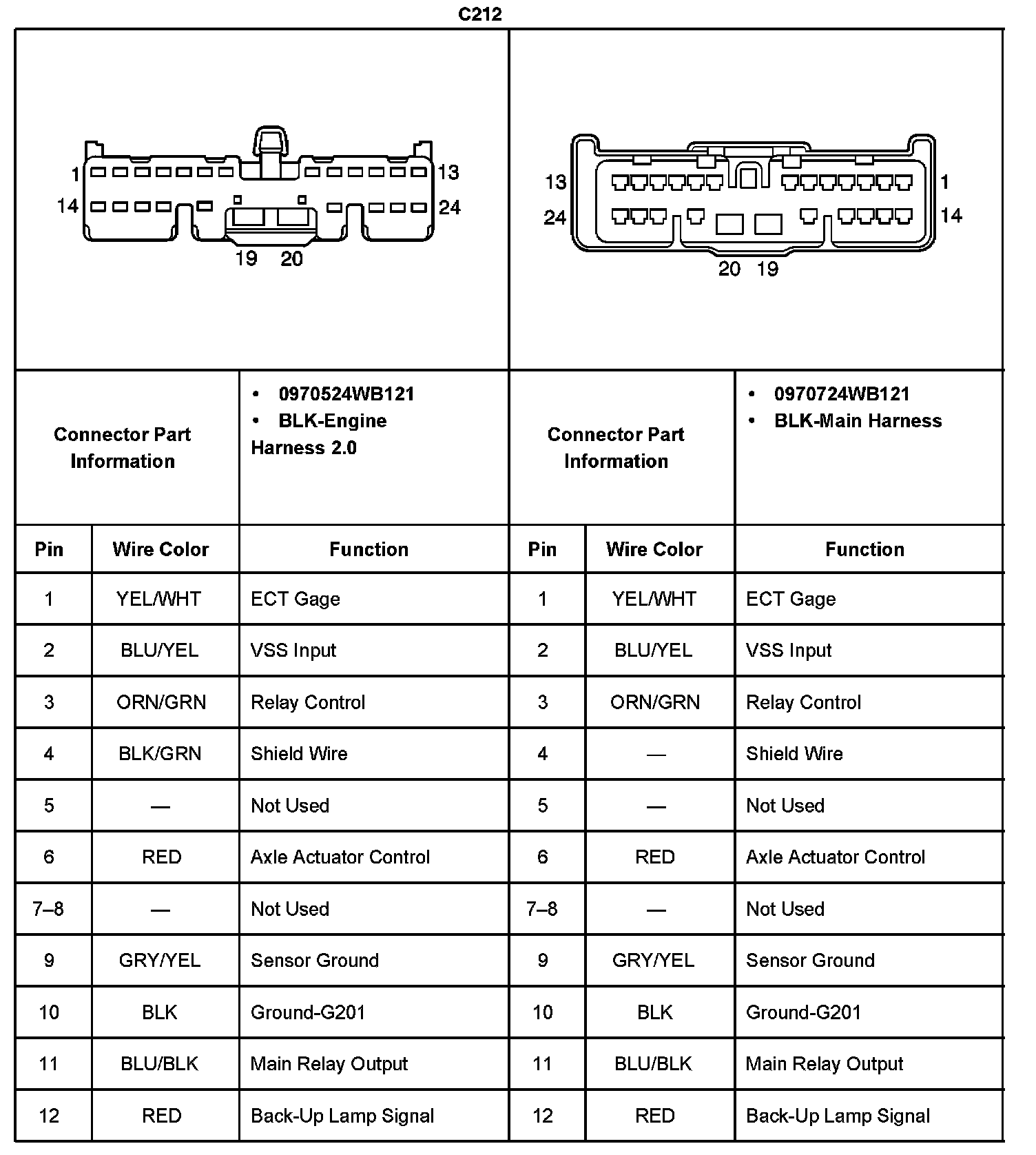

C212 Part 1:

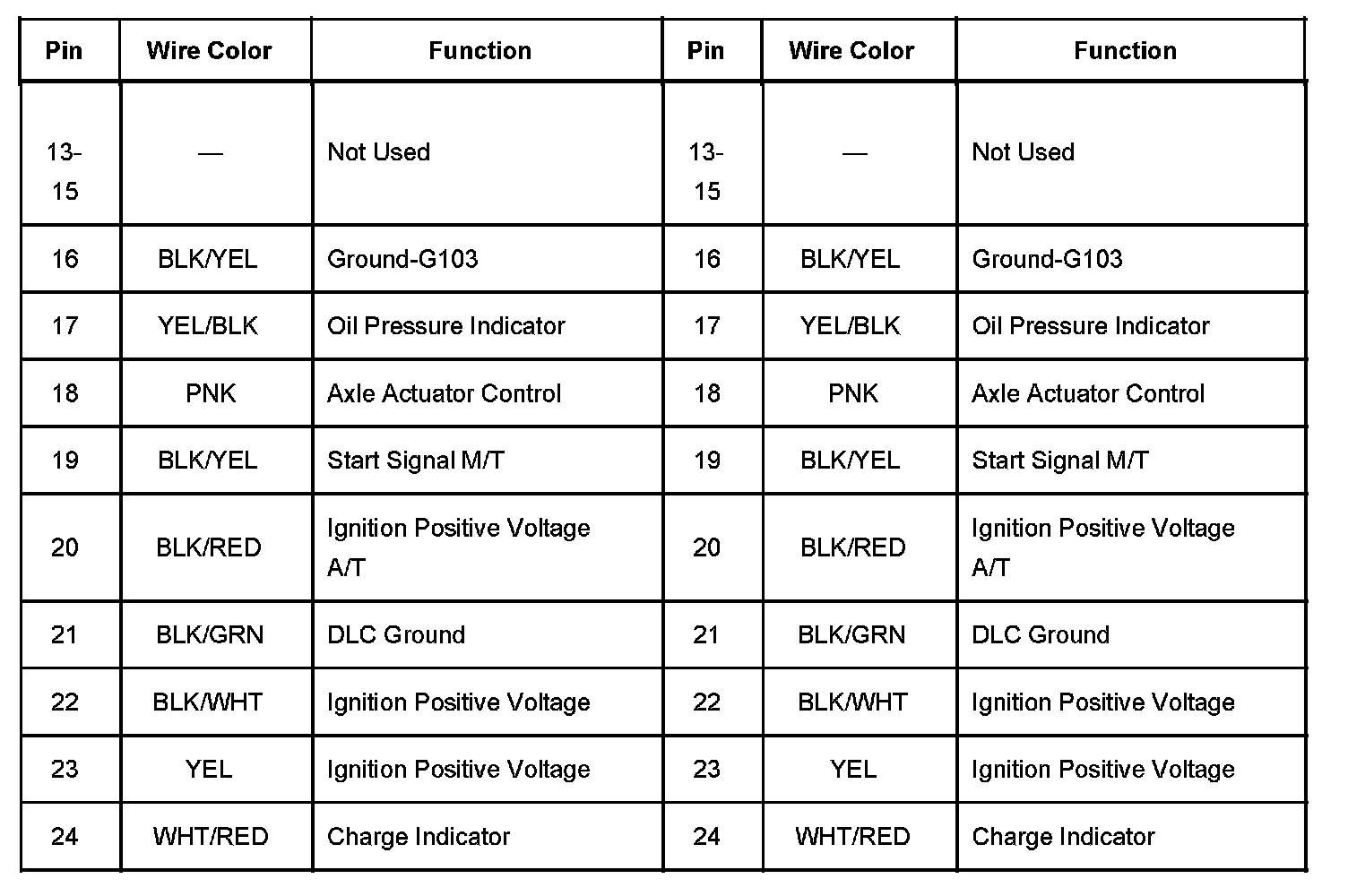

C212 Part 2:
