System Specifications

Engine Mechanical - 2.0L

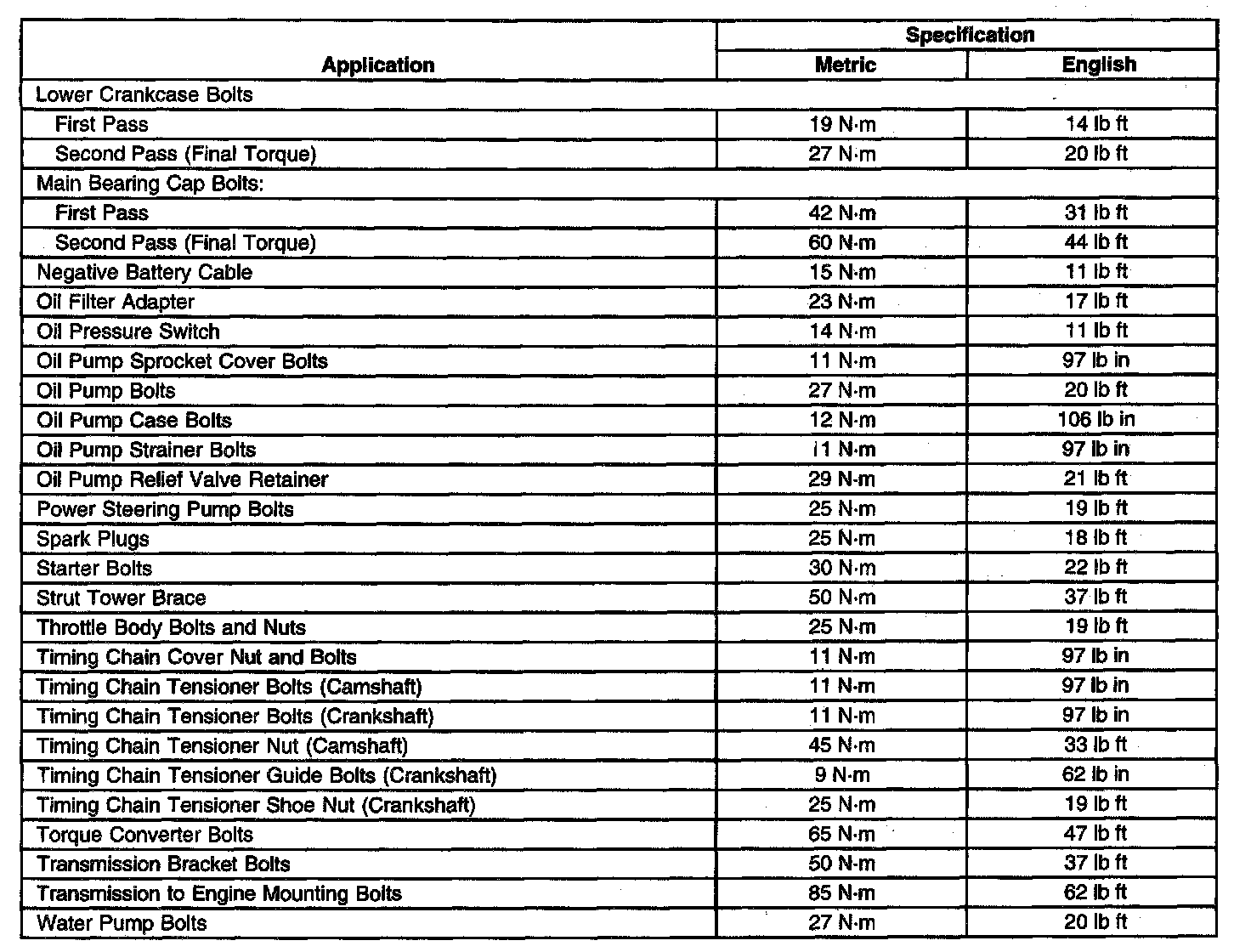

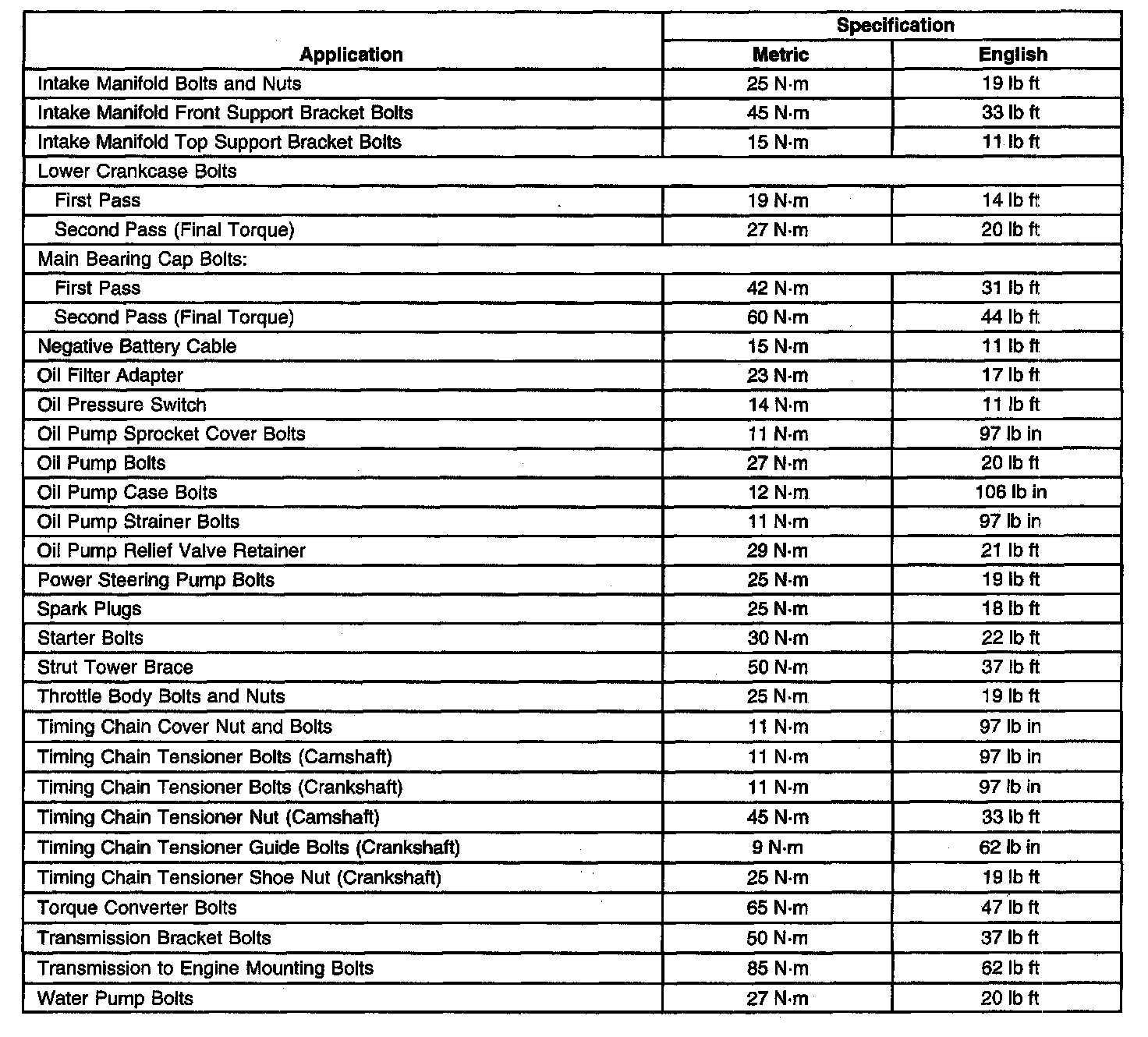

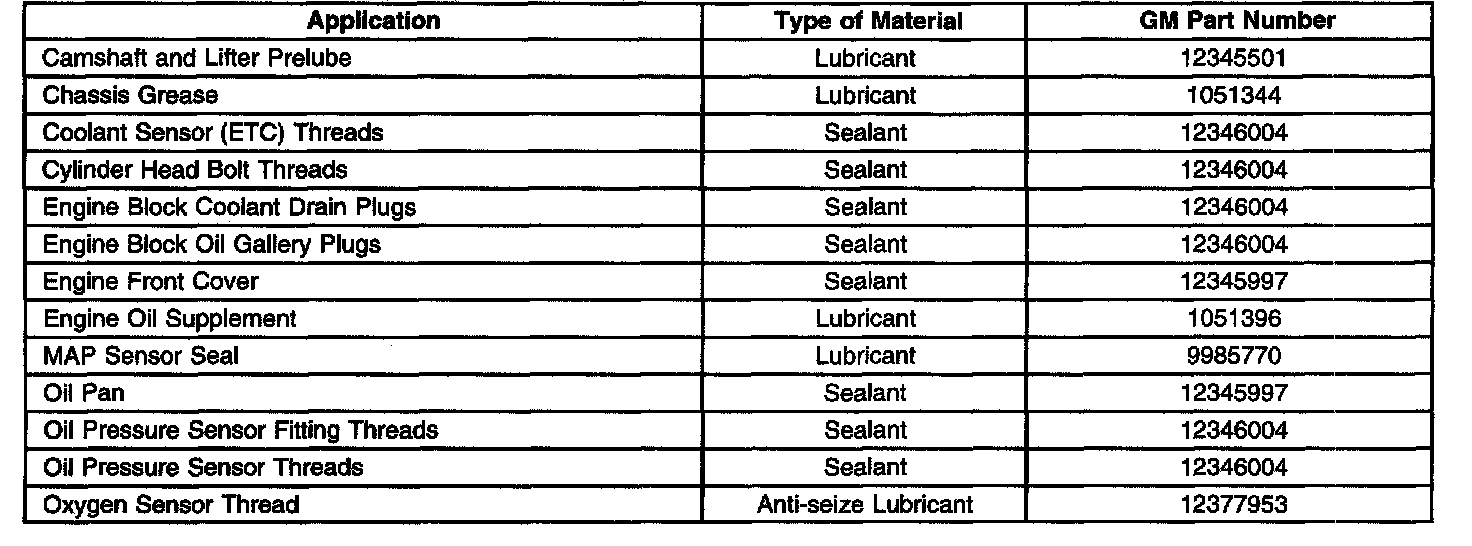

Fastener Tightening Specifications


Engine Mechanical (Unit Repair)

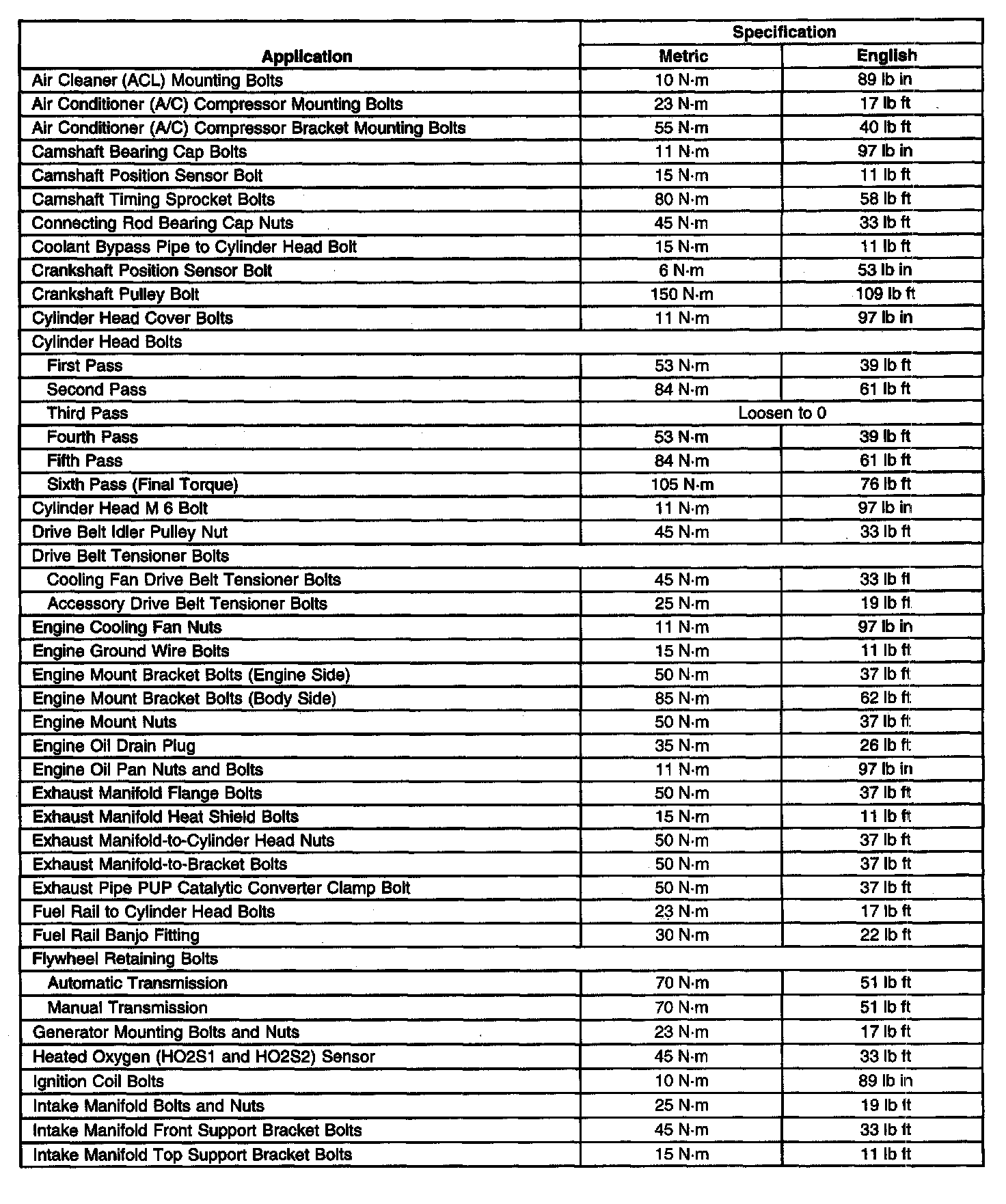

Fastener Tightening Specifications

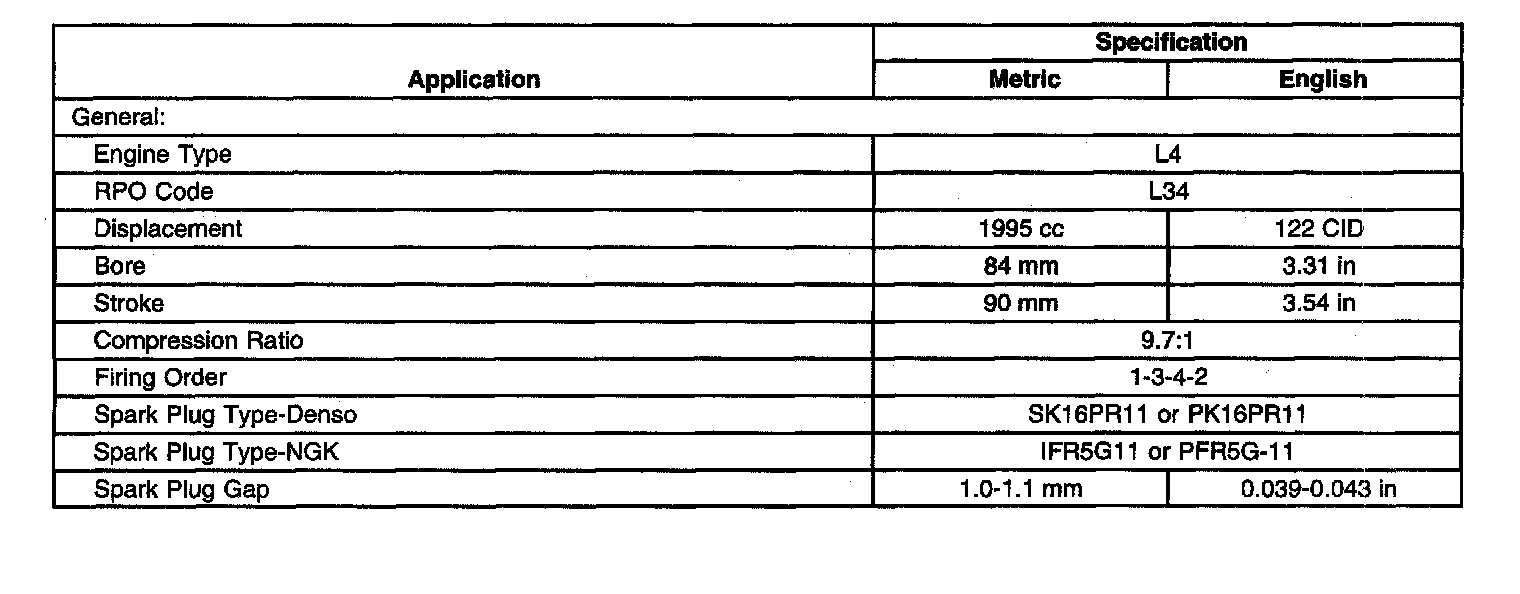

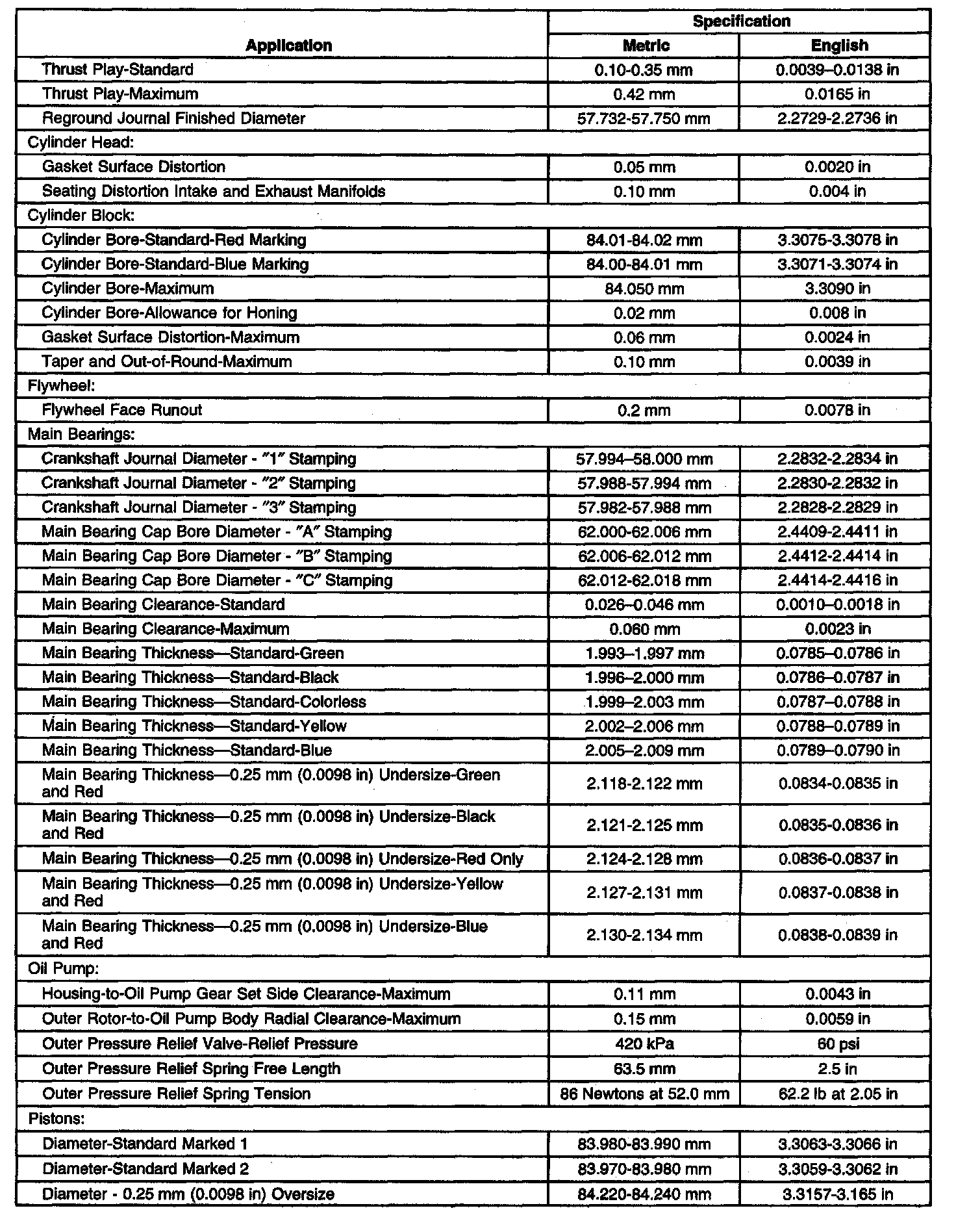

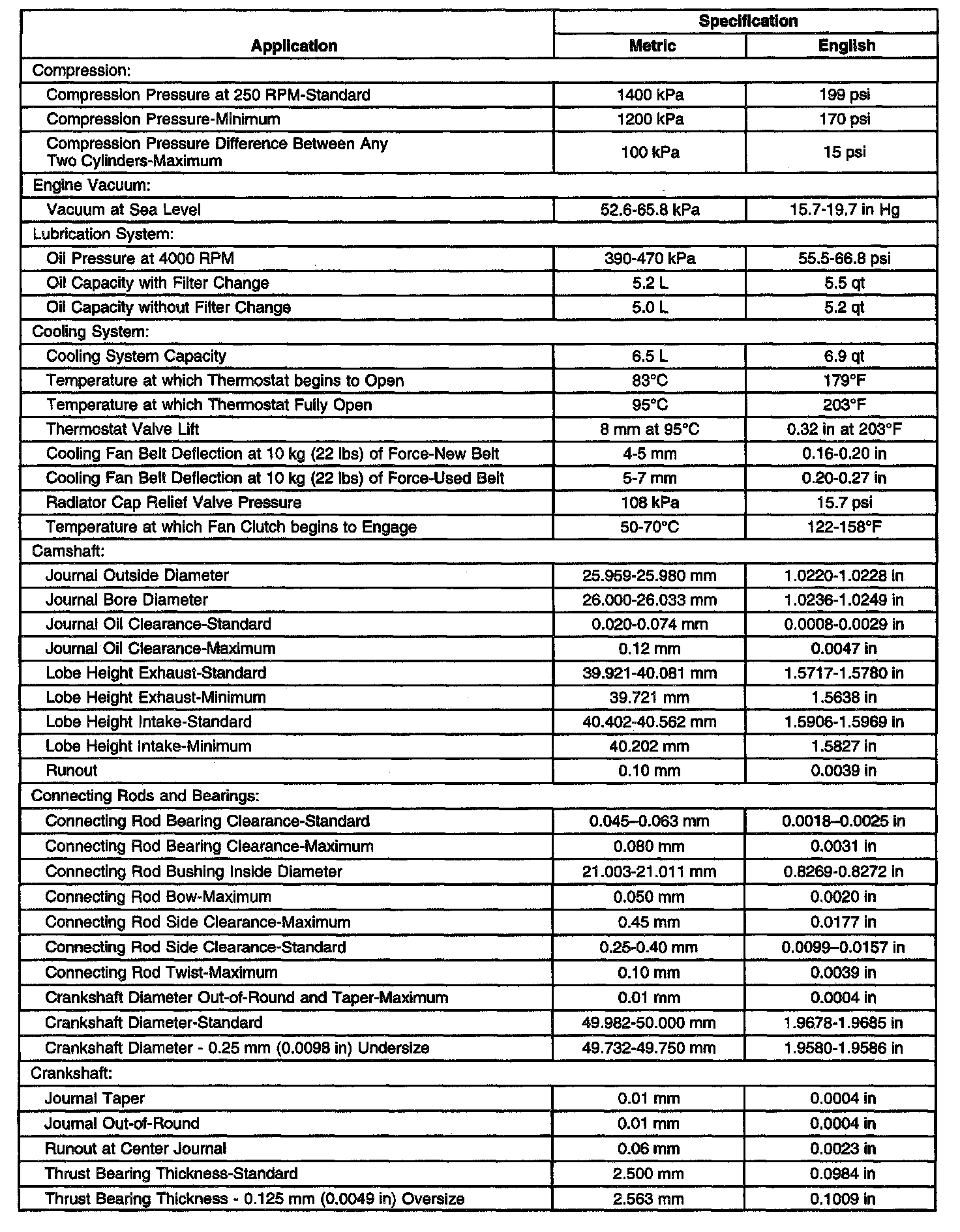

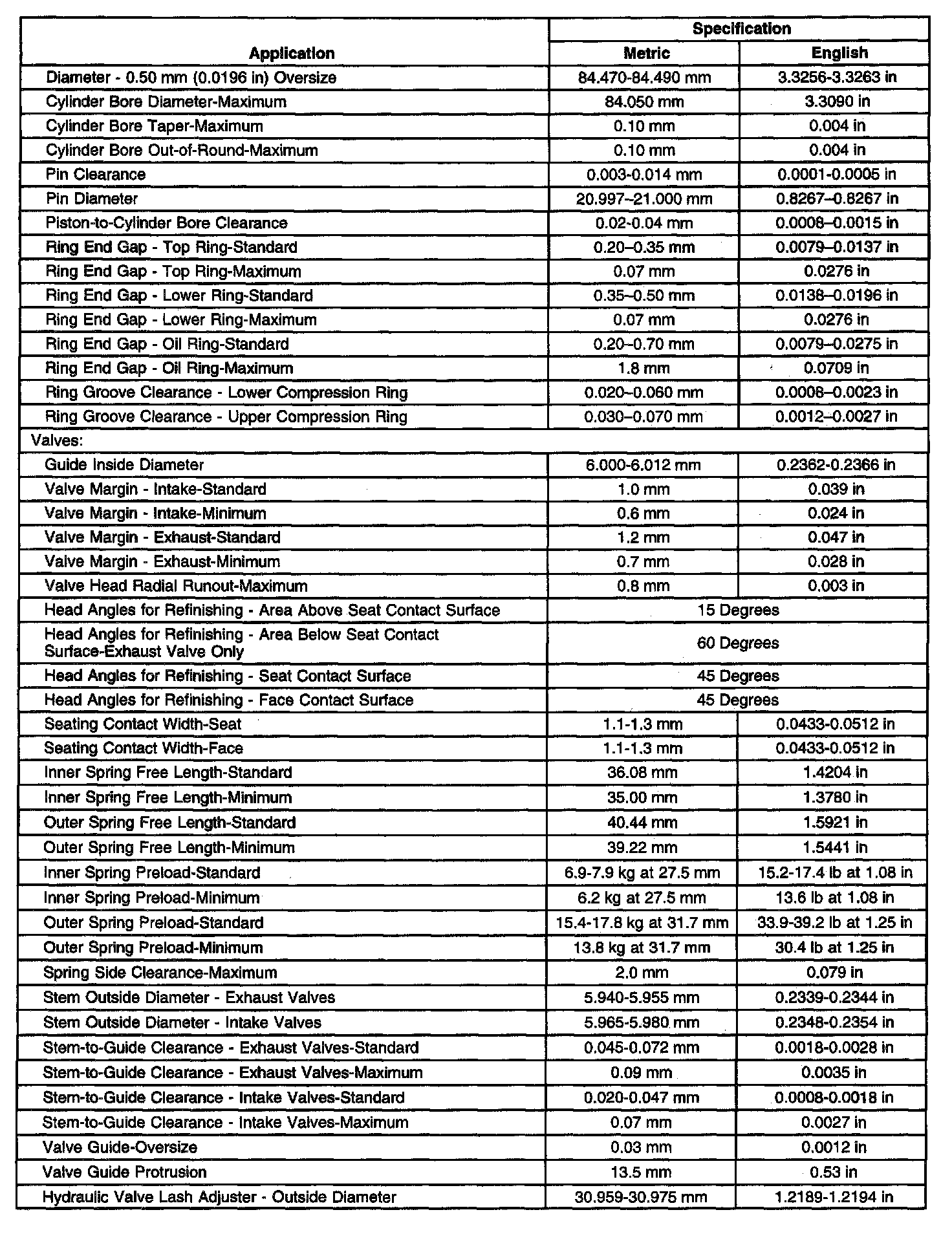

Engine Mechanical Specifications

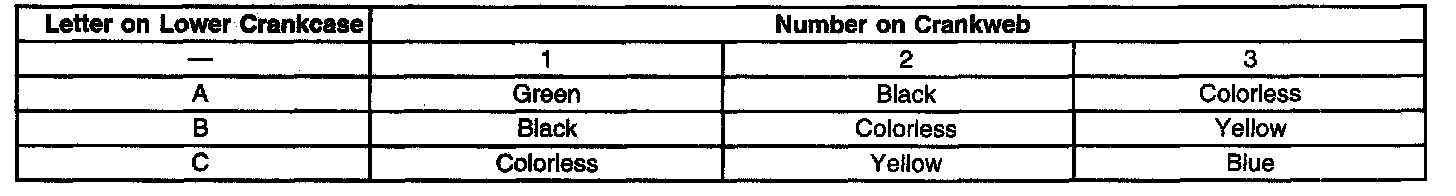

Standard Main Bearing Selection

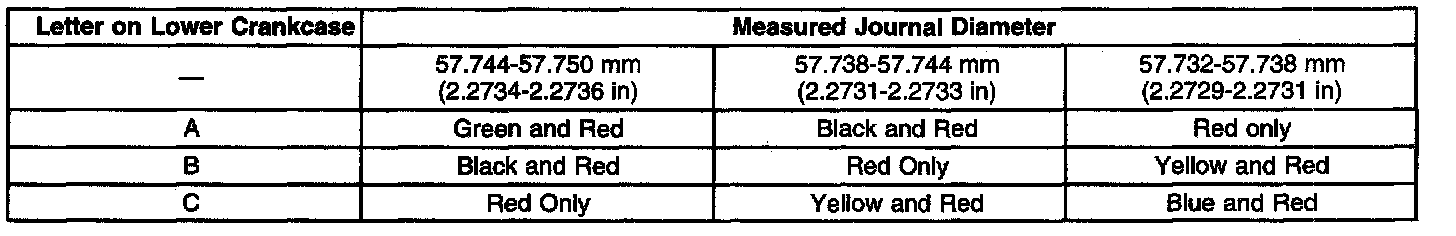

Undersize Main Bearing Selection

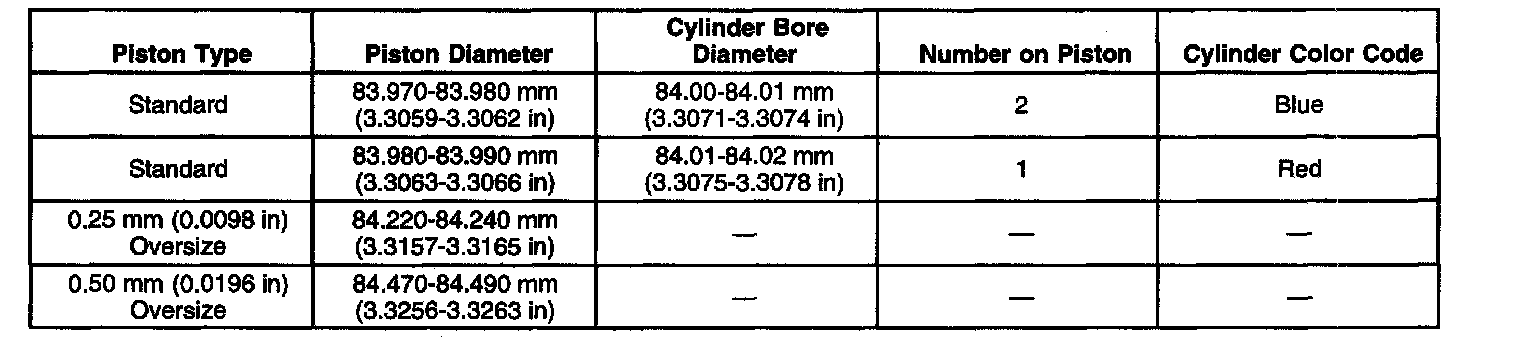

Piston Selection

CYLINDER HEAD TORQUE





1. Install the cylinder head bolts.
Tighten

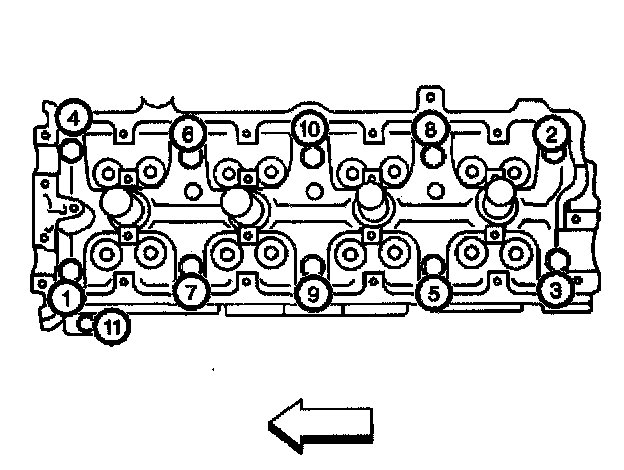

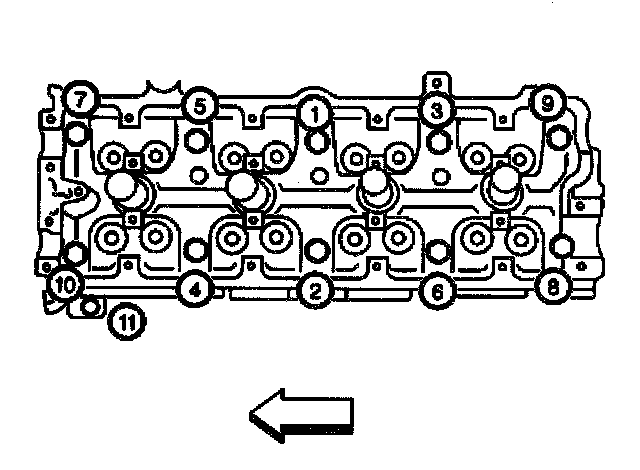

Tighten the cylinder head bolts (1-10) in the sequence shown to 53 Nm (39 lb. ft.)
2. Tighten the cylinder head bolts (1-10)
Tighten
Tighten the cylinder head bolts in (1-10) in the sequence shown to 84 Nm (61 lb. ft.)





3. Loosen the cylinder head bolts in the sequence shown to 0 torque.





4. Tighten the cylinder head bolts (1-10).
Tighten

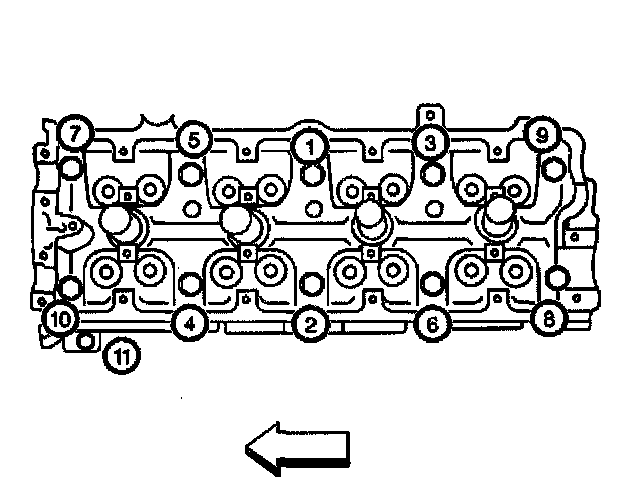

Tighten the cylinder head bolts (1-10) in the sequence shown to 53 Nm (39 lb. ft.)
5. Tighten the cylinder head bolts (1-10).
Tighten
Tighten the cylinder head bolts (1-10) in the sequence shown to 84 Nm (61 lb. ft.)
6. Tighten the cylinder head bolts (1-10).
Tighten
Tighten the cylinder head bolts (1-10) in the sequence shown to 105 Nm (76 lb. ft.)
7. Tighten the M6 cylinder head bolt (11).
Tighten
Tighten the cylinder head bolt to 11 Nm (97 lb. in.)





Camshaft Cap Tightening Sequence
