Brake Light Switch: Service and Repair

STOP LAMP SWITCH REPLACEMENT

REMOVAL PROCEDURE




1. Disconnect the stop lamp switch connector.

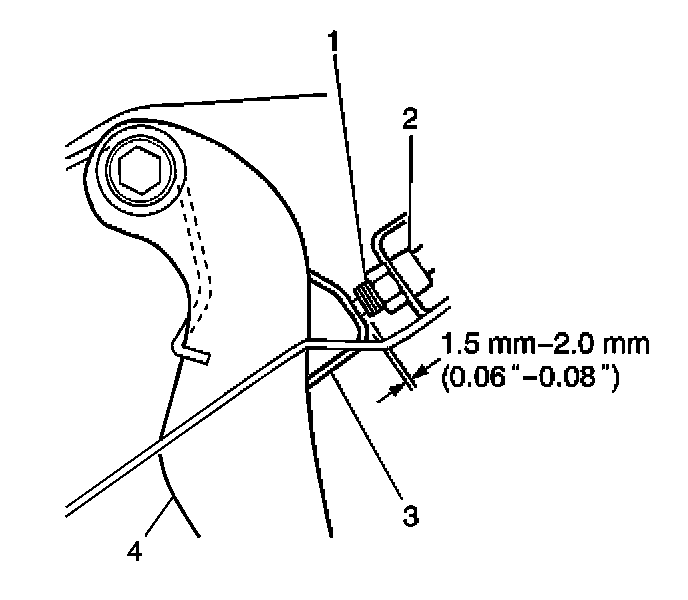

2. Remove the stop lamp switch nut (1) and the stop lamp switch (2).

INSTALLATION PROCEDURE

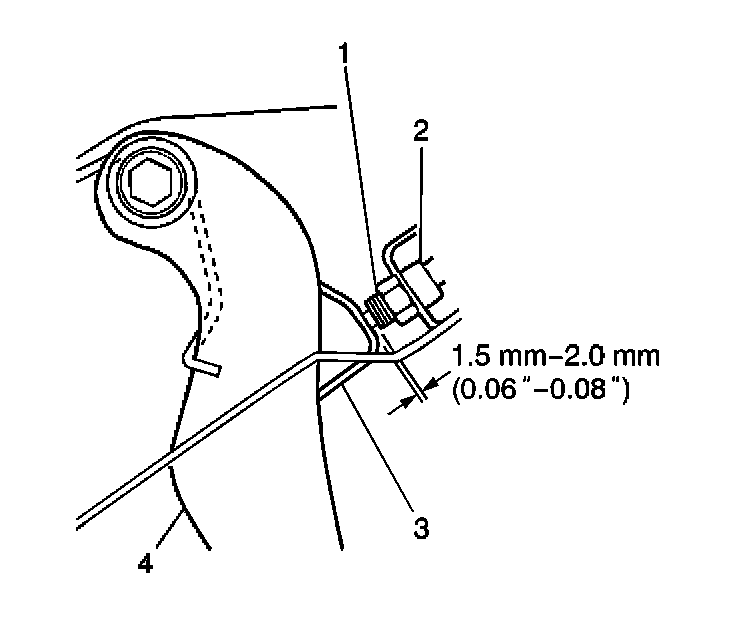

1. Install the stop lamp switch (2) to the bracket. Secure with the nut (1).

IMPORTANT: DO NOT tighten the stop lamp switch nut before adjusting the stop lamp switch.

2. Connect the stop lamp switch connector.
3. Adjust the stop lamp switch. Refer to Stop Lamp Switch Adjustment.
