Wheel Speed Sensor Ring Replacement - Rear

Wheel Speed Sensor Ring Replacement - Rear

Removal Procedure





1. Remove the rear axle shaft.

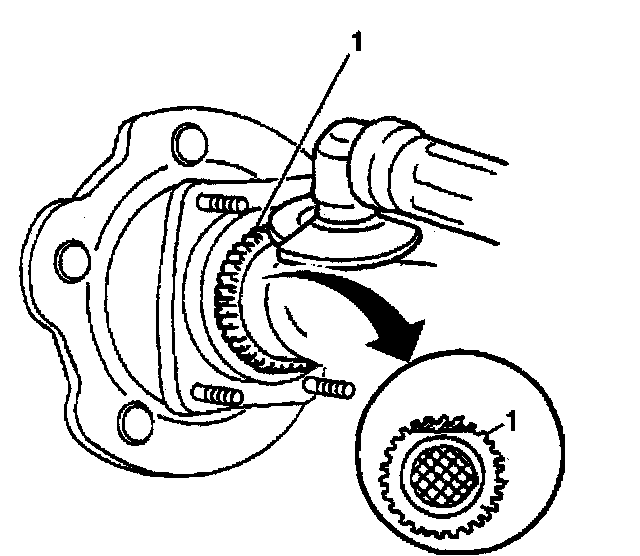

2. Grind a flat spot on the reluctor wheel (1).

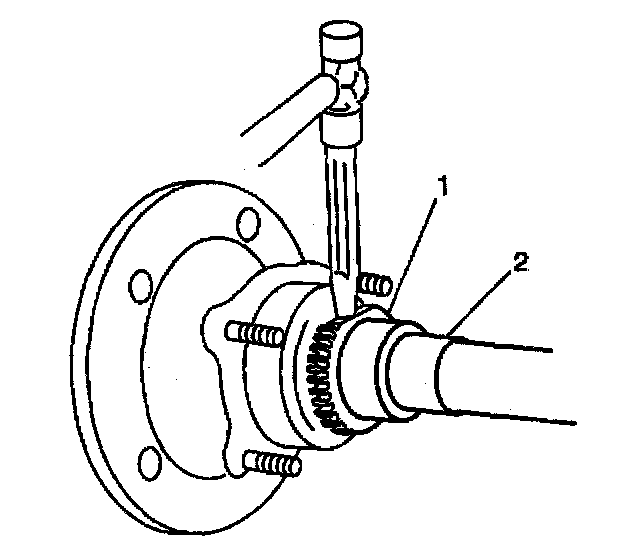

3. Use a hammer and chisel in order to remove the ABS reluctor wheel (1).

Installation Procedure

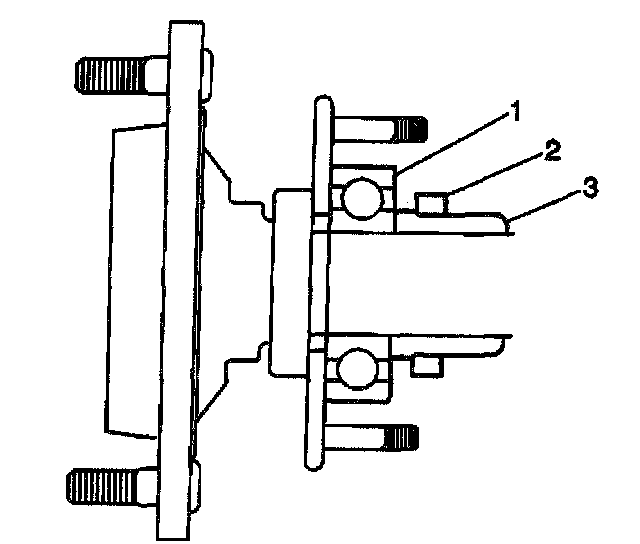

1. Install the rear ABS reluctor wheel (2) onto the rear axle shaft.
2. Install the axle shaft.
3. Perform Diagnostic System Check - ABS.
