Wheel Speed Sensor Ring Replacement - Front

Wheel Speed Sensor Ring Replacement - Front

^ Tools Required
- J 39245 Sensor Ring Installer

Removal Procedure





1. Remove the Front Wheel Hub.

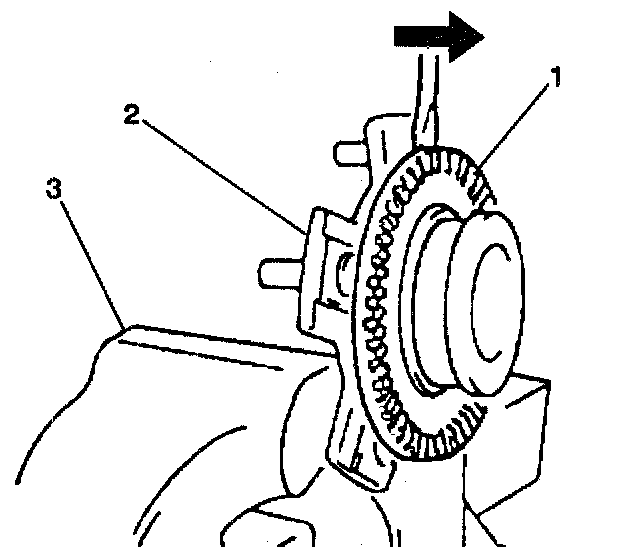

2. Remove the ABS reluctor ring (1) from the wheel hub (2) by prying the ring away from the hub.

Installation Procedure

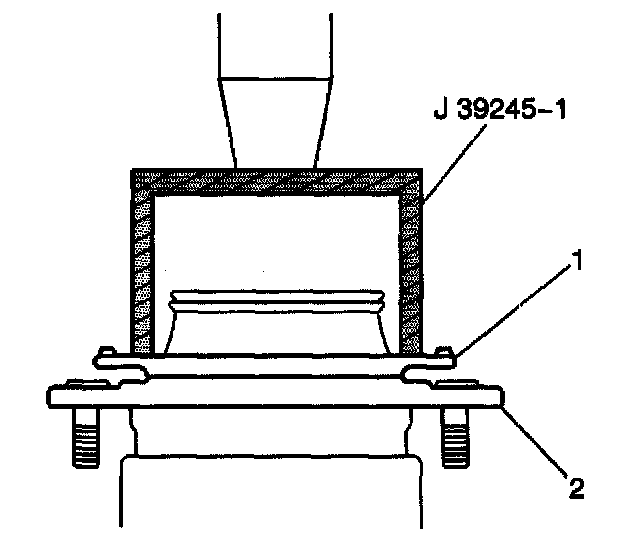

1. Using J 39245, press the ABS reluctor ring (2) onto the wheel hub.
2. Install the Front Wheel Hub.
3. Perform Diagnostic System Check - ABS.
