Wheel Speed Sensor: Diagrams

ABS Connector End Views

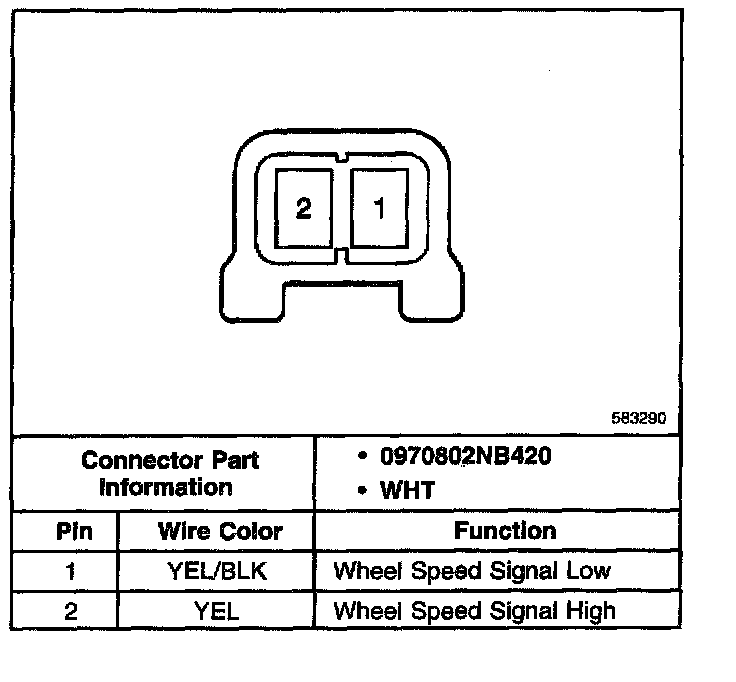

LF Wheel Speed Sensor

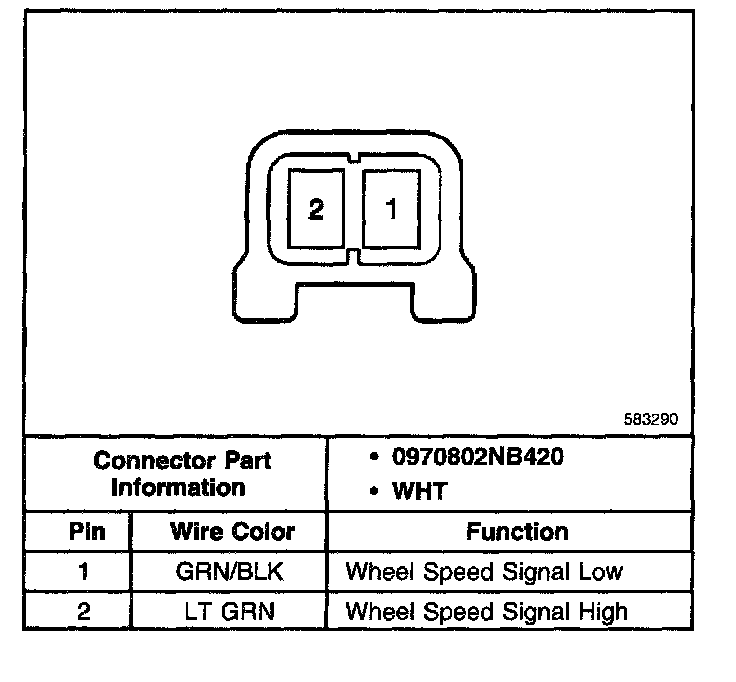

LR Wheel Speed Sensor

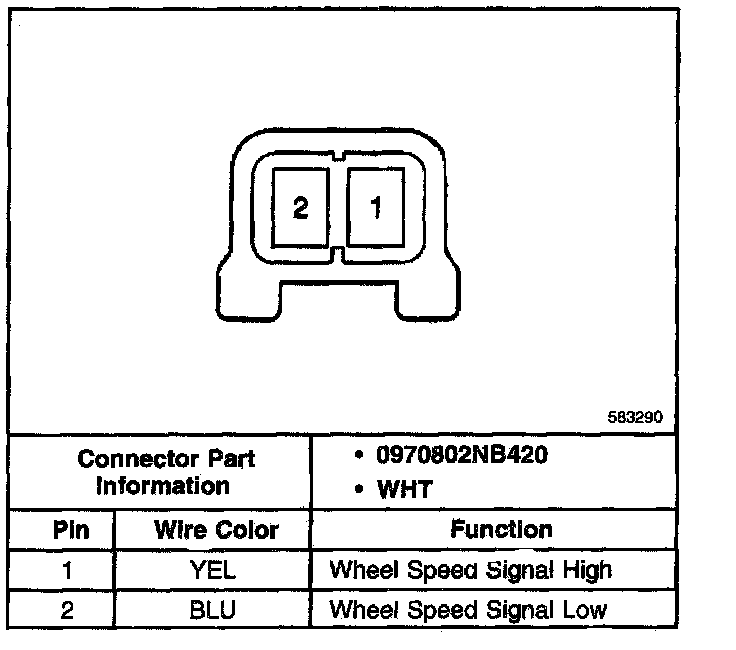

RF Wheel Speed Sensor





RR Wheel Speed Sensor
