Seat Belt Height Adjuster Replacement - Front (4 Door)

REMOVAL PROCEDURE




1. Remove the upper center pillar trim.

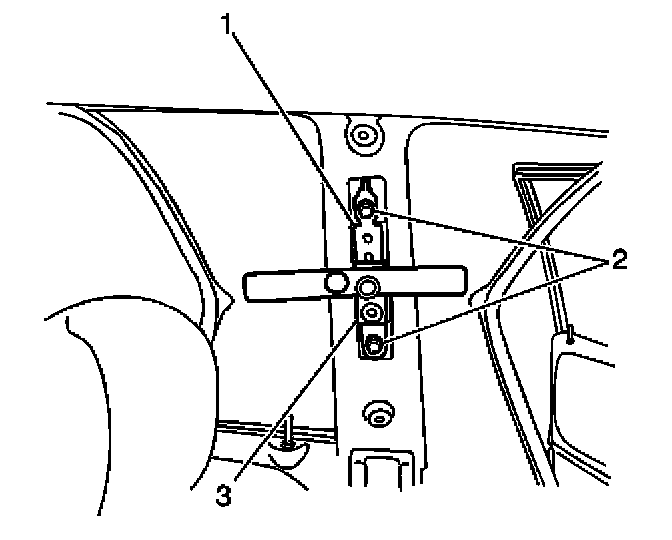

2. Remove the following components from the vehicle:
2.1. The 2 bolts (2)
2.2. The front seat shoulder belt retractor tension adjuster (1)

INSTALLATION PROCEDURE




1. Install the front seat belt shoulder belt retractor tension adjuster (1) to the vehicle. Secure the adjuster with the 2 bolts (2).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the front seat belt shoulder belt retractor tension adjuster bolts to 35 N.m (25 lb ft).

2. Install the upper center pillar trim.
