Seat Belt Guide Track: Service and Repair
SHOULDER BELT GUIDE BRACKET REPLACEMENT - REAR SEATREMOVAL PROCEDURE
1. Remove the rear seat belt.

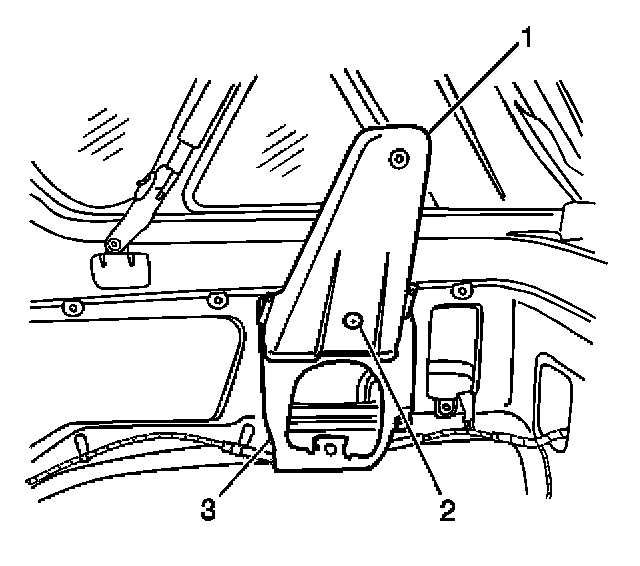

2. Remove the following components from the rear seat shoulder guide bracket (3):
2.1. The plastic retainer (2)
2.2. The rear seat shoulder belt guide bracket cover (1)

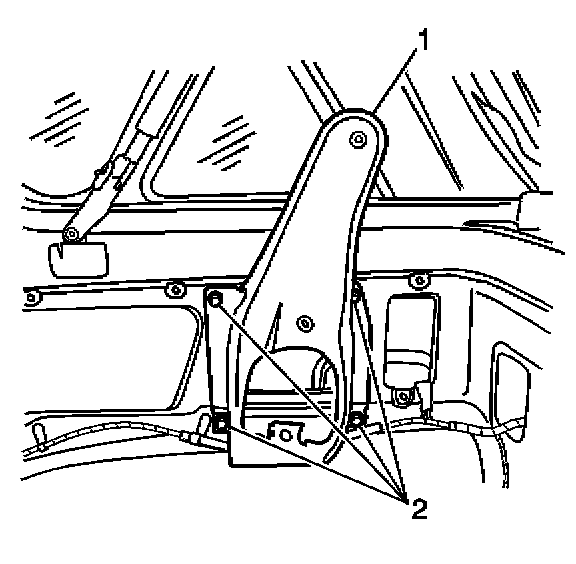

3. Remove the following components from the vehicle:
3.1. The 4 bolts (2)
3.2. The rear seat shoulder belt guide bracket (1)
INSTALLATION PROCEDURE

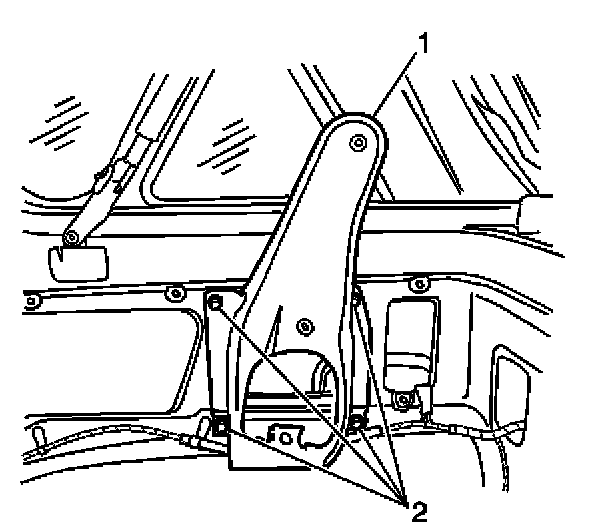

1. Install the rear seat shoulder belt guide bracket (1) to the vehicle. Secure the bracket with the 4 bolts (2).
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the rear seat shoulder belt guide bracket bolts to 35 N.m (25 lb ft).

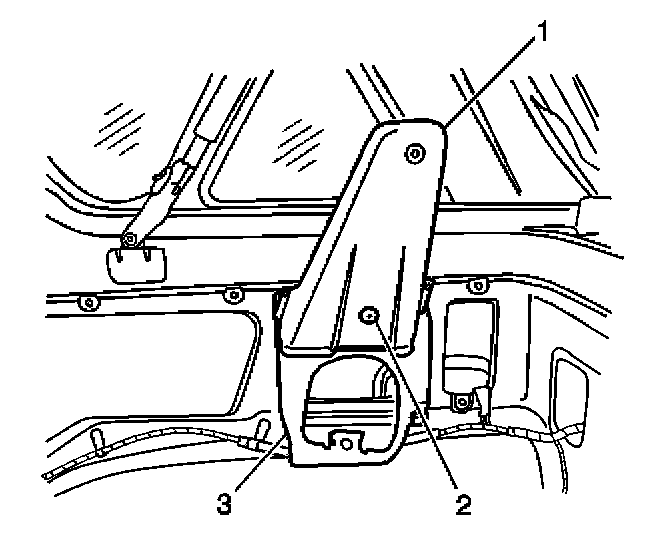

2. Install the rear seat shoulder belt guide bracket cover (1) to the rear seat shoulder guide bracket (3). Secure the bracket cover with the plastic retainer (2).
3. Install the rear seat belt.
