Child Tether Anchor Bracket Replacement - Rear Sill

REMOVAL PROCEDURE

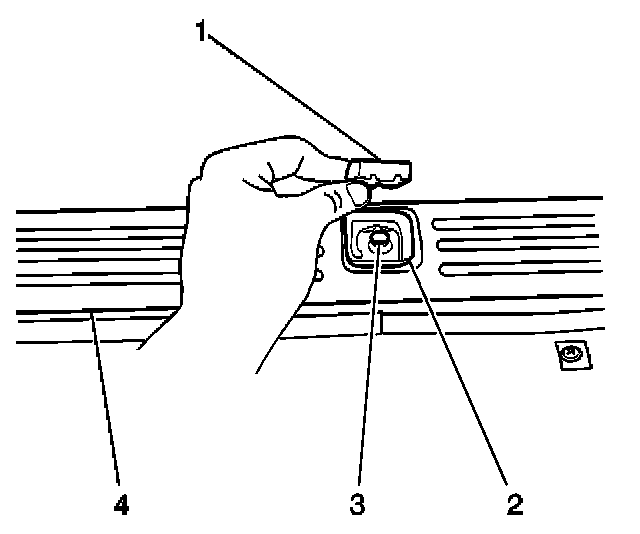

1. Gently pry loose and remove the rear sill child seat anchor bracket trim cover (1) from the rear sill anchor bracket (2).
2. Remove the following components from the vehicle:
- The bolt (3)
- The rear sill child seat anchor bracket (2).

INSTALLATION PROCEDURE

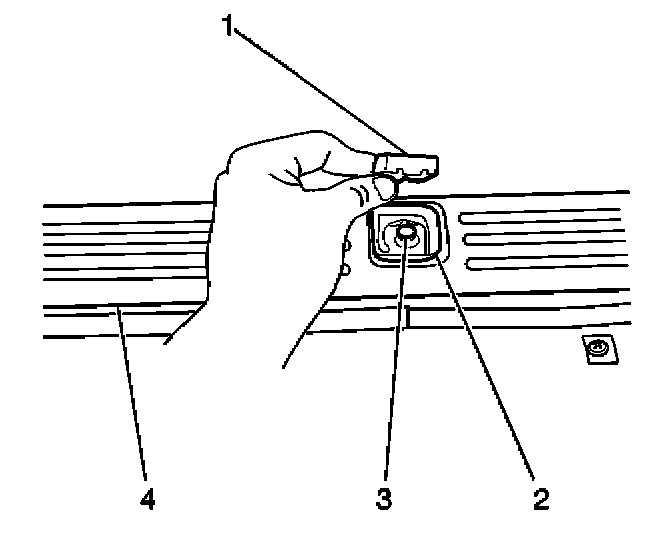

1. Install the rear sill child seat anchor bracket (2) to the vehicle. Secure the rear sill bracket with the bolt (3).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the rear sill child seat anchor bracket bolt to 35 N.m (25 lb ft).

2. Install the rear sill child seat anchor bracket trim cover (1) to the rear sill bracket (2).
