Air Bag Control Module: Diagrams

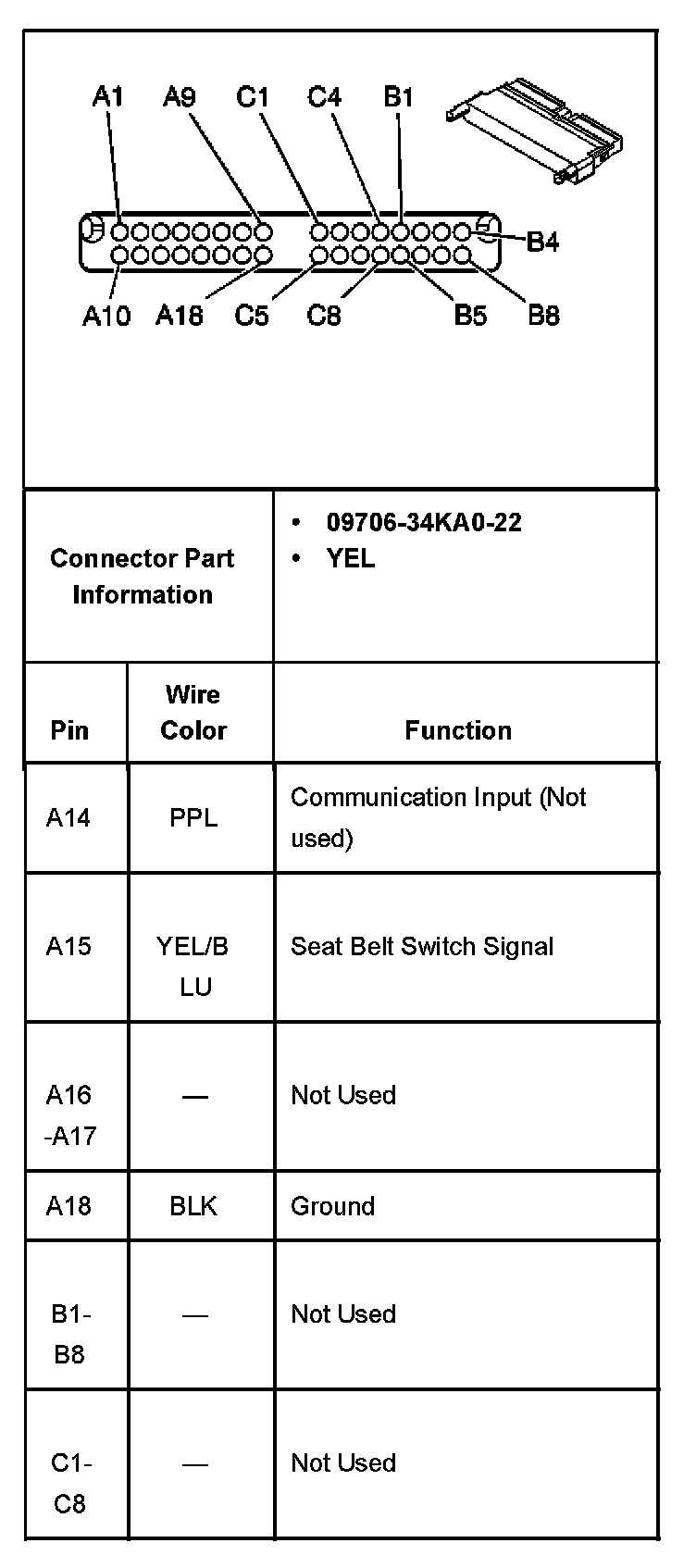

Inflatable Restraint Sensing And Diagnostic Module Part 1:

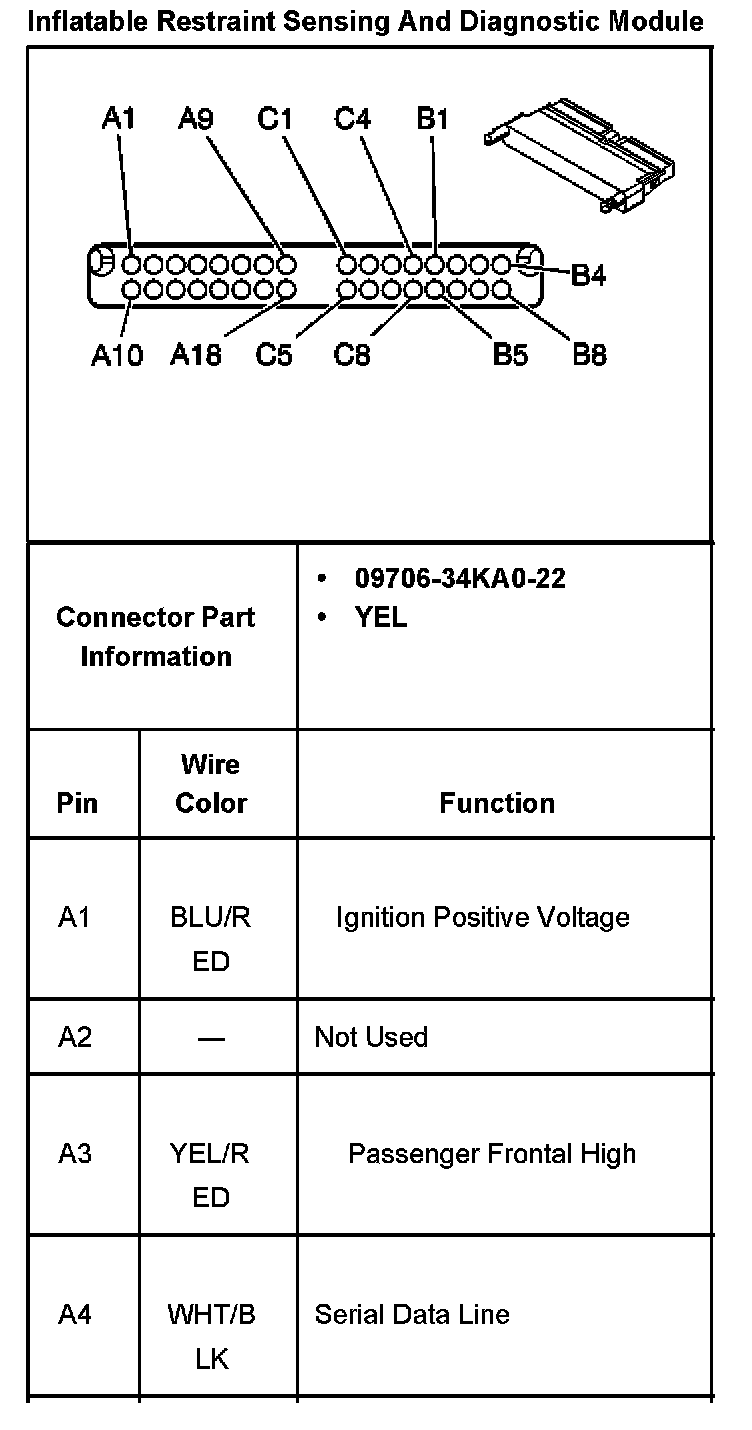

Inflatable Restraint Sensing And Diagnostic Module Part 2:

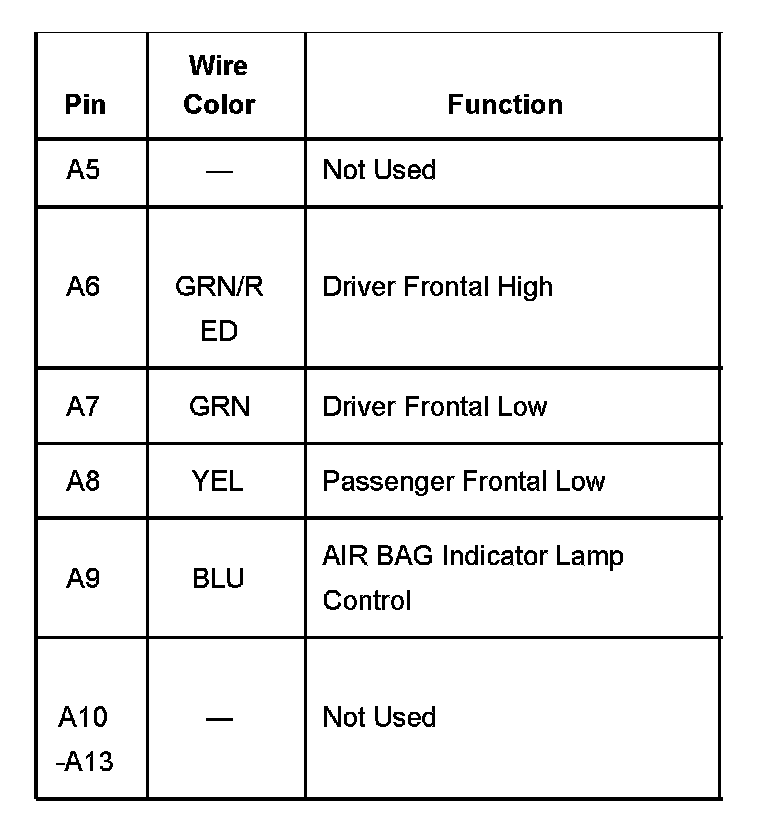

Inflatable Restraint Sensing And Diagnostic Module Part 3:
