Headlamp Relay: Service and Repair

HEADLAMP RELAY REPLACEMENT

REMOVAL PROCEDURE

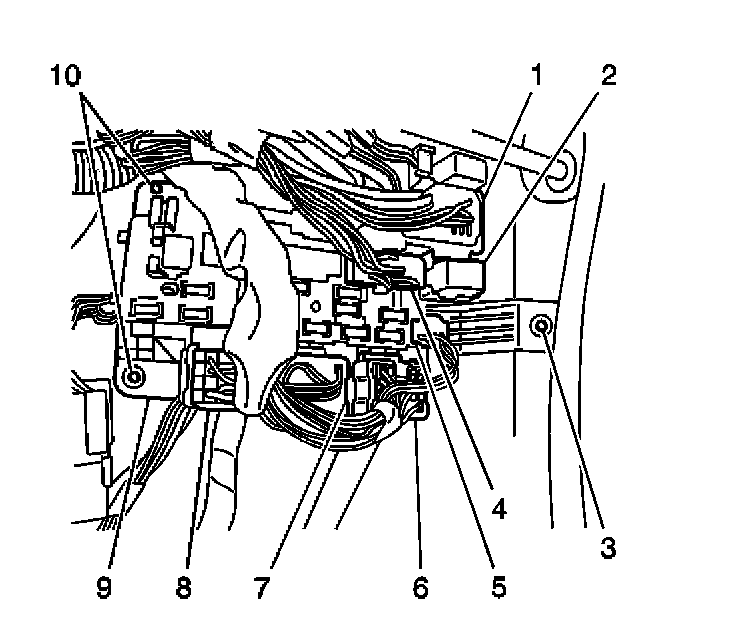

Remove the headlamp relay (2) by pulling from the junction block (9).

INSTALLATION PROCEDURE

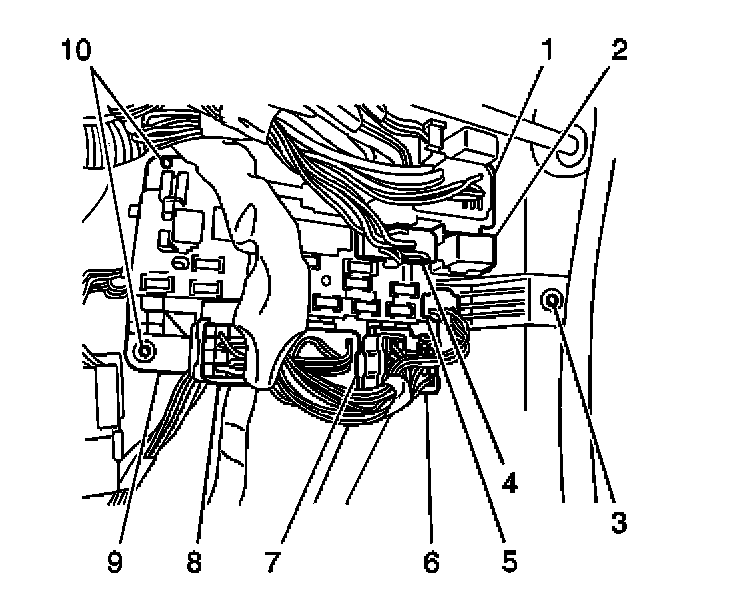

Install the headlamp relay (2) to the junction block (9).
