Coolant Temperature Sensor/Switch (For Computer): Service and Repair

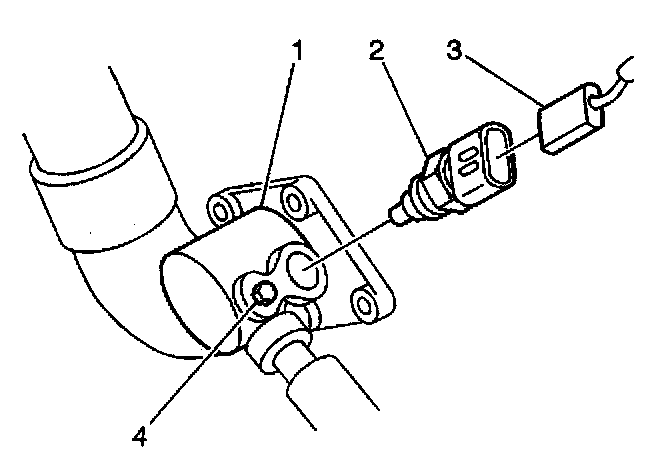

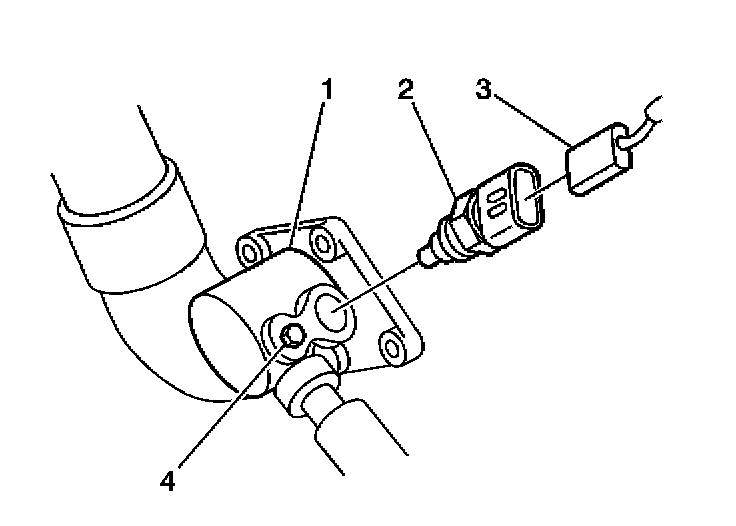

ENGINE COOLANT TEMPERATURE (ECT) SENSOR REPLACEMENTREMOVAL PROCEDURE
1. Drain the cooling system. Refer to Draining and Filling Cooling System in Cooling System.
2. Remove the ECT sensor electrical connector (3).
3. Remove the ECT sensor (2) from the coolant housing (1).
INSTALLATION PROCEDURE
1. Install ECT sensor (2) to the coolant housing (1).
NOTE: Refer to Component Fastener Tightening Notice in Service Precautions.
Tighten
Tighten the ECT sensor to 15 N.m (11 lb ft).
2. Connect the ECT sensor electrical connector (3).
3. Fill the cooling system. Refer to Draining and Filling Cooling System in Cooling System.
