Throttle Cable/Linkage: Adjustments

ACCELERATOR CABLE ADJUSTMENT




1. With the throttle valve closed, measure the accelerator pedal free play (1). The accelerator pedal free play clearance is 2-7 mm (0.08-0.27 in).




2. Loosen the accelerator cable locknut (2) at the throttle body bracket.
3. Turn the accelerator cable adjusting nut (1) in order to obtain 2-7 mm (0.08-0.27 in) of accelerator pedal free play.
4. Tighten the accelerator cable locknut (2).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the locknut to 23 N.m (17 lb ft).

5. Repeat Step 1 through Step 4 until the accelerator pedal free play is 2-7 mm (0.08-0.27 in).

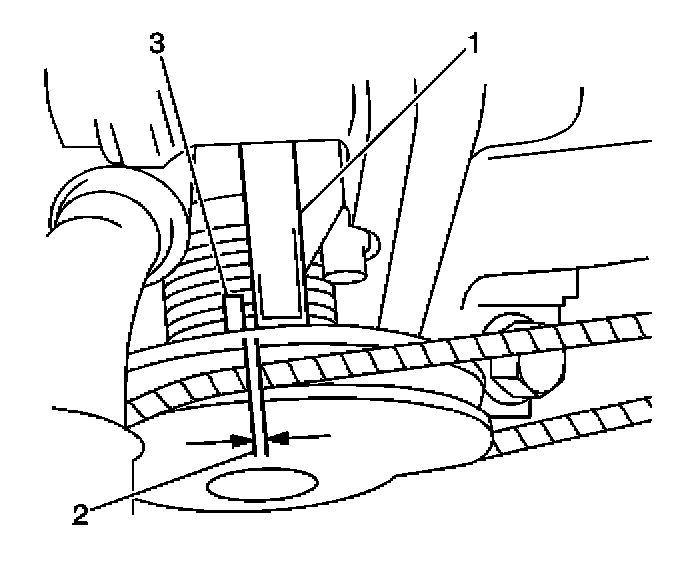

6. With the accelerator pedal fully depressed, measure the clearance (2) between the throttle lever (3) and the throttle stop (1). Check the accelerator cable end play clearance as follows:
- 0.5-2.0 mm (0.02-0.07 in) with a M/T
- 0.8-1.5 mm (0.03-0.06 in) with an A/T

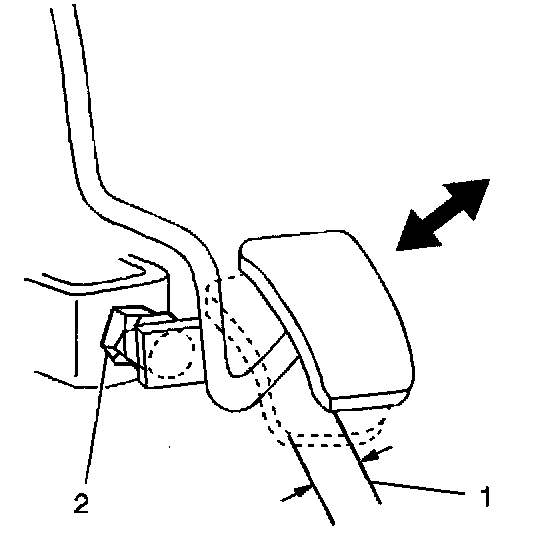

7. Adjust the height of the accelerator pedal stop (1) in order to obtain the following accelerator cable end play:
- 0.5-2.0 mm (0.02-0.07 in) with a M/T
- 0.8-1.5 mm (0.03-0.06 in) with an A/T
