Fuel Tank Cut Valve: Service and Repair

FUEL CUT-OFF VALVE REPLACEMENT

REMOVAL PROCEDURE
1. Remove the fuel tank.




2. Remove the vapor hose from the fuel cut-off valve.

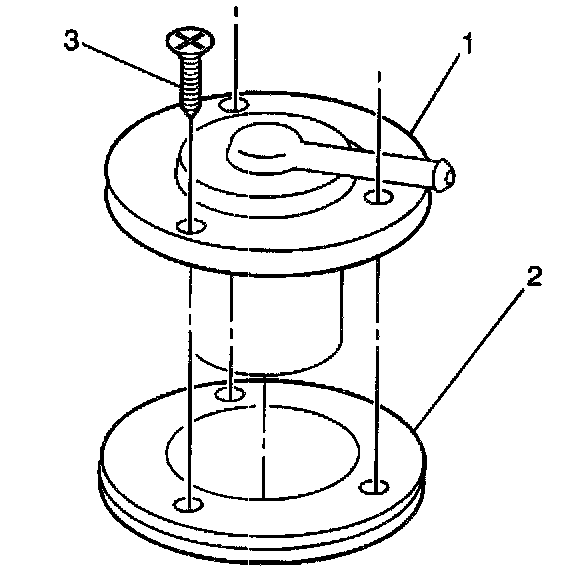

3. Remove the 3 screws (3) from the fuel cut-off valve (1).
4. Remove the fuel cut-off valve (1) and the gasket (2) from the fuel tank.

INSTALLATION PROCEDURE




1. Install the fuel cut-off valve (1) and the gasket (2) to the fuel tank.
2. Secure the fuel cut-off valve (1) to the fuel tank with the 3 screws (3).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 3.5 N.m (30 lb in).

3. Connect the vapor hose to the fuel cut-off valve.
4. Install the fuel tank.
