Accelerator Pedal: Service and Repair

ACCELERATOR CONTROLS PEDAL REPLACEMENT

REMOVAL PROCEDURE

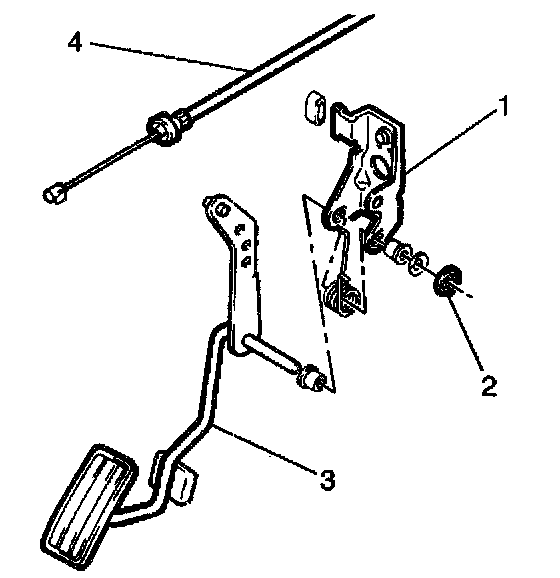

1. Disconnect the accelerator control cable (4) from the accelerator pedal (3).
2. Remove the accelerator pedal mounting bracket (1).
3. Remove the accelerator pedal push nut (2) and the accelerator pedal from the mounting bracket (1).

INSTALLATION PROCEDURE




1. Install the accelerator pedal (3) to the mounting bracket (1).

IMPORTANT: Be sure to install the spring while sliding the accelerator pedal into the mounting bracket.

2. Secure the accelerator pedal with a new accelerator pedal push nut (2).
3. Connect the accelerator control cable (4) to the accelerator pedal.
4. Inspect the accelerator pedal free play and the accelerator control cable end play. Adjust as necessary.
