EGR Tube: Service and Repair

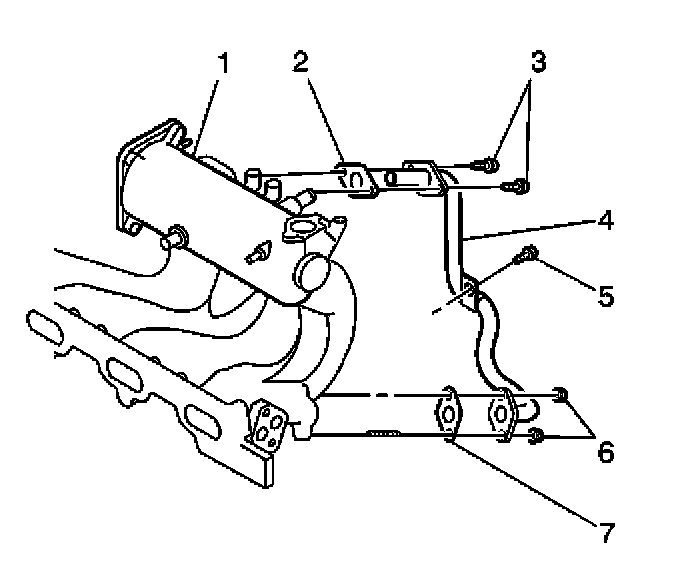

EXHAUST GAS RECIRCULATION (EGR) VALVE PIPE REPLACEMENTREMOVAL PROCEDURE
1. Allow the engine to cool down.
2. Remove the fasteners (3).
3. Remove the fastener (5) at the middle of the EGR pipe (4).
4. Remove the 2 fasteners (6) near the EGR valve.
5. Remove the upper gasket (2) and the lower gasket (7).
6. Remove the EGR pipe (4).
7. Clean any remaining gasket material from both contact surfaces.

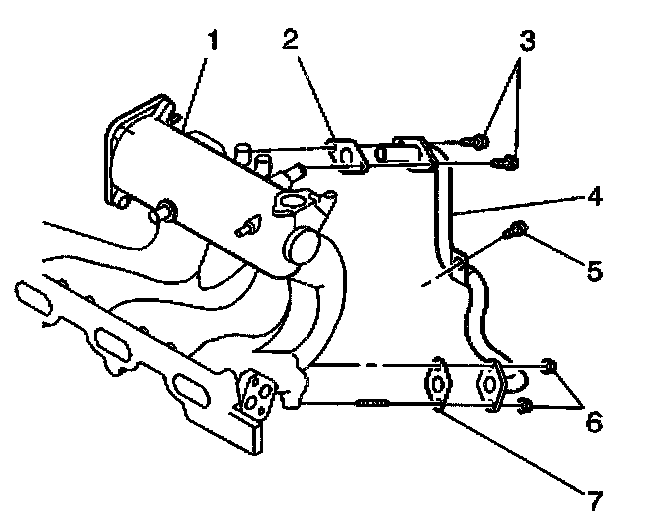

INSTALLATION PROCEDURE
1. Install the EGR pipe (4) with a new upper gasket (2) and a new lower gasket (7) to the intake manifold.
2. Secure the EGR pipe (4) to the upper intake manifold with the 2 fasteners (3).
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the fasteners to 15 N.m (11 lb ft).
3. Secure the EGR pipe (4) to the lower intake manifold with the 2 fasteners (6).
Tighten
Tighten the fastener to 10 N.m (89 lb in).
4. Install the fastener (5) to the EGR pipe bracket.
Tighten
Tighten the fastener to 10 N.m (89 lb in).
5. Start the engine and check for exhaust leaks.
6. Repair as necessary.
