Scan Tool Output Controls

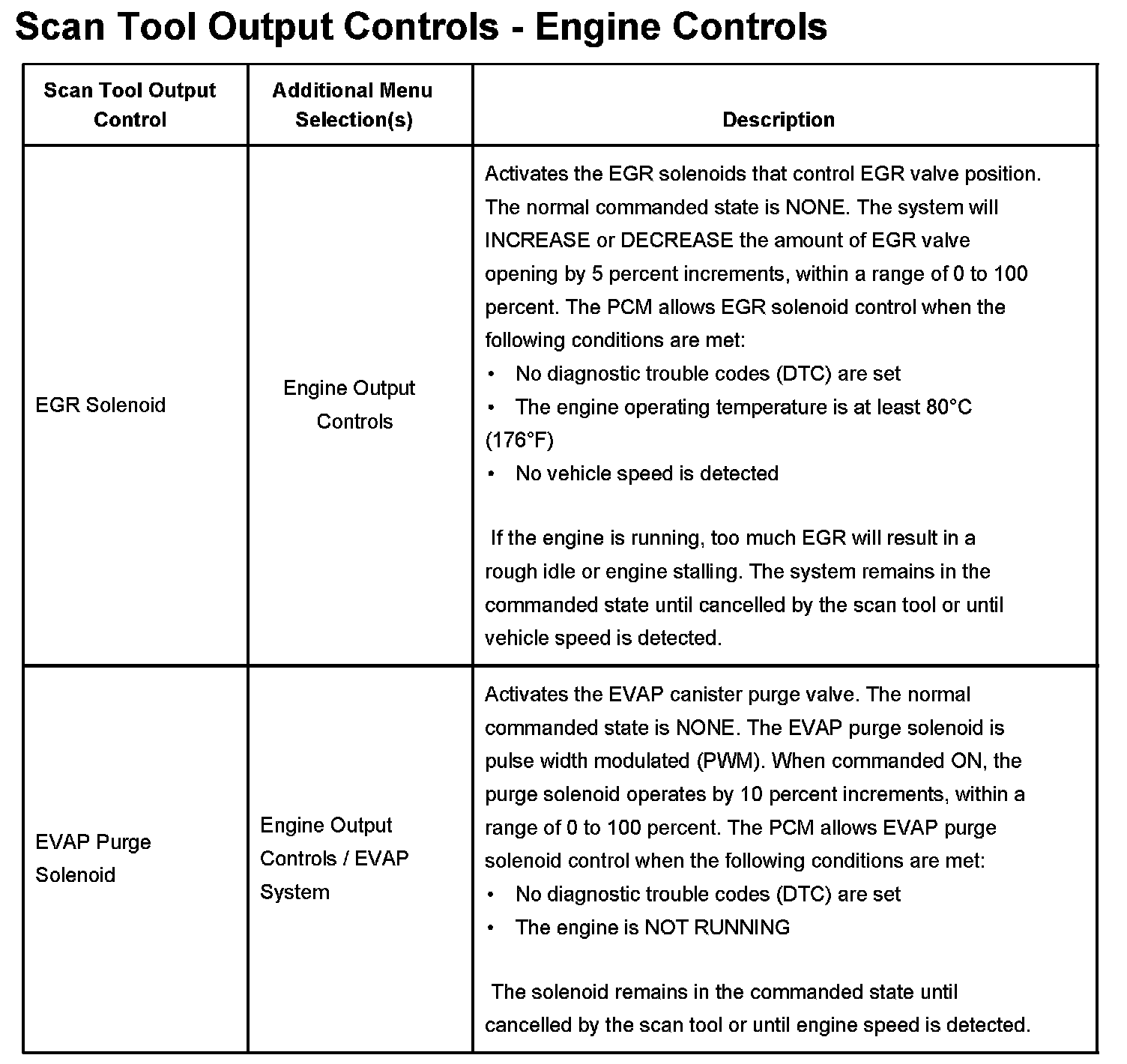

Scan Tool Output Controls - Engine Controls Part 1:

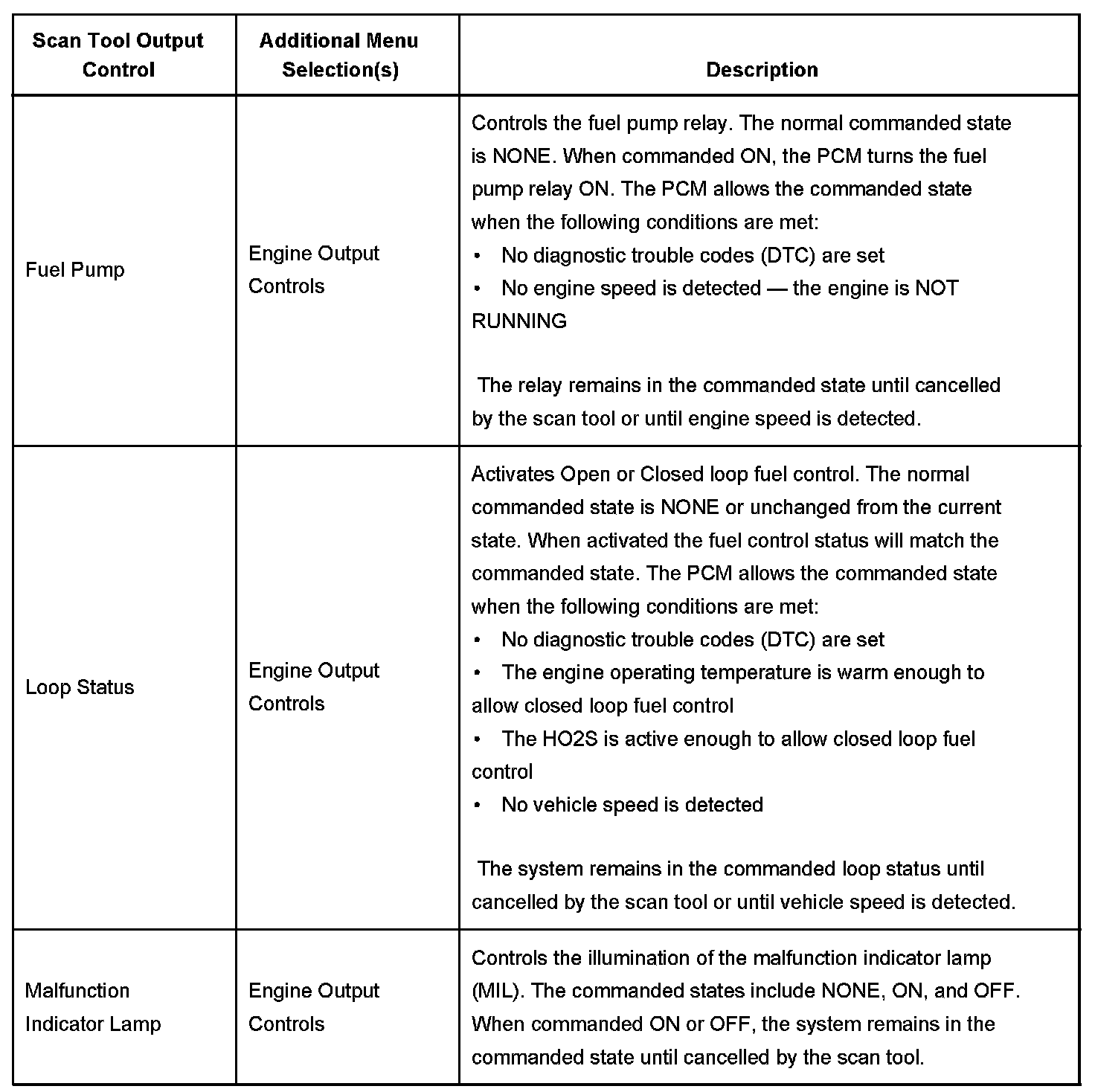

Scan Tool Output Controls - Engine Controls Part 2:

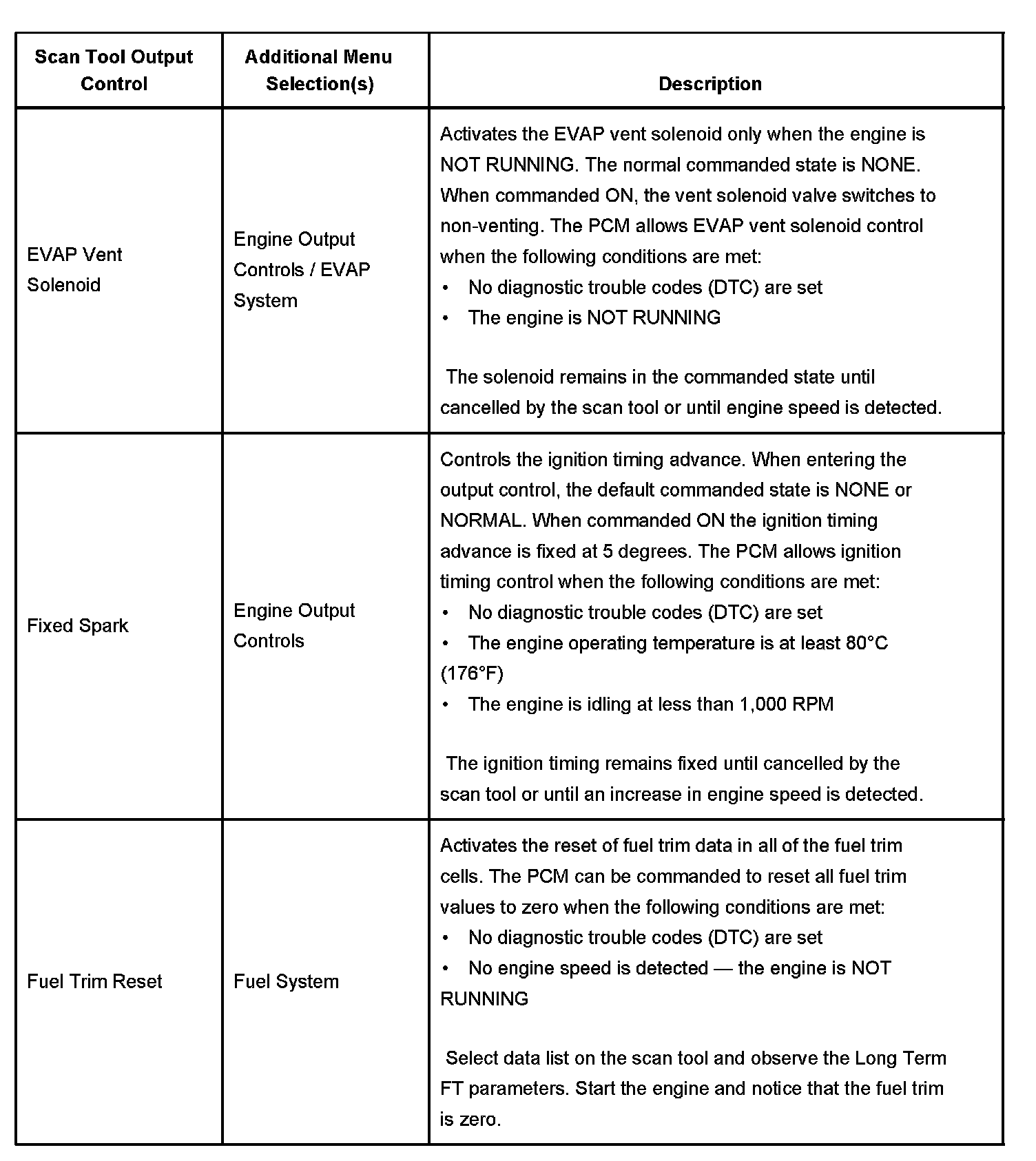

Scan Tool Output Controls - Engine Controls Part 3:

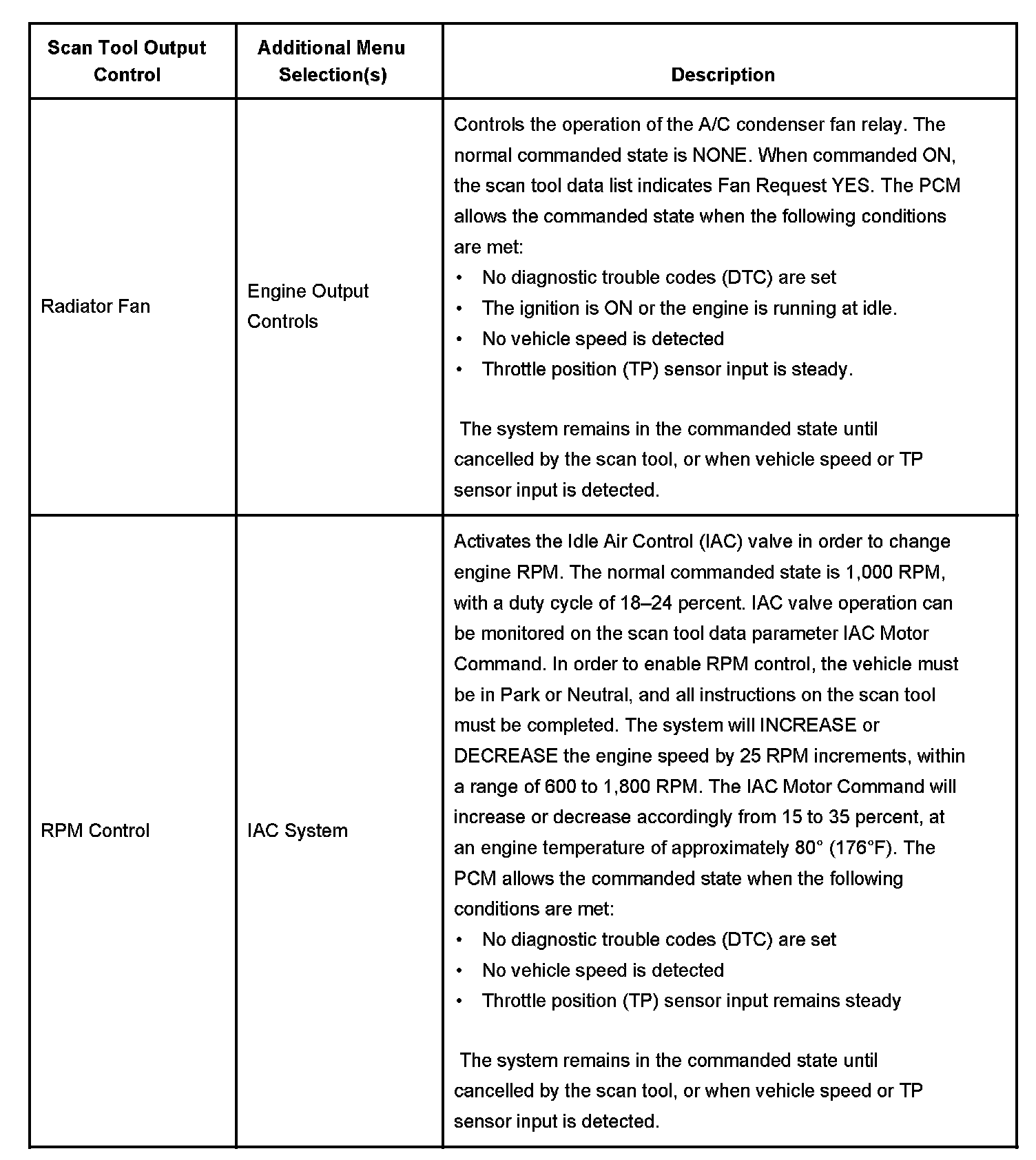

Scan Tool Output Controls - Engine Controls Part 4:
