Home >> Chevy Truck >> 2004 >> Tracker 4WD L4-2.0L VIN C >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Specifications >> Mechanical Specifications

Mechanical Specifications

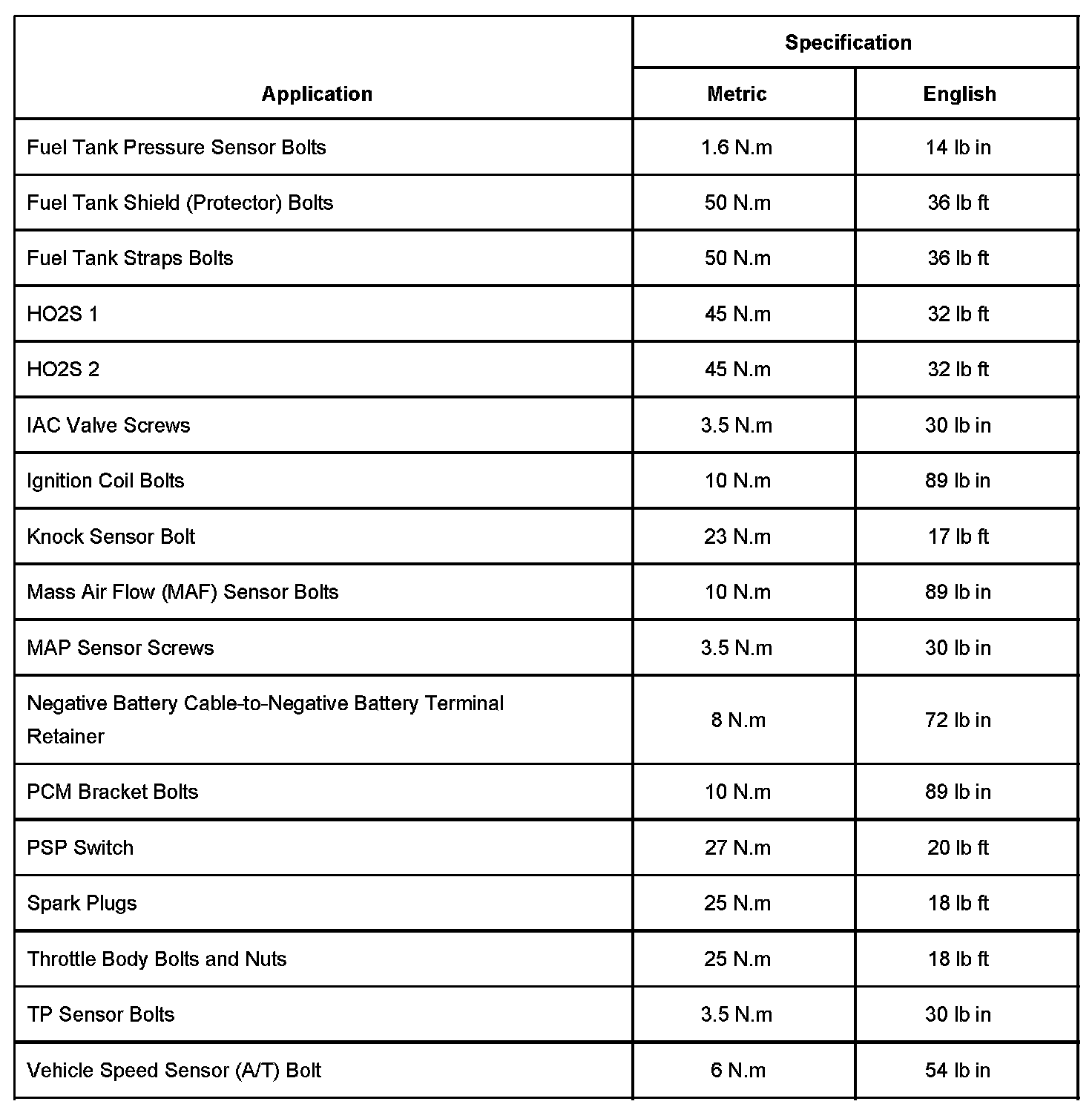

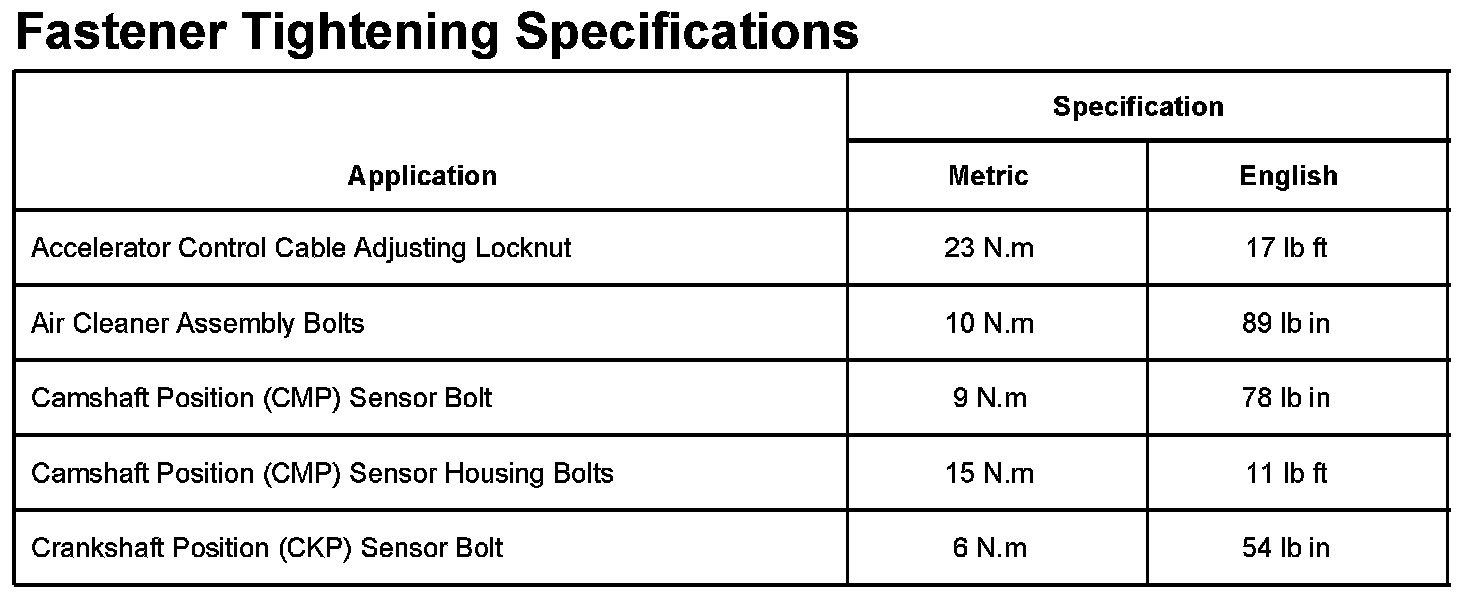

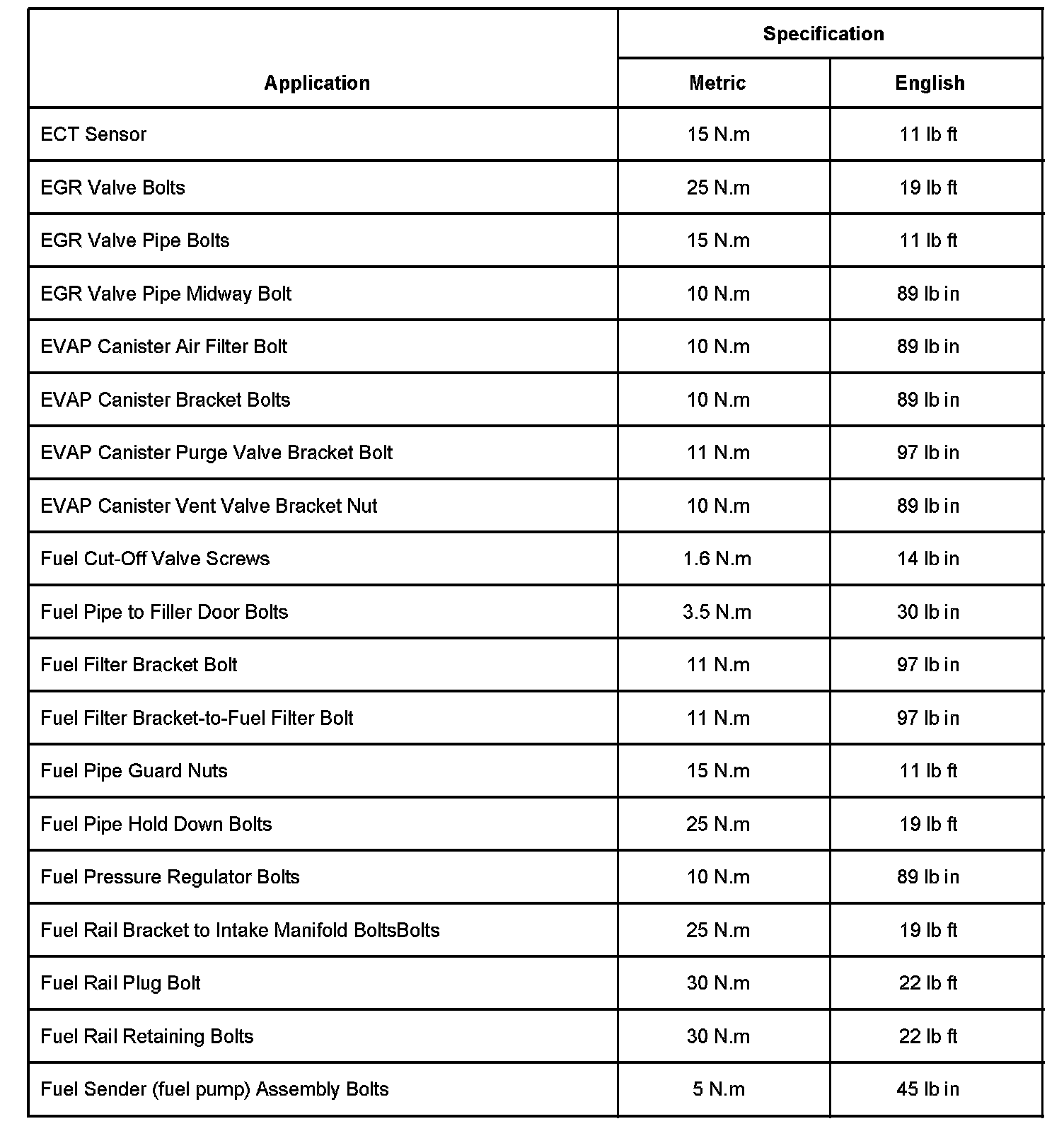

Fastener Tightening Specifications Part 1:



Fastener Tightening Specifications Part 2:



Fastener Tightening Specifications Part 3:
