Ashtray Lamp Bulb Replacement

ASHTRAY LAMP BULB REPLACEMENT

REMOVAL PROCEDURE




1. Remove the ashtray and guide.
2. Remove the screw (2) that retains the IP ashtray lamp housing.

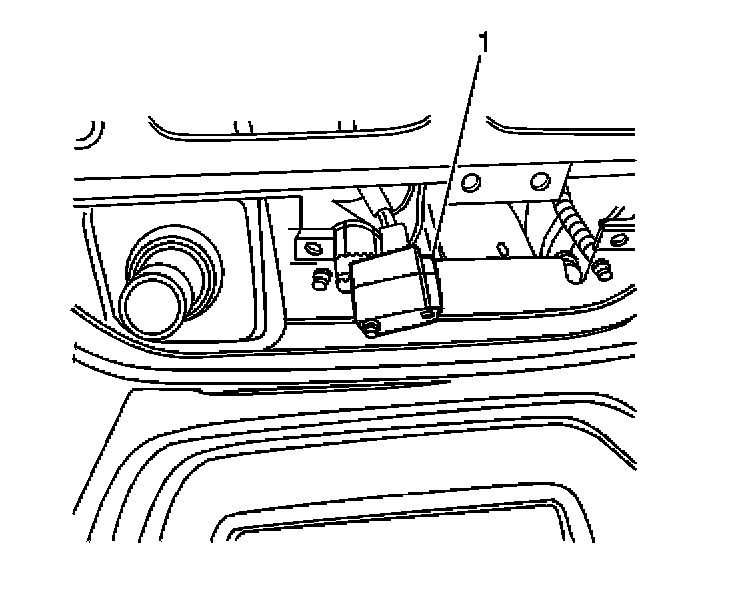

3. Position the ashtray lamp housing (1) as necessary in order to gain access to the ashtray lamp bulb.
4. Remove the ashtray lamp bulb from the housing (1).

INSTALLATION PROCEDURE

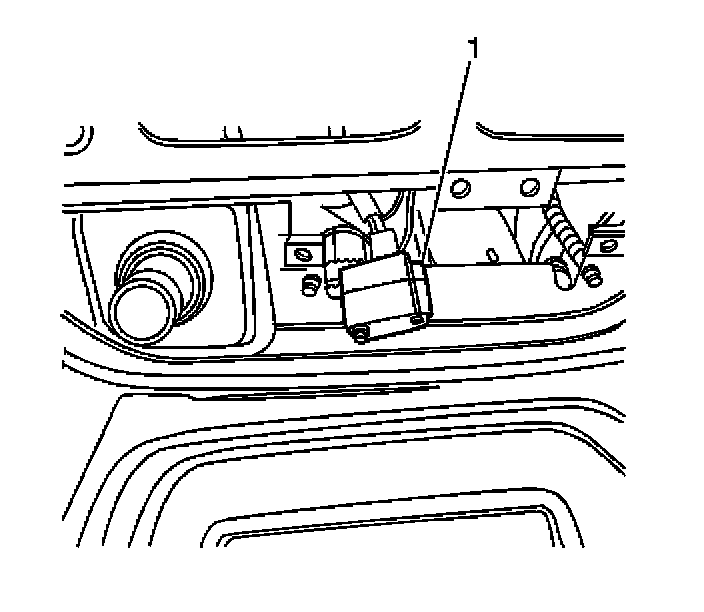

1. Install the ashtray lamp bulb to the ashtray lamp housing (1).




2. Install the ashtray lamp housing to the instrument panel. Secure the housing with the screw (2).
3. Install the ashtray and guide.
