Home >> Chevy Truck >> 2004 >> Tracker 4WD L4-2.0L VIN C >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Gages Inoperative - All

Gages Inoperative - All

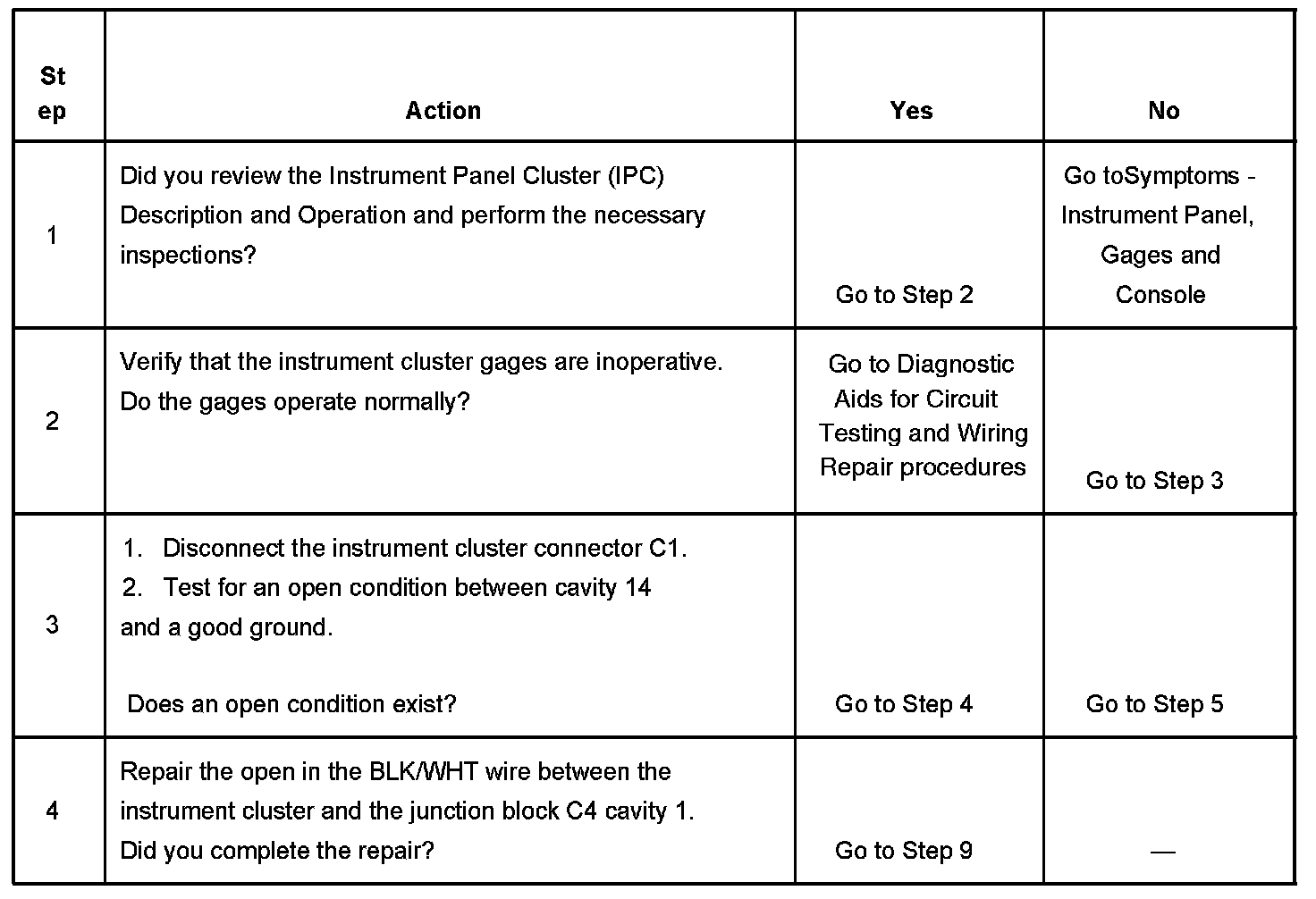

Steps 1 - 4:

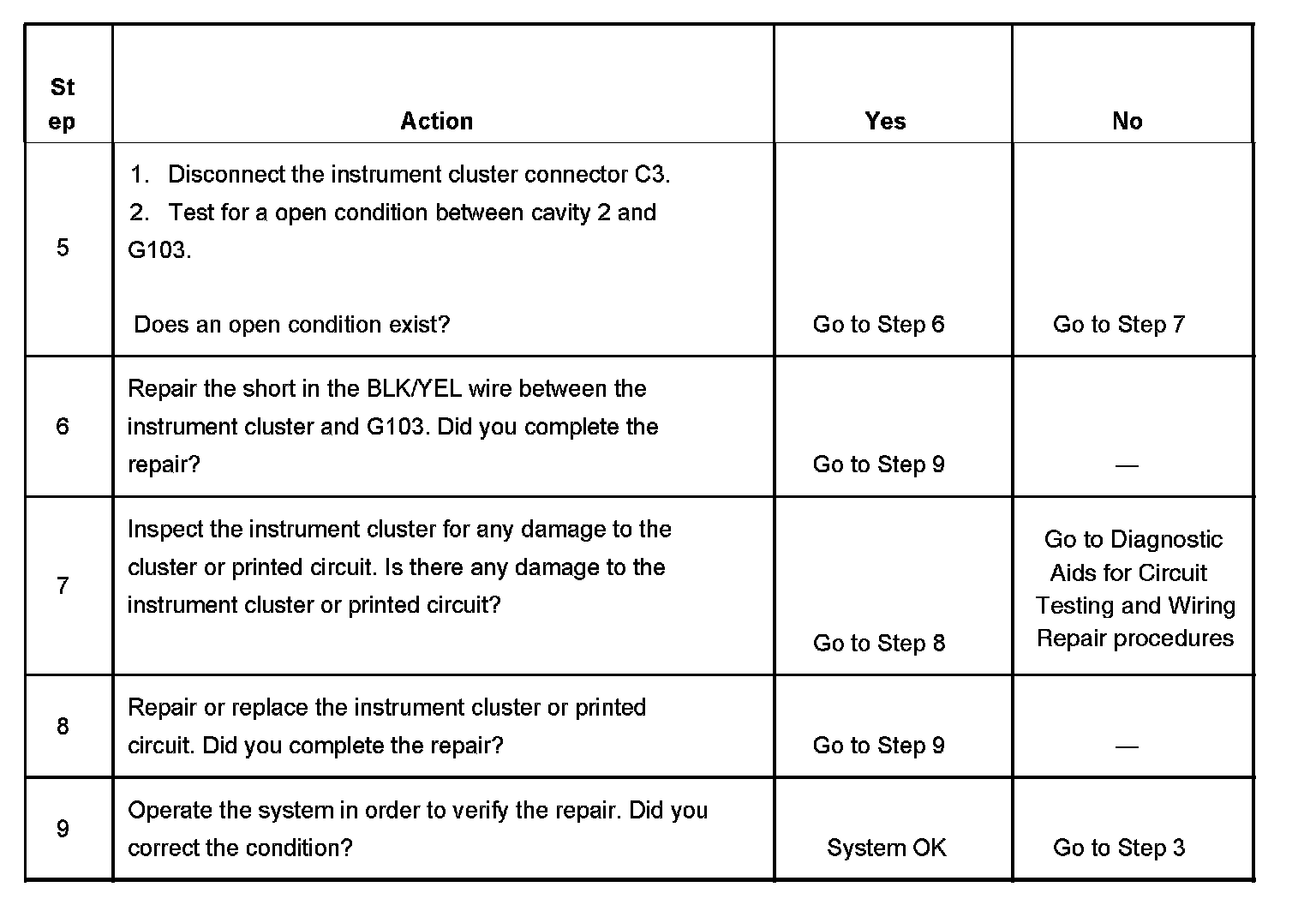

Steps 5 - 9:
