Instrument Panel Cluster (IPC) - Lens Replacement

INSTRUMENT PANEL CLUSTER (IPC) LENS REPLACEMENT

REMOVAL PROCEDURE




1. Remove the instrument cluster.

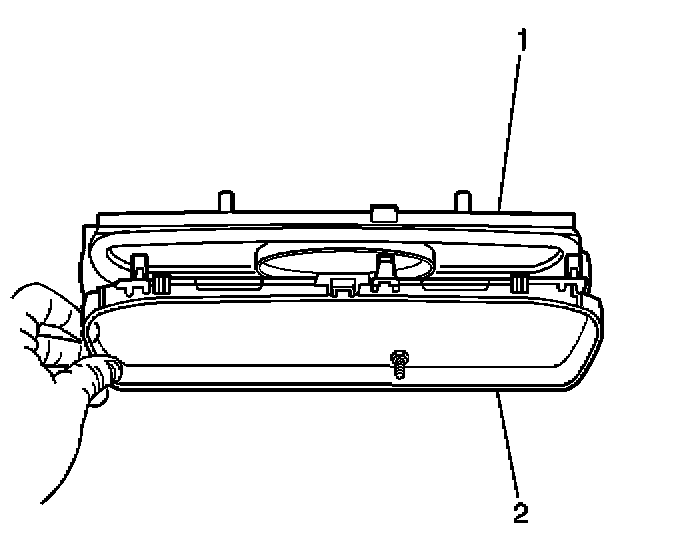

2. Release the 6 plastic clear tabs which secure the instrument cluster lens (2) to the instrument cluster bezel (1).

INSTALLATION PROCEDURE




1. Install the instrument cluster lens (2) to the instrument cluster bezel (1) by pressing around the lens until the tabs snap into place.
2. Install the instrument cluster.
