Instrument Panel Cluster (IPC) - Lamp Replacement

INSTRUMENT CLUSTER LAMP REPLACEMENT

REMOVAL PROCEDURE




1. Remove the instrument cluster.

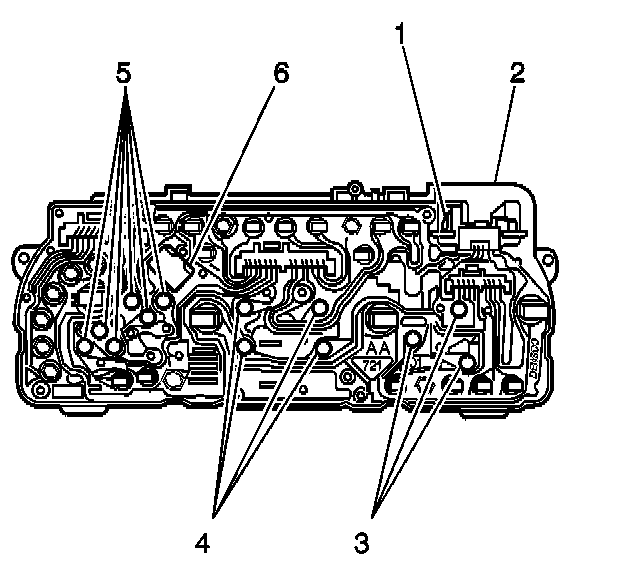

2. Remove the instrument cluster bulb from the instrument cluster (2) by turning in a counterclockwise direction.

INSTALLATION PROCEDURE




1. Install the instrument cluster bulb to the instrument cluster (2) by turning in a clockwise direction.
2. Install the instrument cluster.
