ABS Lamp Driver: Service and Repair

Lamp Driver Module Replacement

Removal Procedure

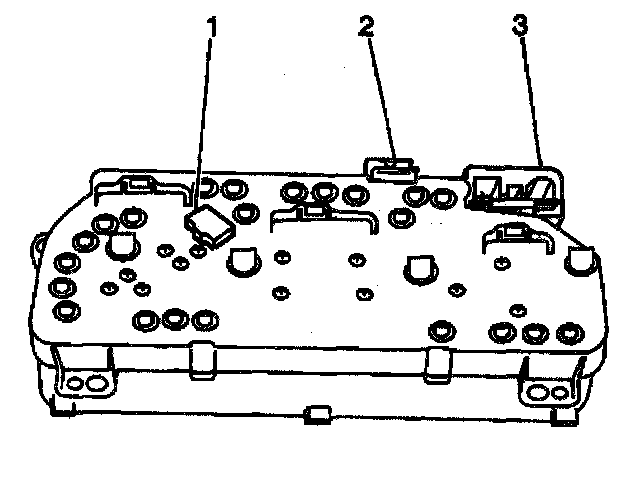

1. Remove the Instrument Cluster Assembly (2).
2. Remove the Lamp Driver Module (LDM) (1) from the printed circuit.

Installation Procedure.

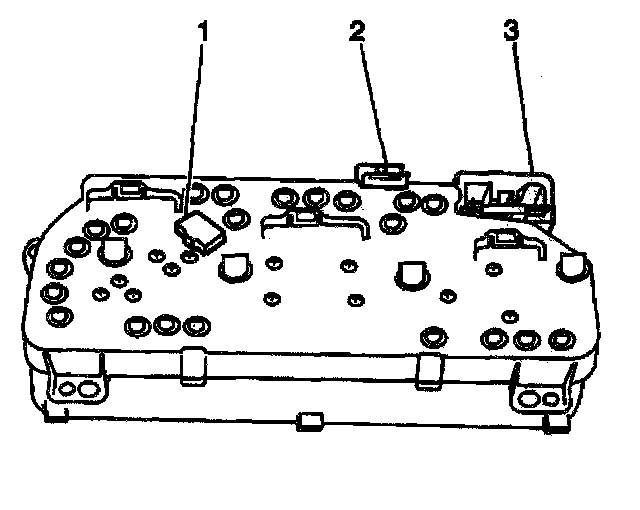

1. Install the LDM (1) to the printed circuit.
2. Install the Instrument Cluster Assembly (2).
3. Perform Diagnostic System Check - ABS.
