Compressor Clutch Does Not Engage

HVAC COMPRESSOR CLUTCH DOES NOT ENGAGE

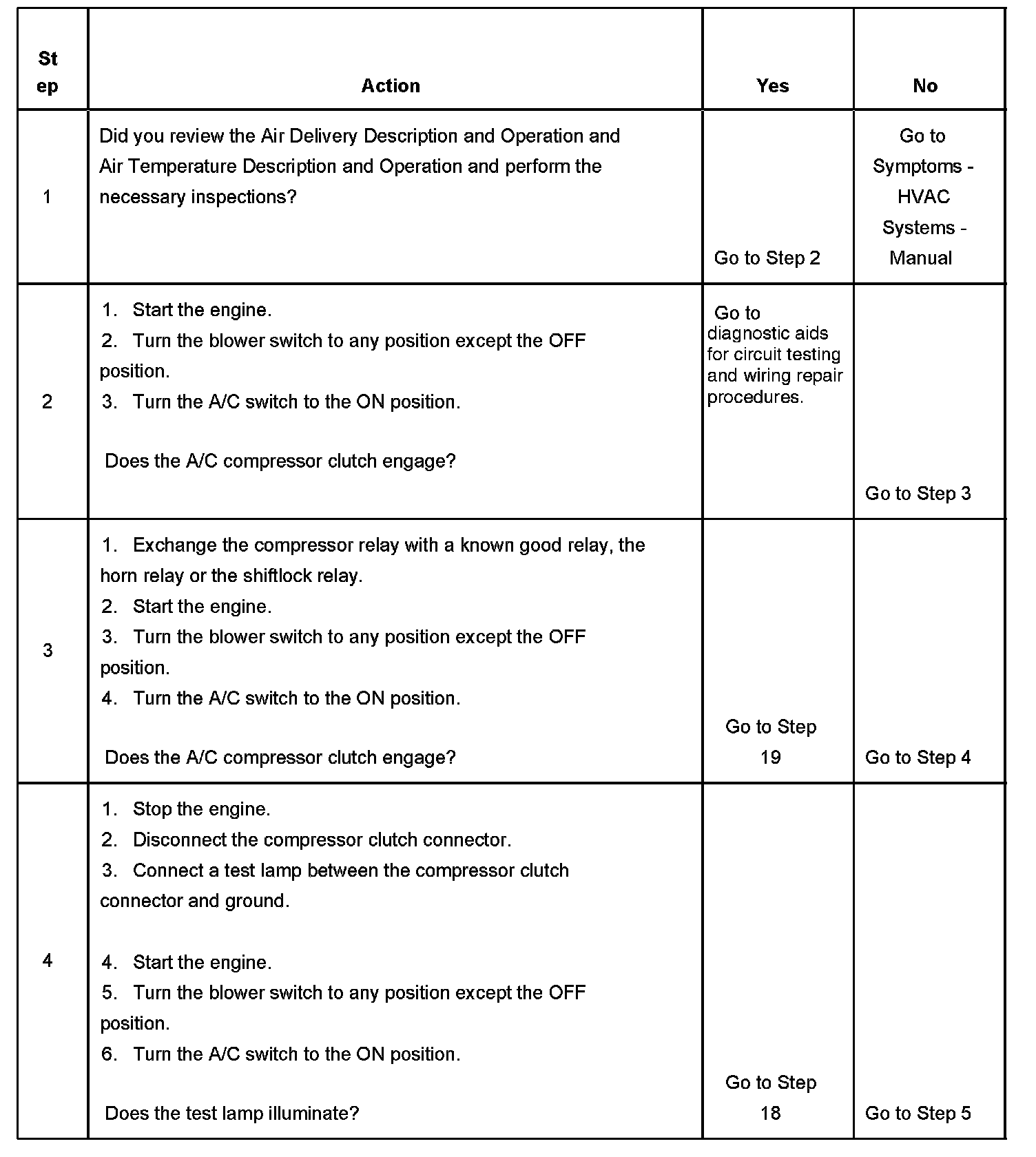

Steps 1-4:

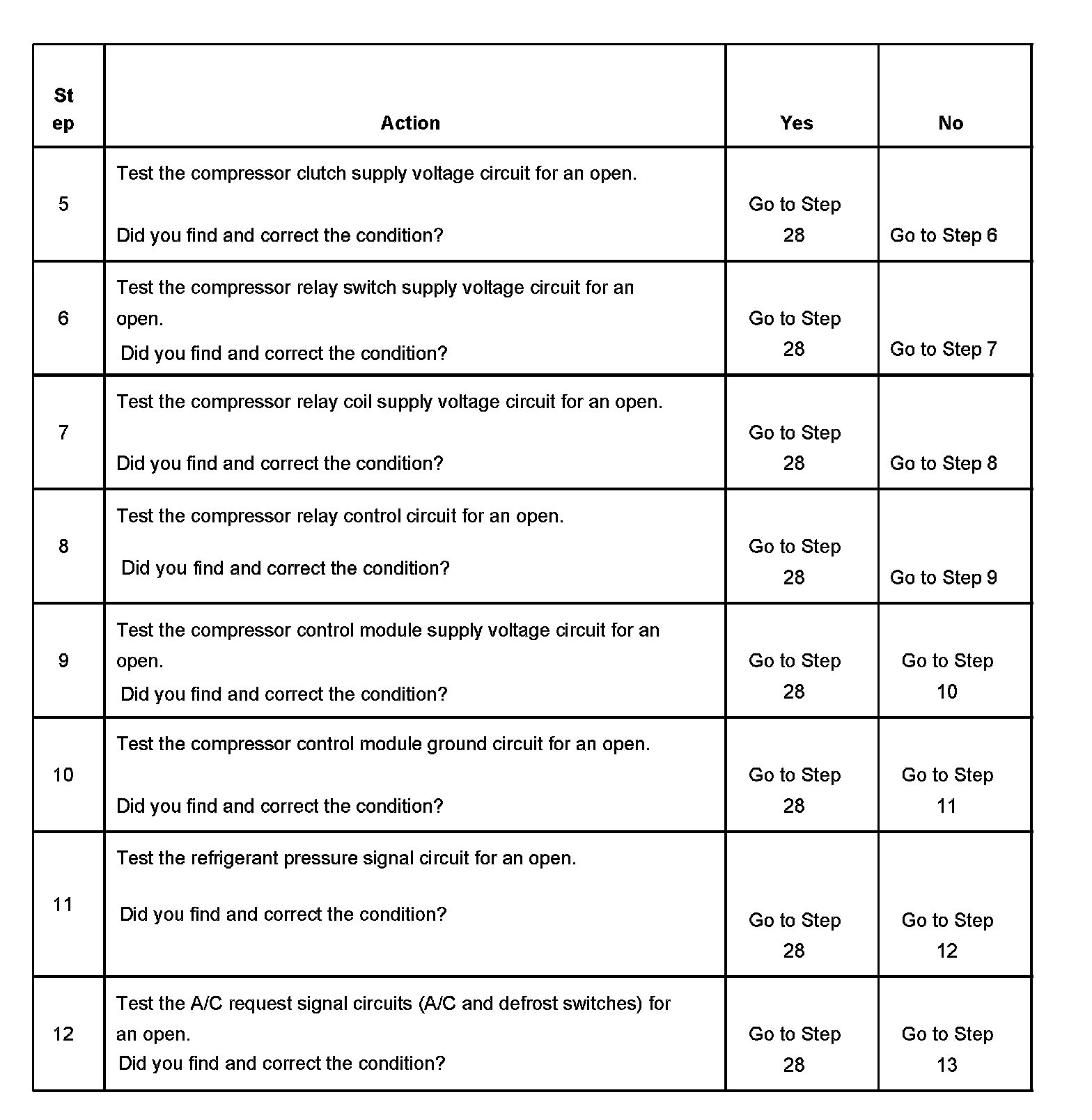

Steps 5-12:

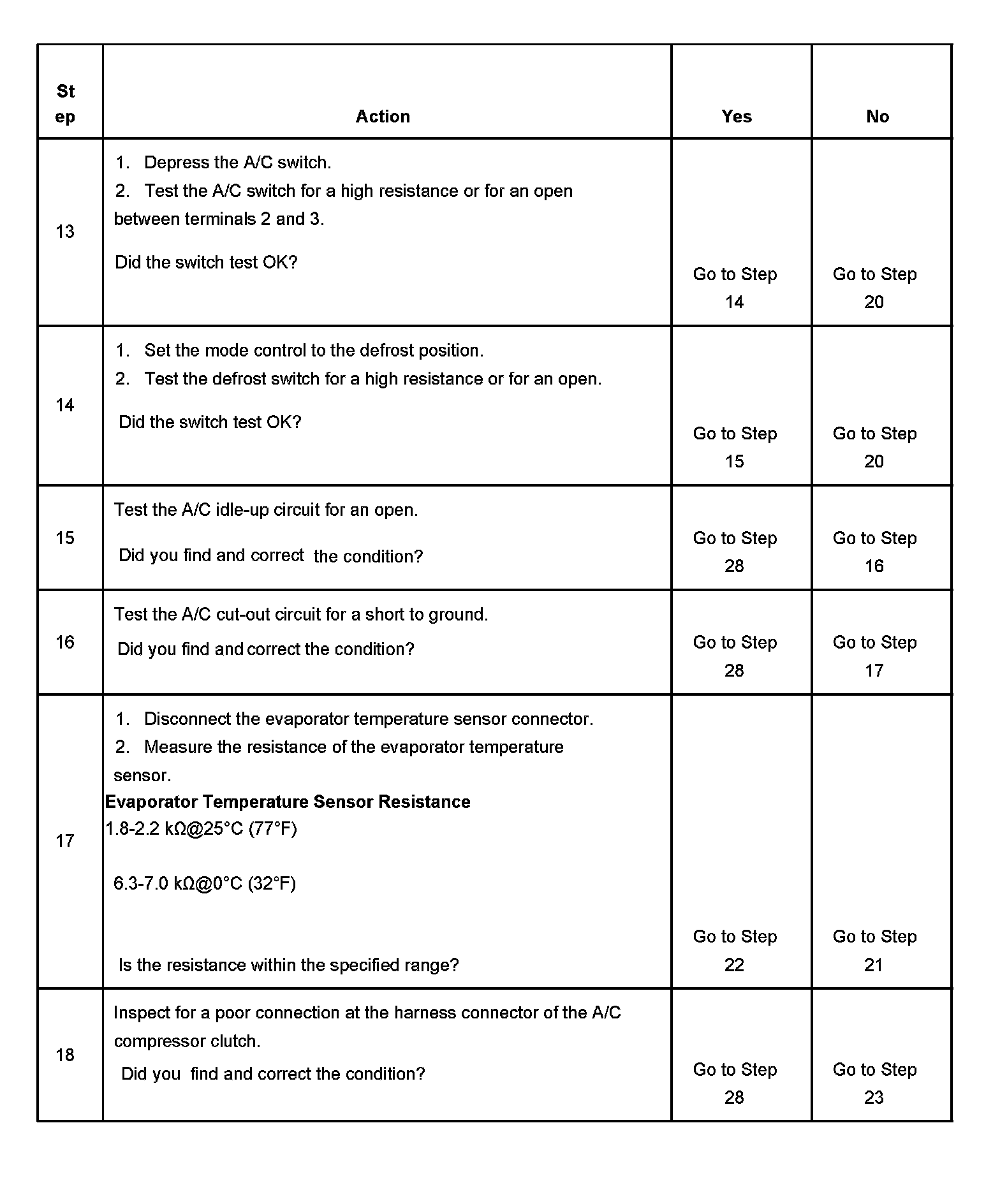

Steps 13-18:

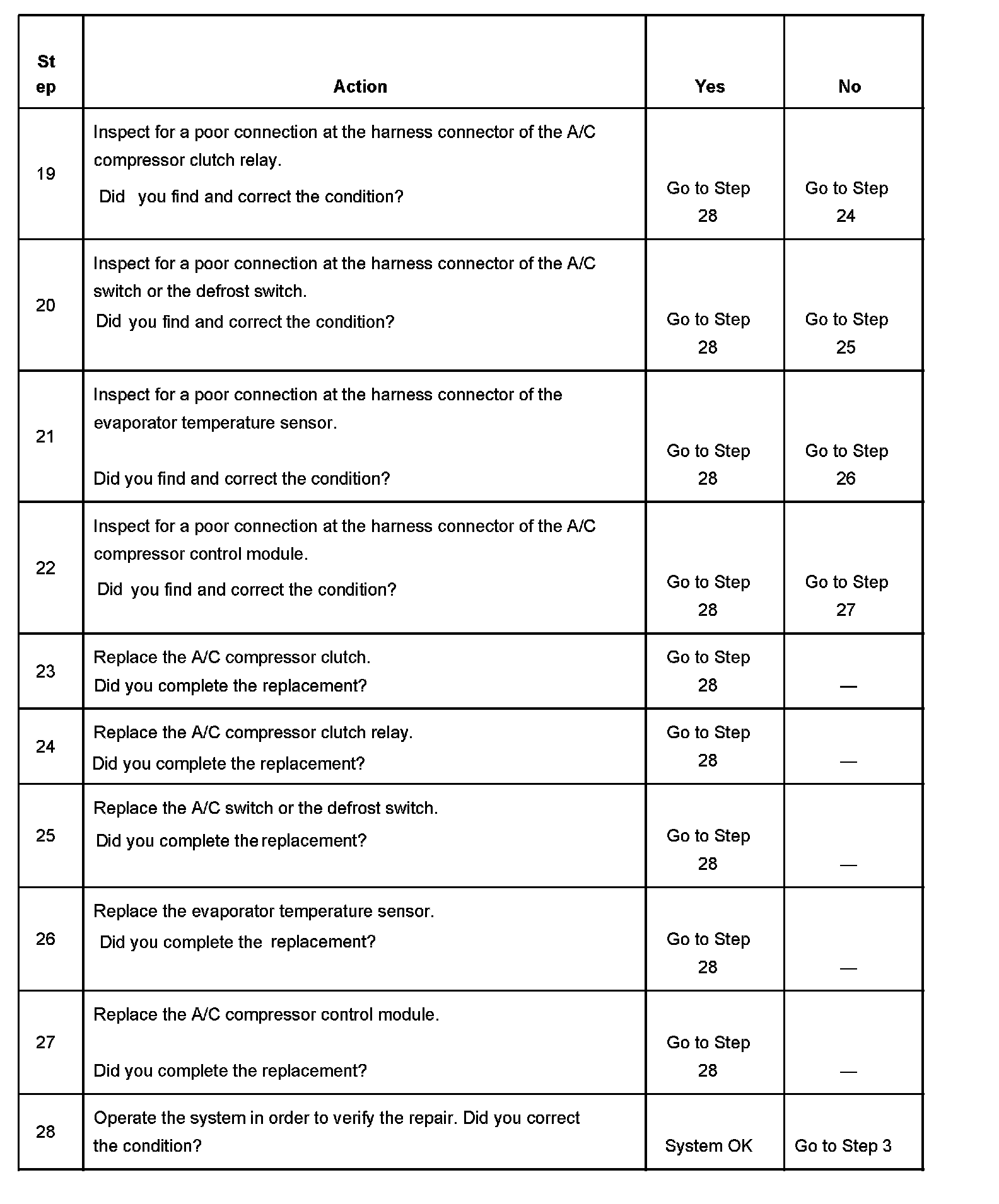

Steps 19-28:

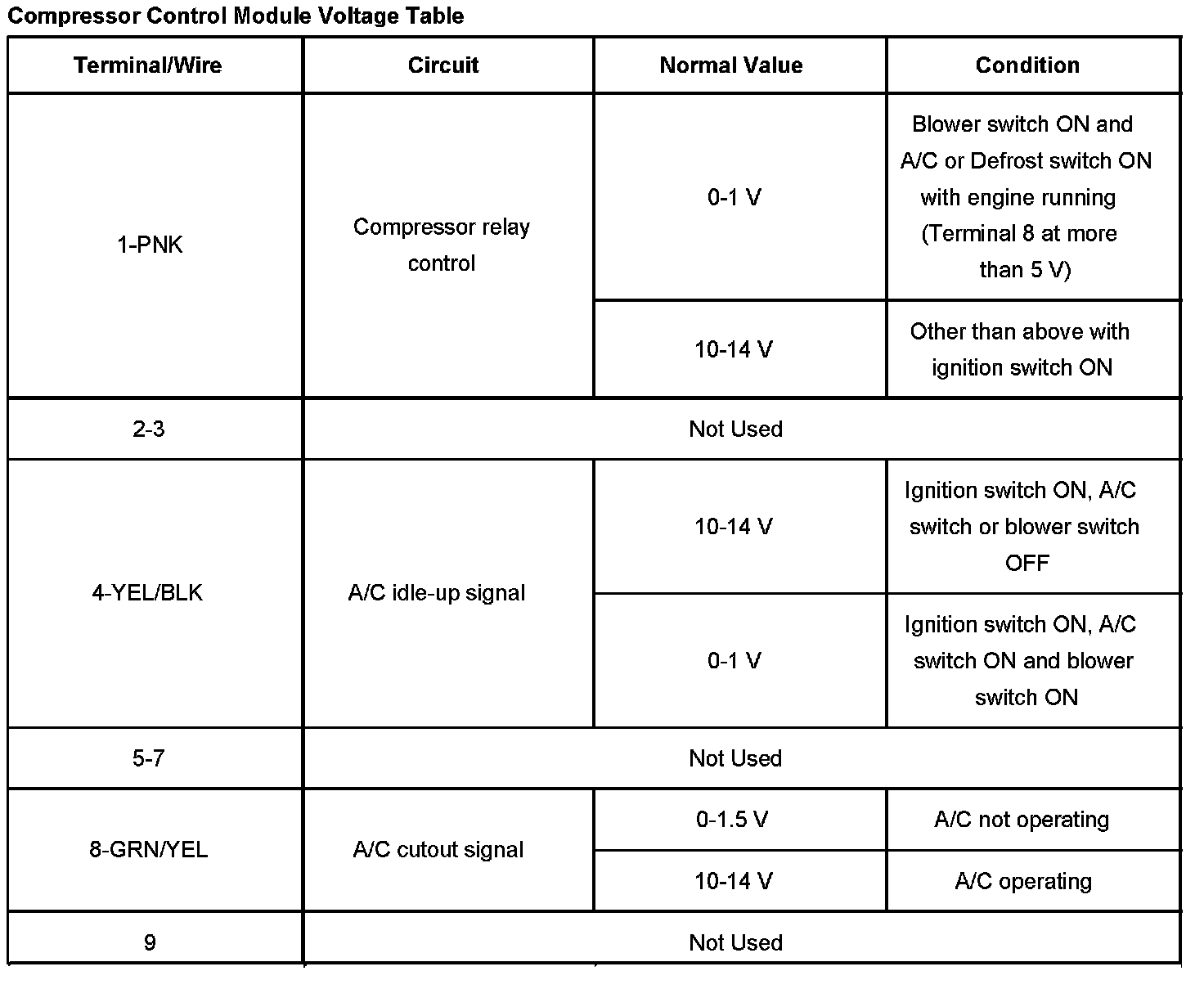

Compressor Control Module Voltage Table Part 1:

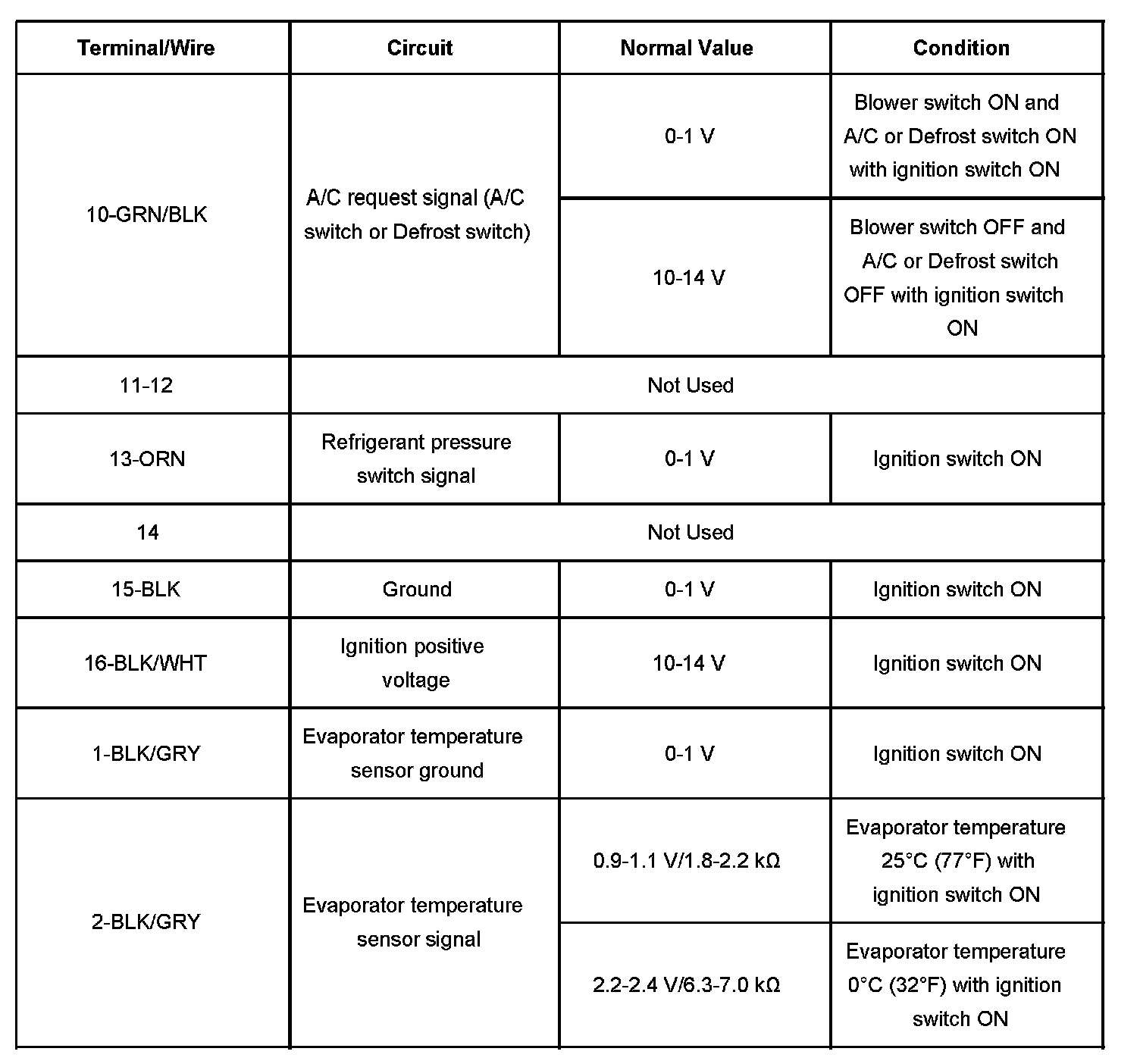

Compressor Control Module Voltage Table Part 2:
