Home >> Chevy Truck >> 2004 >> Tracker 4WD L4-2.0L VIN C >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptoms - HVAC System - Manual >> Blower Motor Malfunction

Blower Motor Malfunction

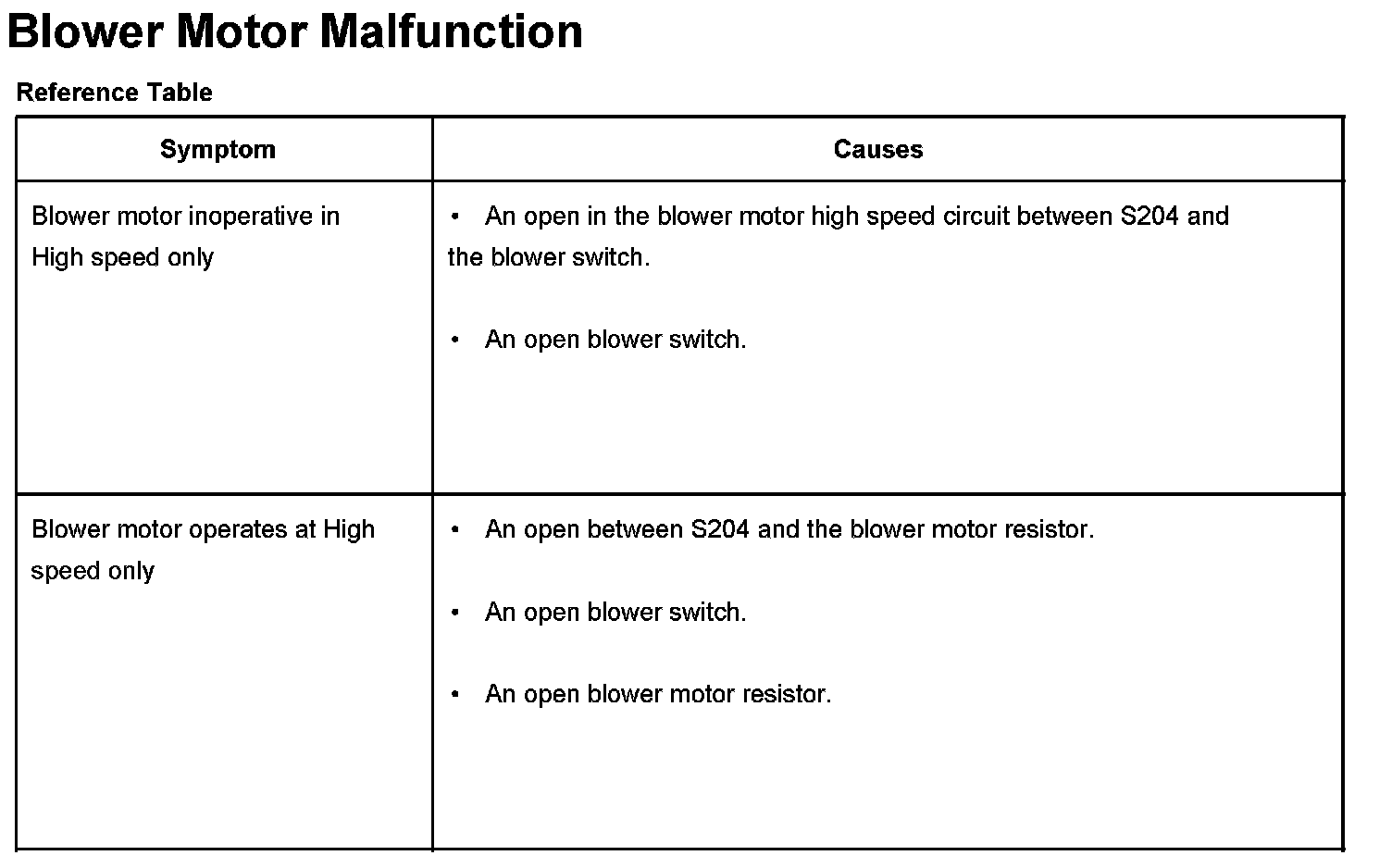

Blower Motor Malfunction:

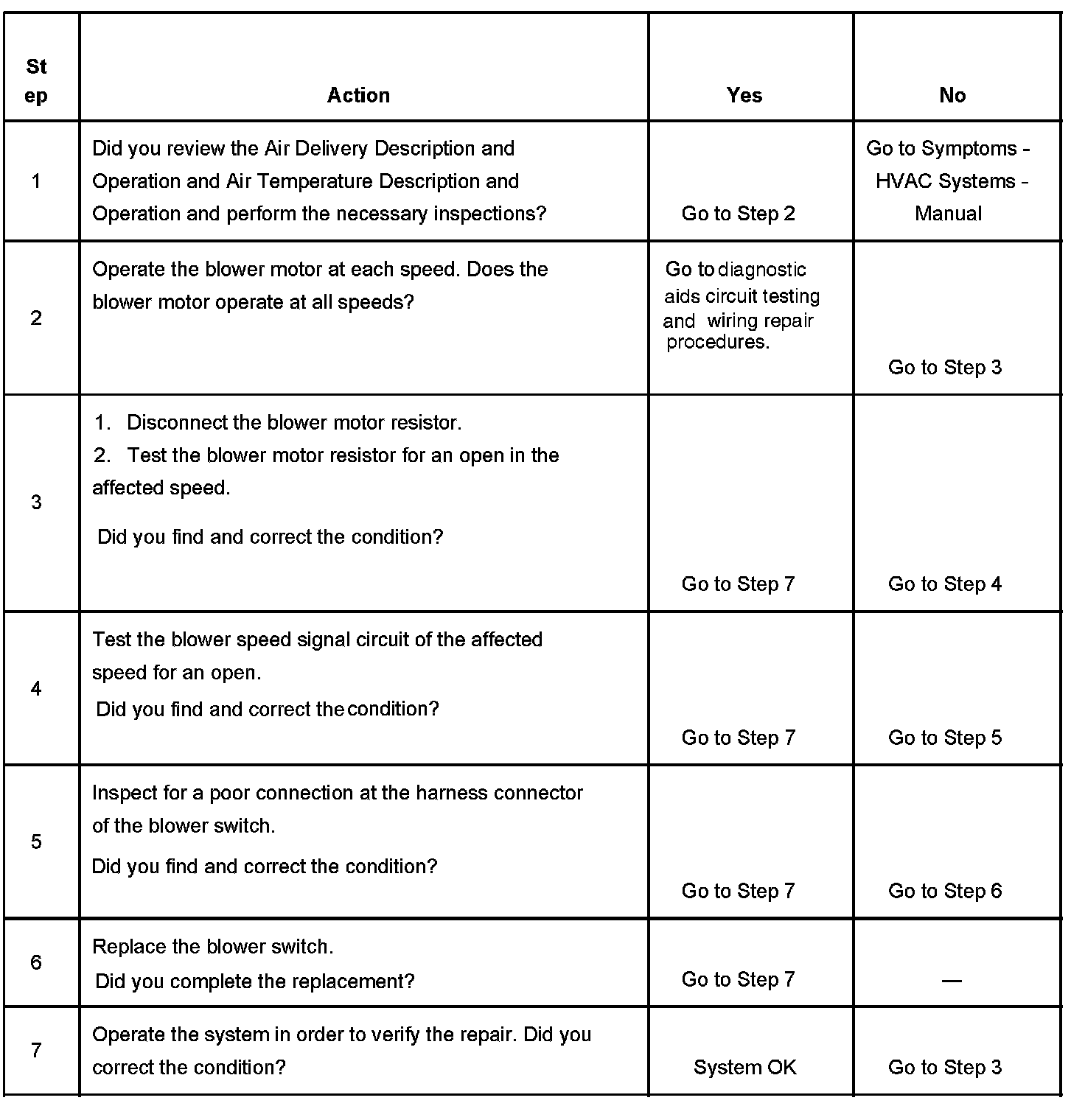

Steps 1-7:
