Cooling Insufficient - TXV A/C System
Cooling Insufficient - TXV A/C System

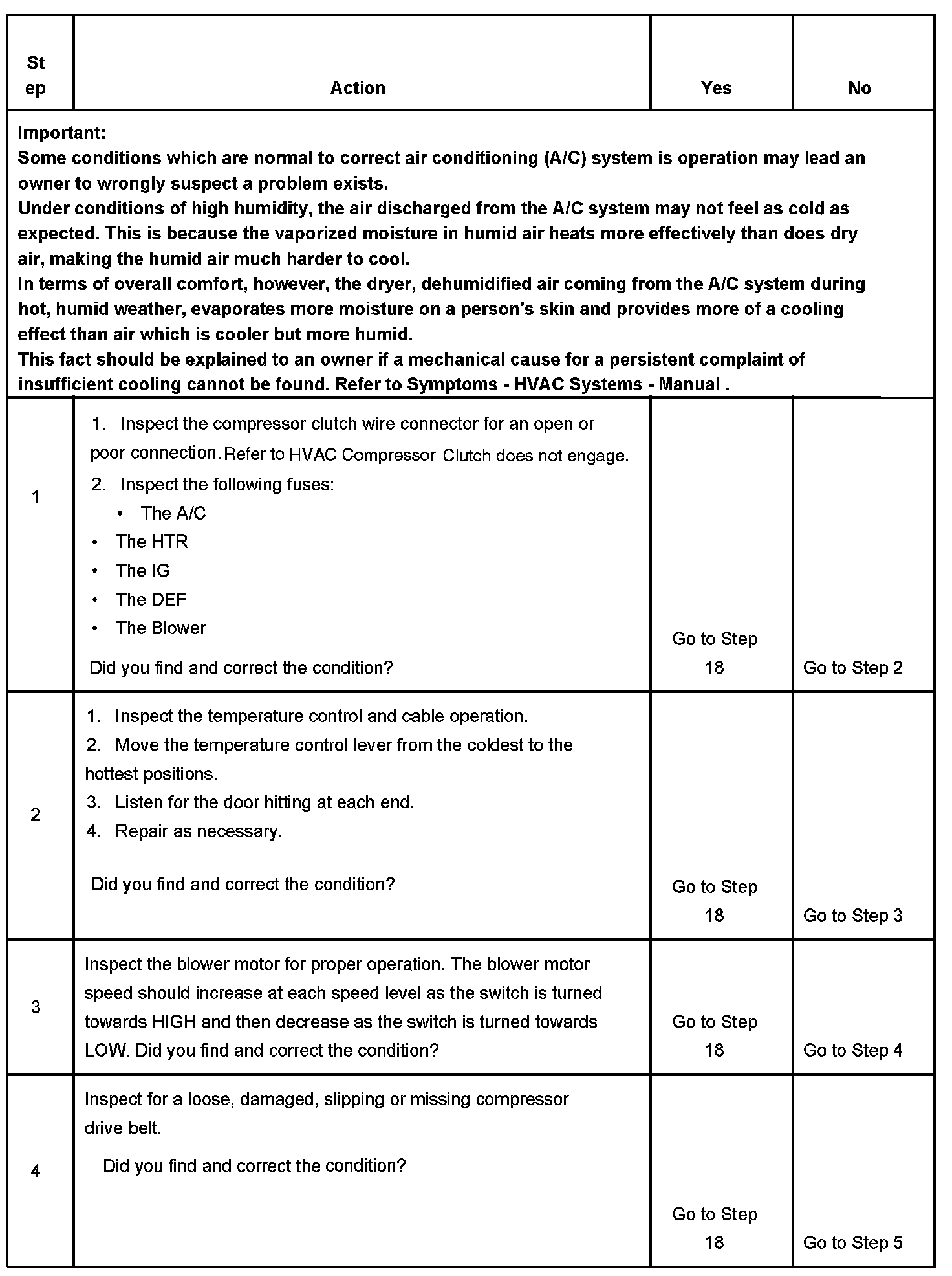

Steps 1-4:

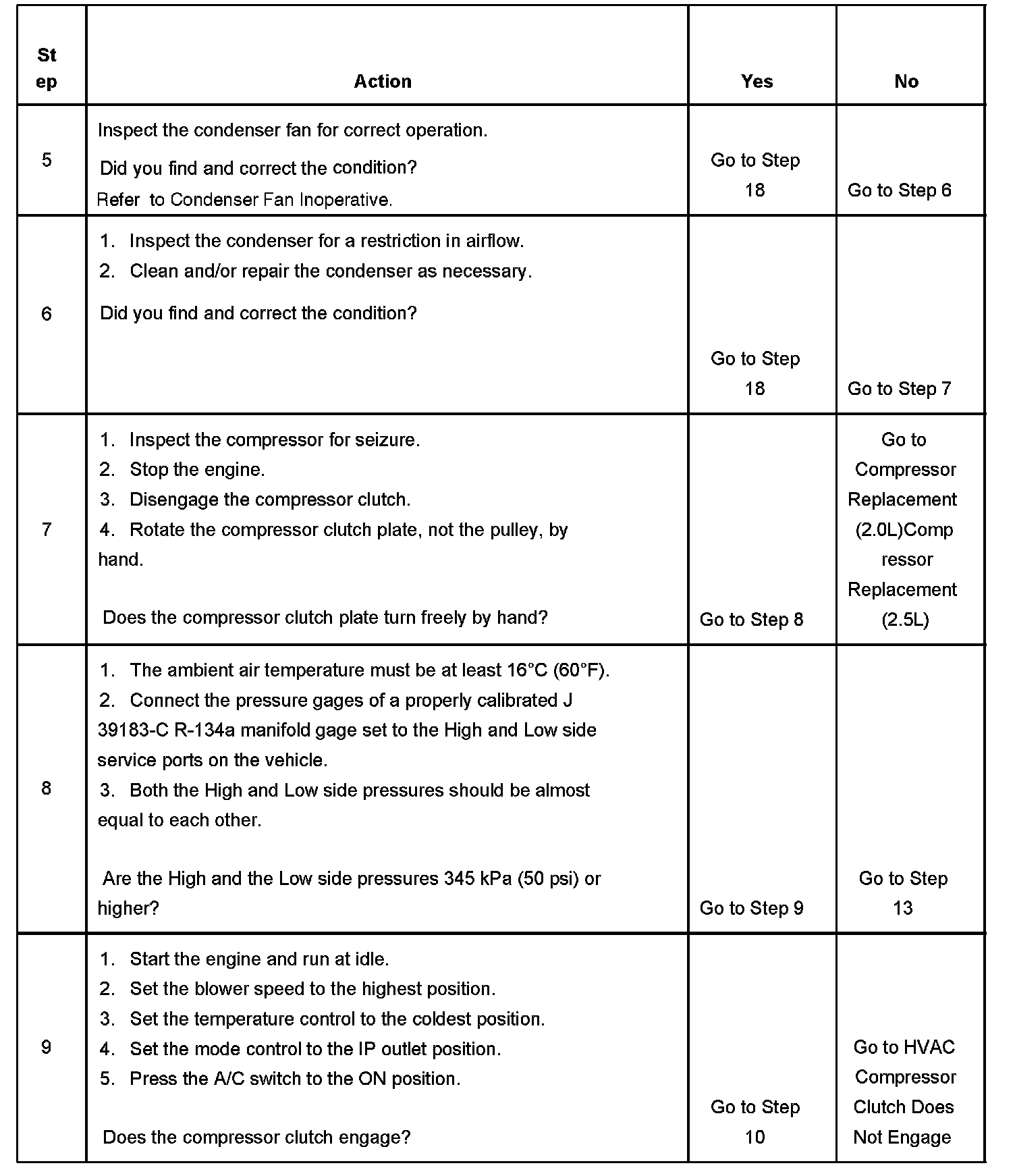

Steps 5-9:

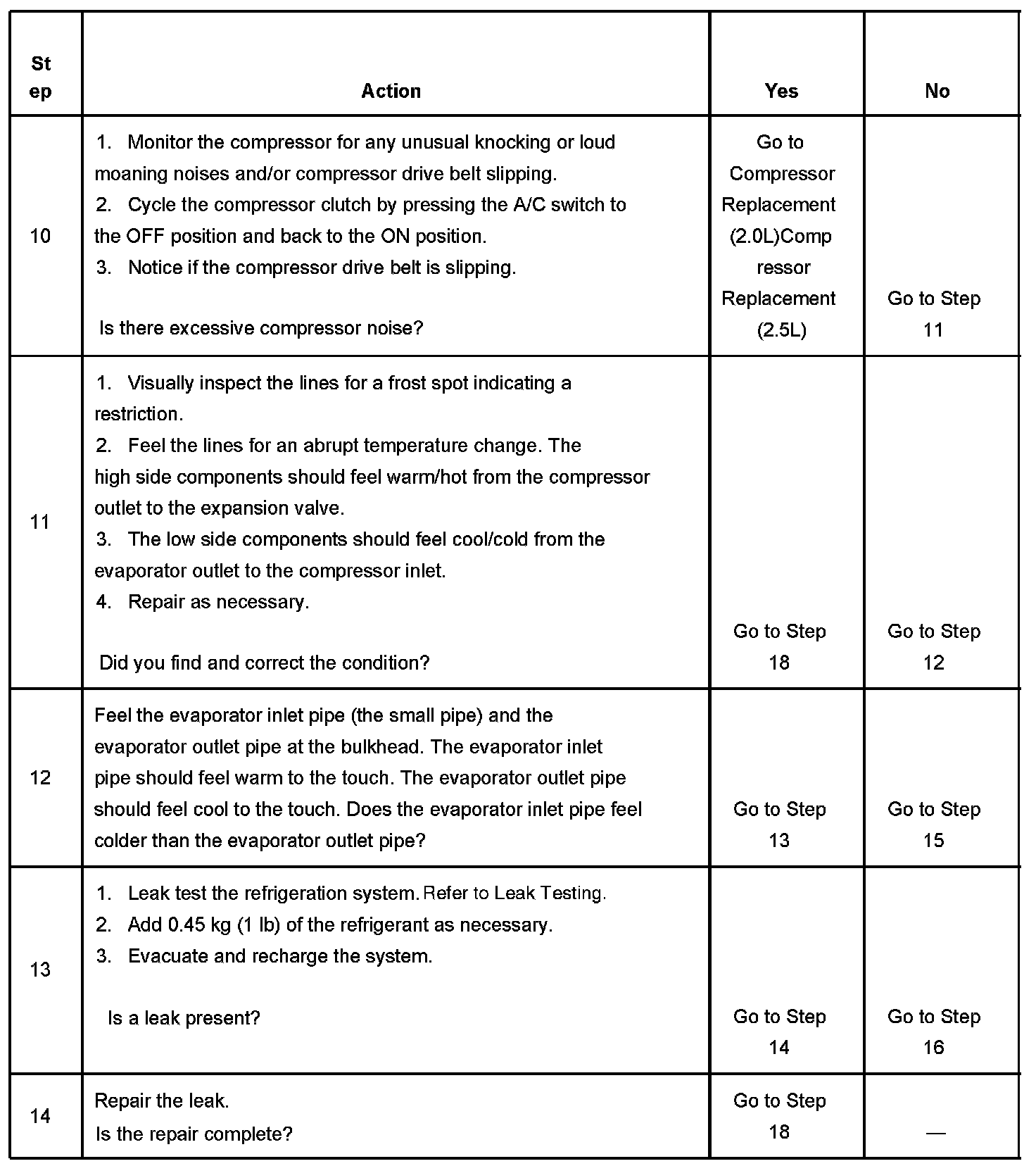

Steps 10-14:

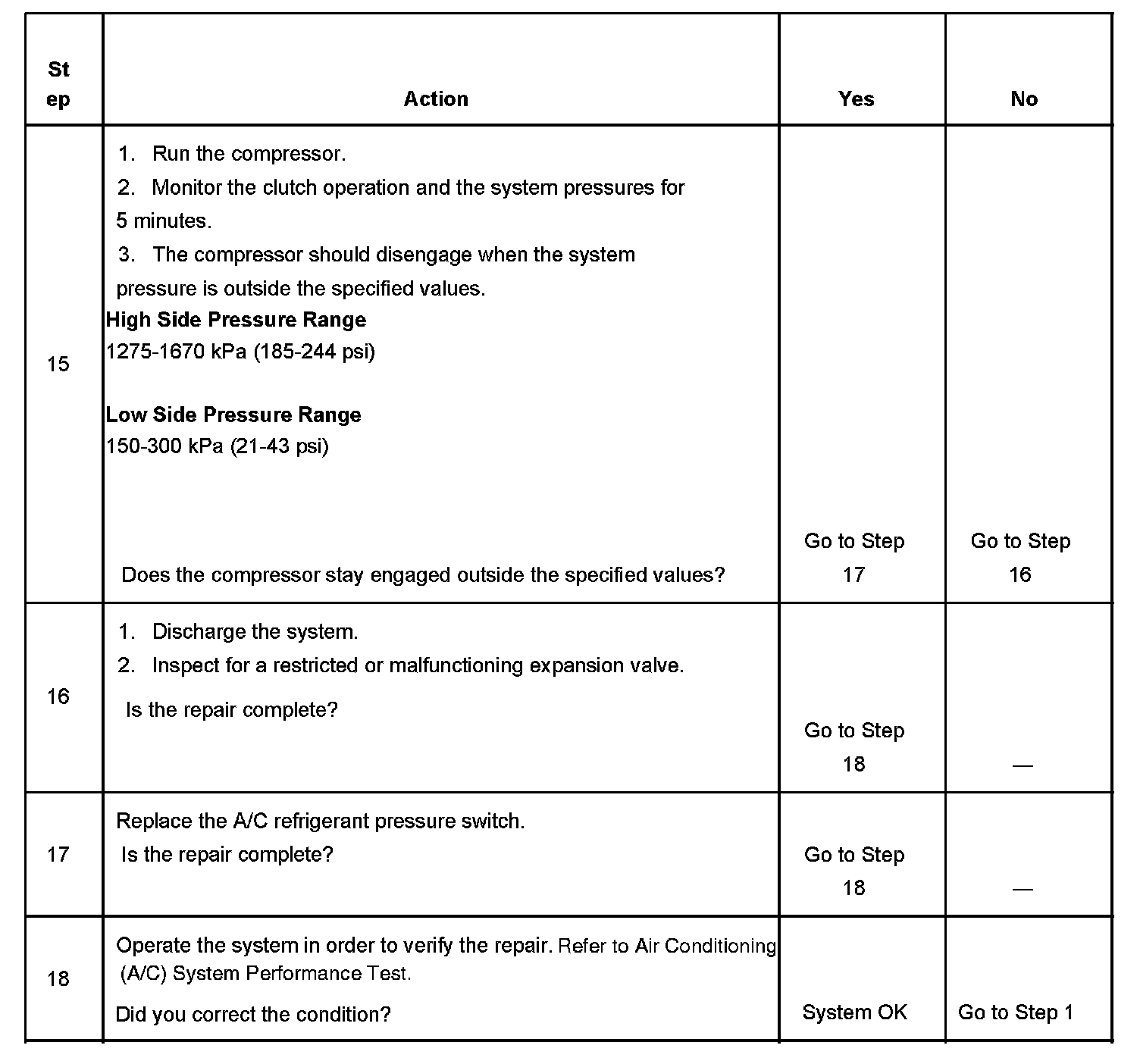

Steps 15-18:
