System Diagnosis - Reference Table - TXV A/C System

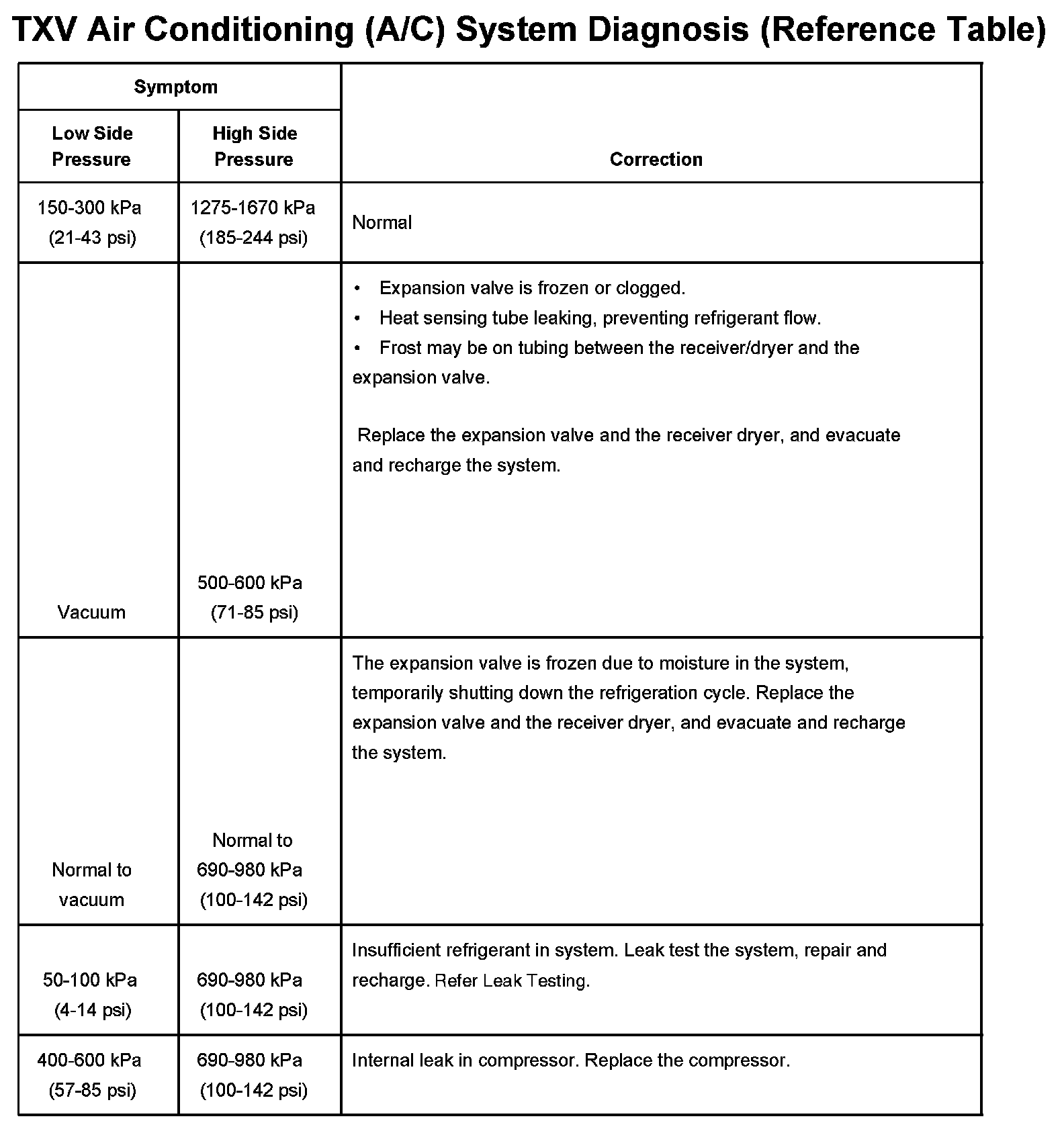

TXV Air Conditioning (A/C) System Diagnosis (Reference Table) Part 1:

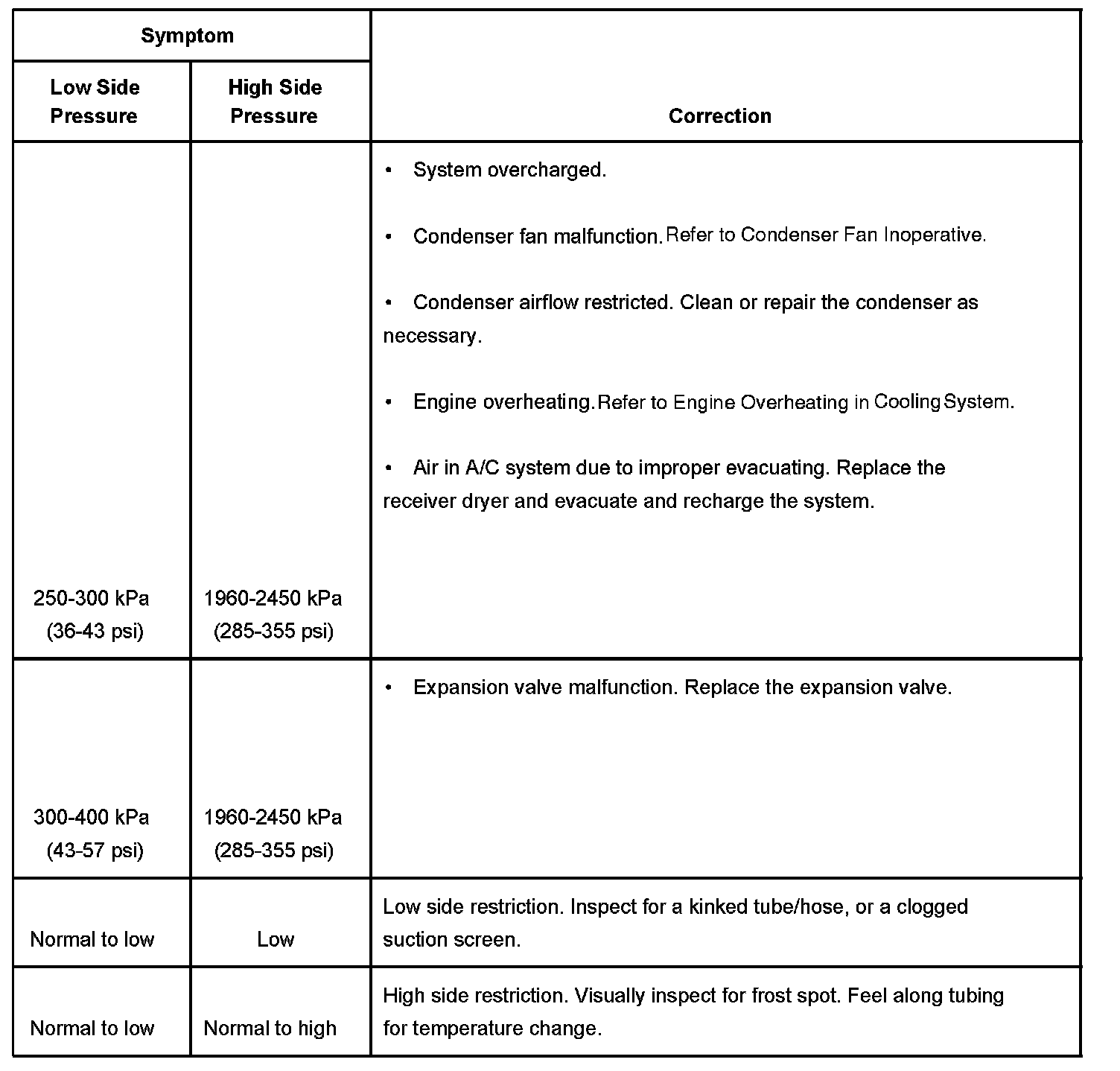

TXV Air Conditioning (A/C) System Diagnosis (Reference Table) Part 2:

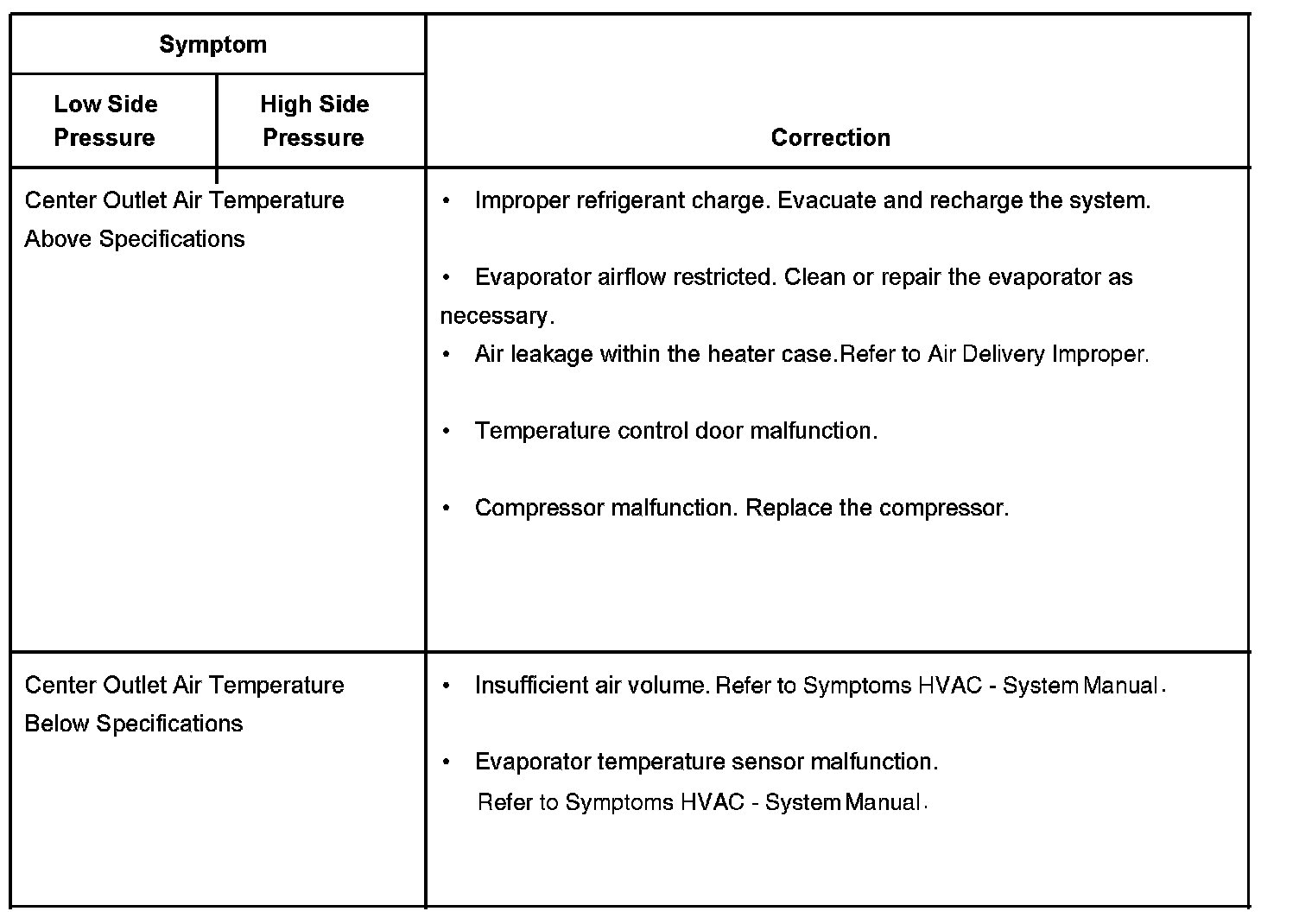

TXV Air Conditioning (A/C) System Diagnosis (Reference Table) Part 3:
