Cabin Ventilation Grille: Service and Repair

Pressure Relief Valve Replacement

Removal Procedure

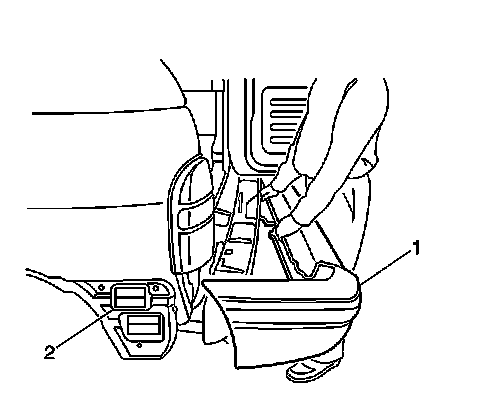

1. Remove the rear bumper fascia (1). Refer to Rear Bumper Fascia Replacement (Service and Repair) in Bumpers.
2. Remove the 3 screws and the plastic retainer which secure the pressure relief valve brace.
3. Remove the pressure relief valve brace from the vehicle.
4. Gently pry and remove the pressure relief valve (2) from the vehicle.

Installation Procedure




1. Install the pressure relief valve (2) to the vehicle. Ensure that the retaining tabs are fully engaged.
2. Install the pressure relief valve brace to the vehicle. Secure the brace with the 3 screws and the plastic retainer.
3. Install the rear bumper fascia (1). Refer to Rear Bumper Fascia Replacement (Service and Repair) in Bumpers.
