8. Crankshaft Front Oil Seal Removal

Crankshaft Front Oil Seal Removal





1. Remove the crankshaft pulley.

Important: To protect the crankshaft from damage, wrap the tip of the screwdriver with tape.

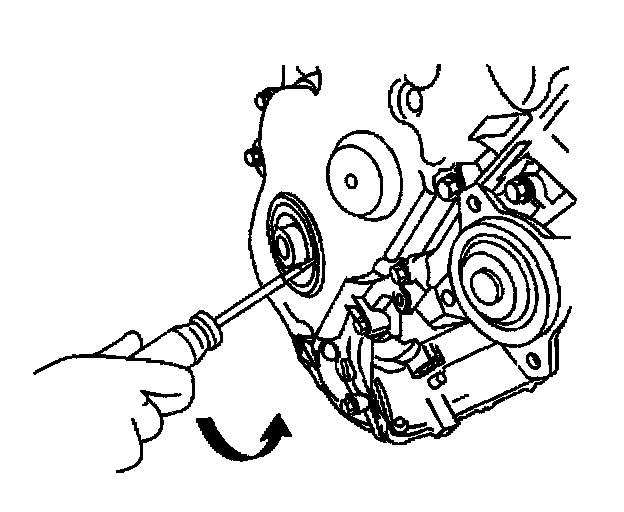

2. Carefully pry out the crankshaft front oil seal using a screwdriver.
