7. Water Pump Removal

Water Pump Removal

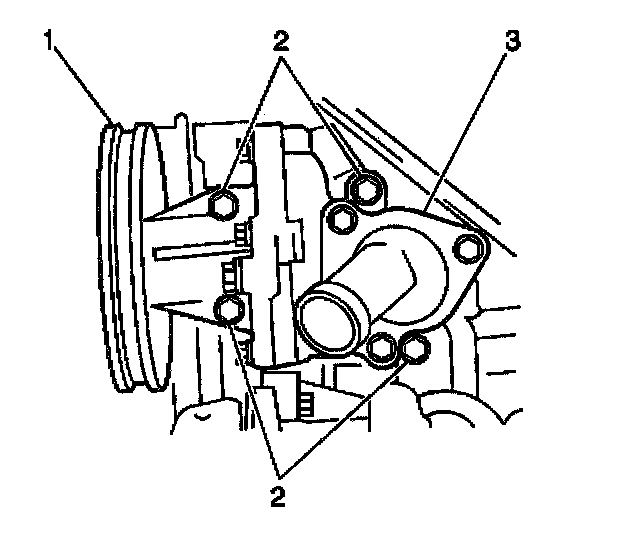

1. Remove the 1 bolt and the heater outlet line from the rear of the water pump housing.
2. Remove the 4 bolts (2) and the water pump from the engine block.
3. Remove the dowel pins from the engine block.
