5. Crankshaft Pulley Removal

Crankshaft Pulley Removal

- Tools Required
- J 8614-01 Flange and Pulley Holding Tool

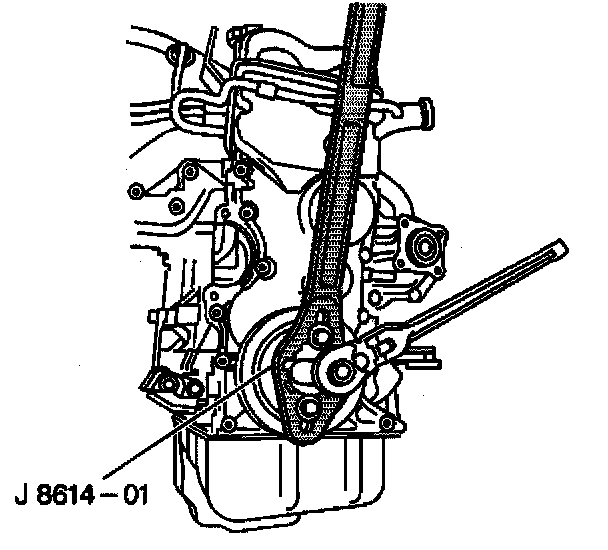

1. Remove the crankshaft pulley retaining bolt using the J 8614-01 to prevent crankshaft rotation when loosening the bolt.

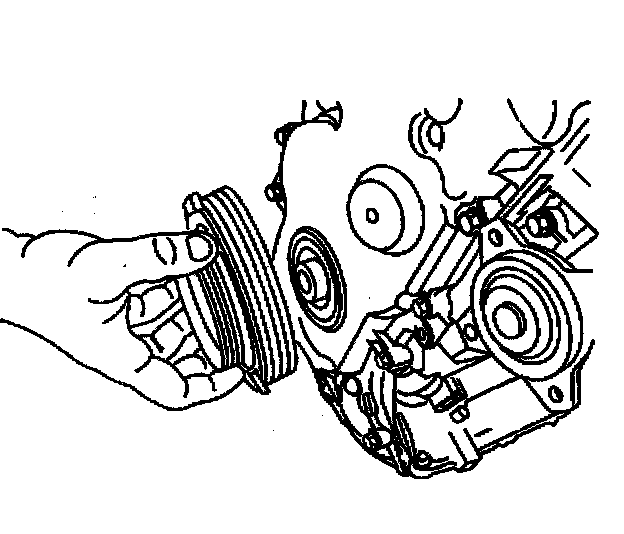

2. Remove the crankshaft pulley.
