38. Oil Pump Assemble

Oil Pump Assemble





1. Lubricate the following with clean engine oil.
- The oil pump inner gear
- The oil pump outer gear
- The inside surface of the oil pump body
2. Install the oil pump outer and inner gears to the oil pump body.

Notice: Fill oil pump cavities with petroleum jelly prior to installation. This will ensure that there is oil pressure immediately on start-up and will prevent engine damage.

3. Fill the oil pump with petroleum jelly to prime the oil pump.

Notice: Refer to Fastener Notice in Service Precautions.

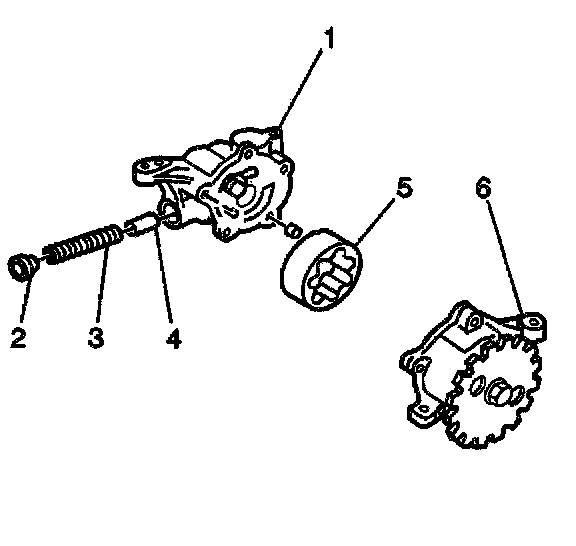

4. Install the relief valve (4), the spring (3) and the retainer (2).
- Tighten the retainer to 29 Nm (21 ft. lbs.).
5. Install the oil pump cover to the oil pump body. Secure the cover with 5 bolts.
- Tighten the bolts to 12 Nm (9 ft. lbs.).
