Transfer Case
Transfer Case

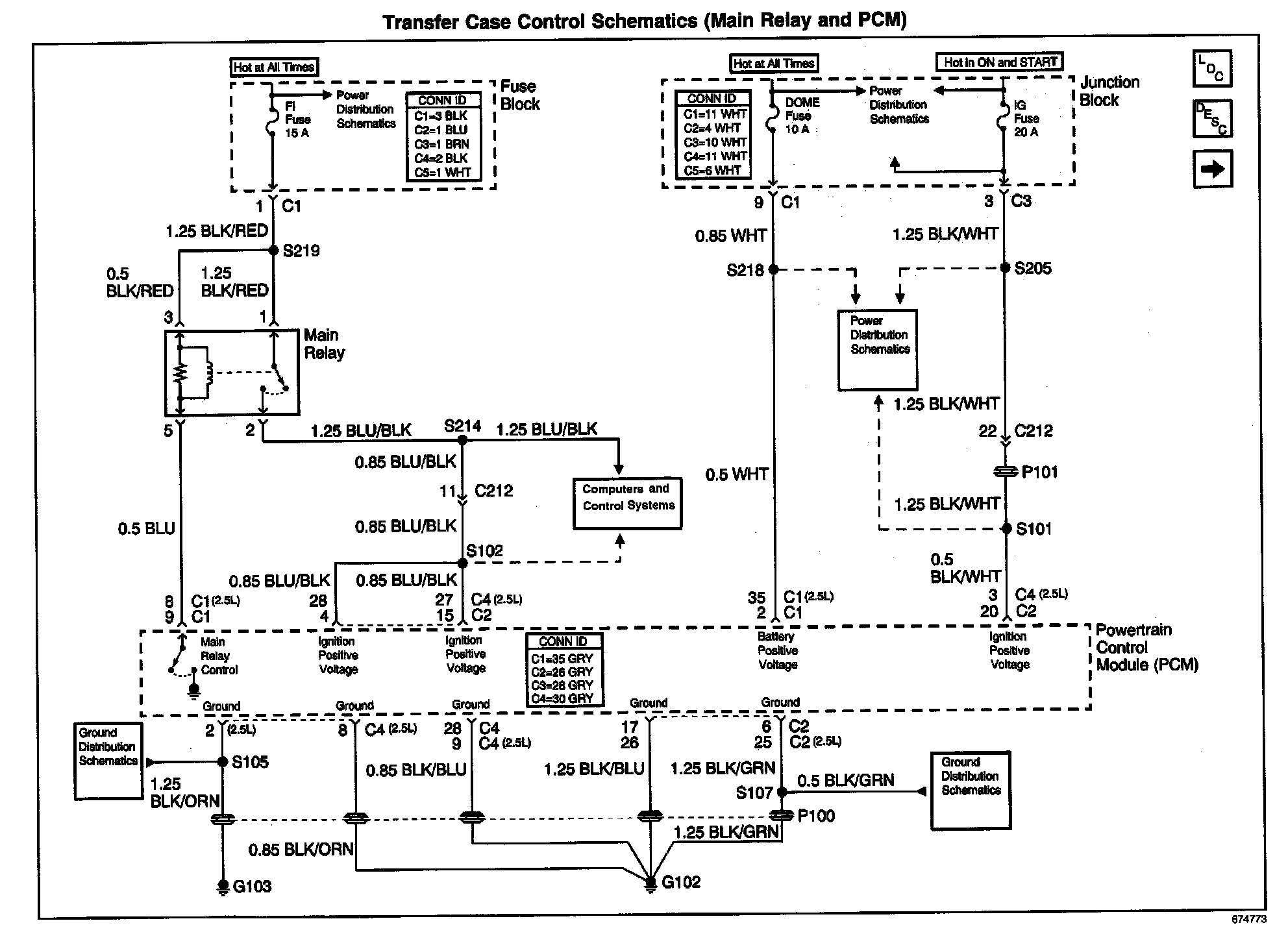

Transfer Case Control Schematics: Main Relay And PCM:
Transfer Case Control Schematics: Front Drive Axle Actuator Pump And Four Wheel Drive Switches:
