Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
System Diagram

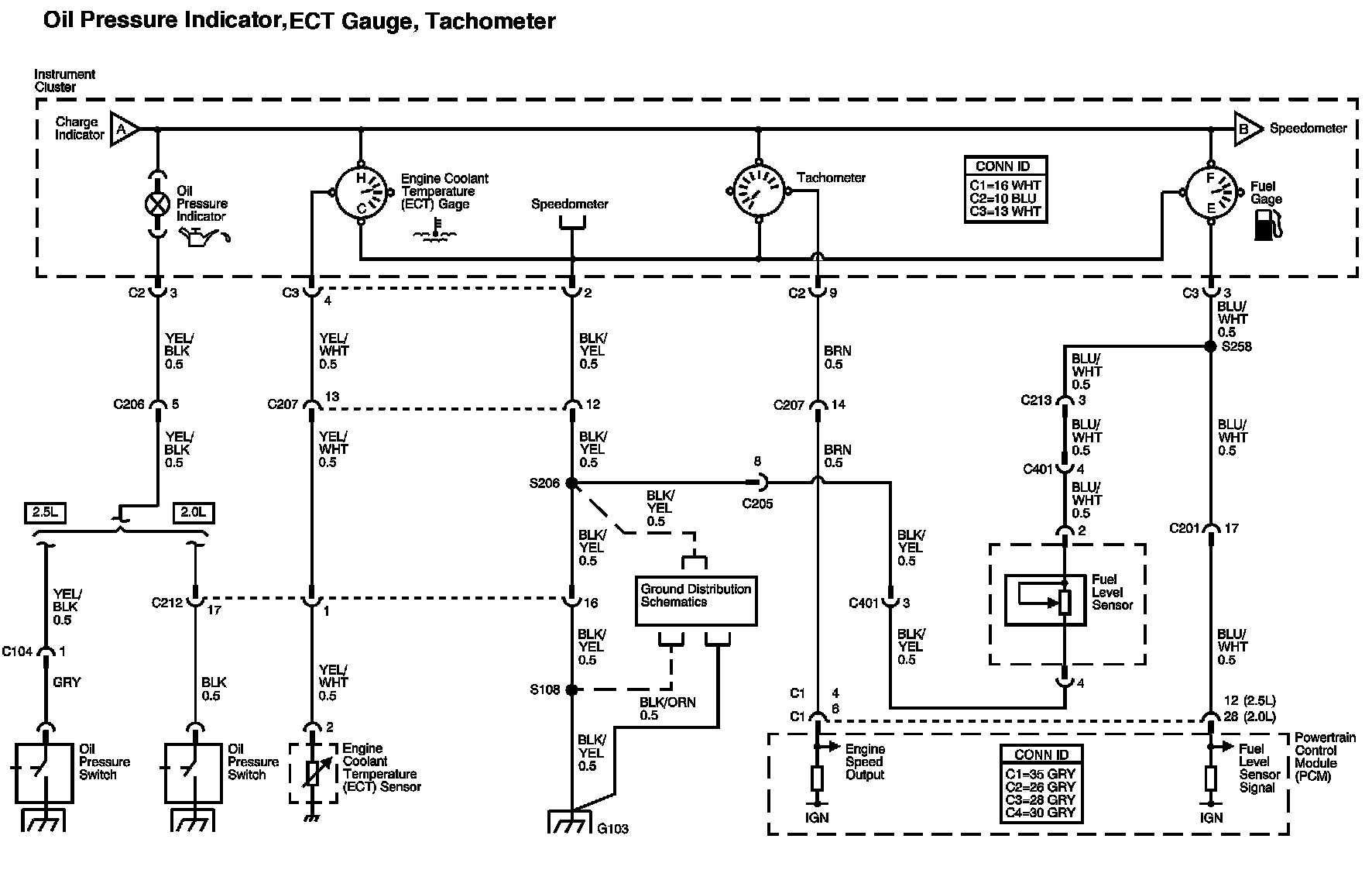

Instrument Cluster Diagram 1:

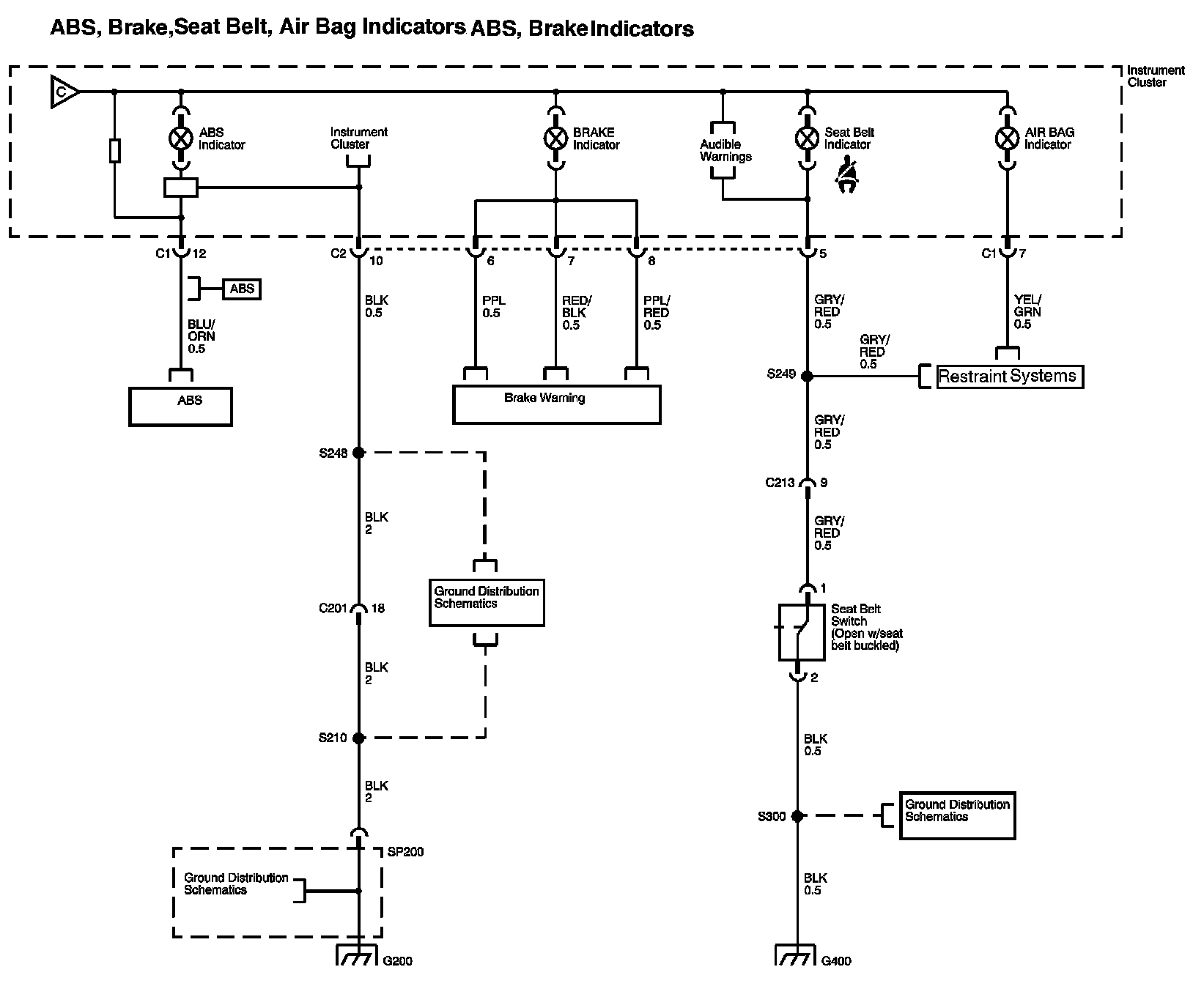

Instrument Cluster Diagram 2:

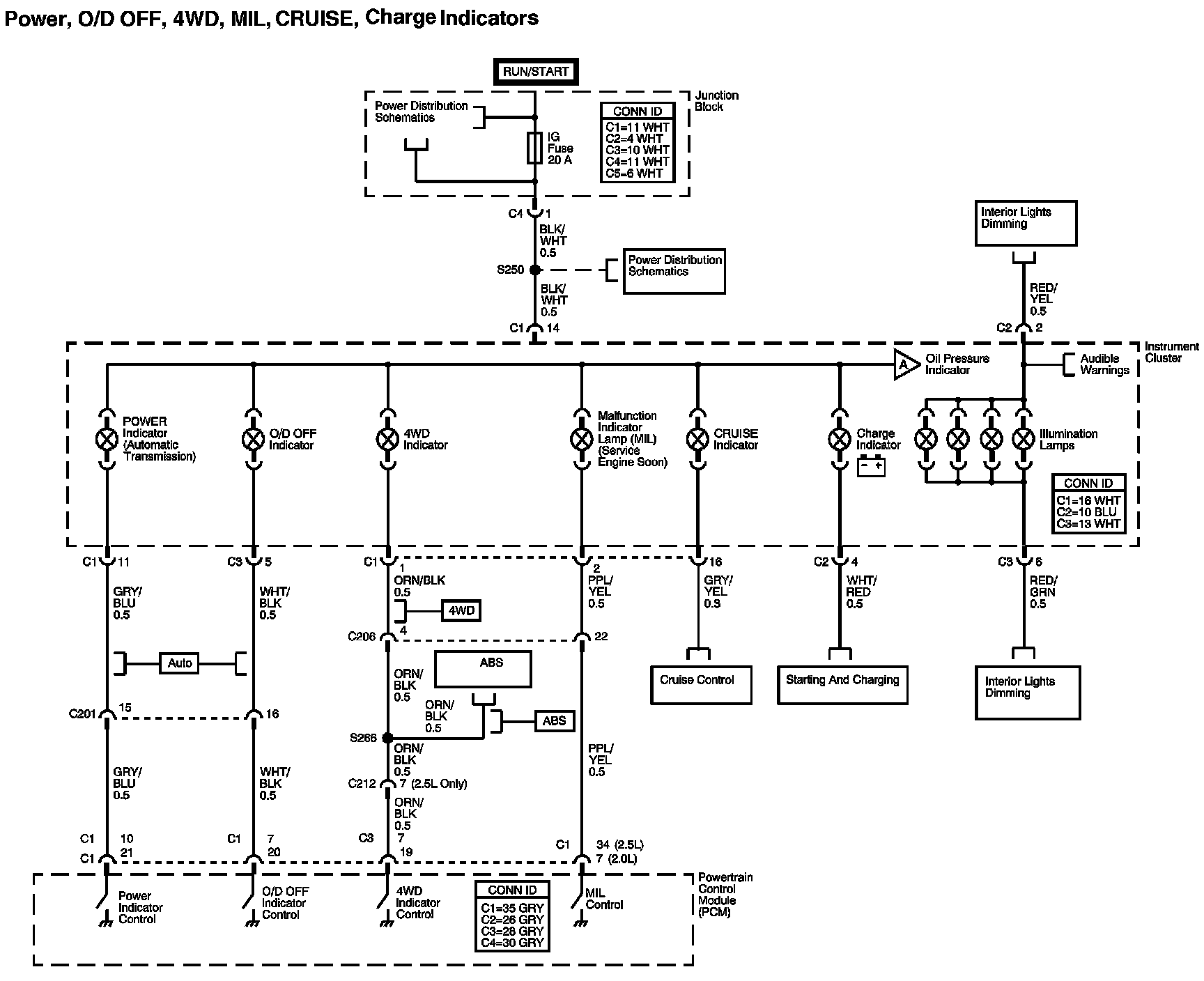

Instrument Cluster Diagram 3:
Instrument Cluster Diagram 4:
Instrument Cluster Diagram 5:
Instrument Cluster Diagram 6:
