Antilock Brakes / Traction Control Systems
>>
Brake Fluid Level Indicator, Brake Indicator & Stop LP SW
Brake Fluid Level Indicator, Brake Indicator & Stop LP SW

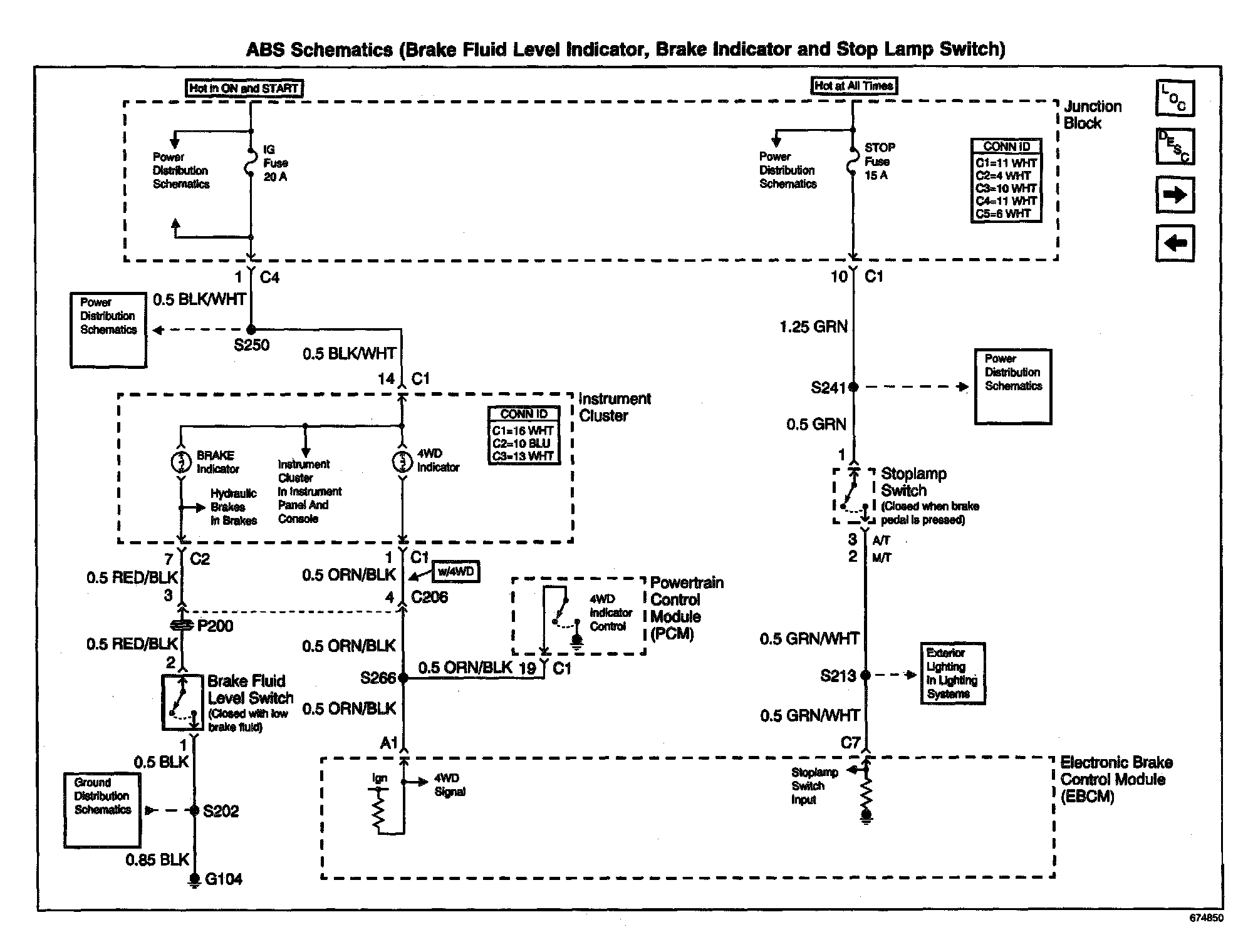

ABS Schematics: Brake Fluid Level Indicator, Brake Indicator And Stop Lamp Switch:
