Back View of the PCM Connector C4
Back View of the PCM Connector C4
Back View Of The PCM Connector C4 Part 1:

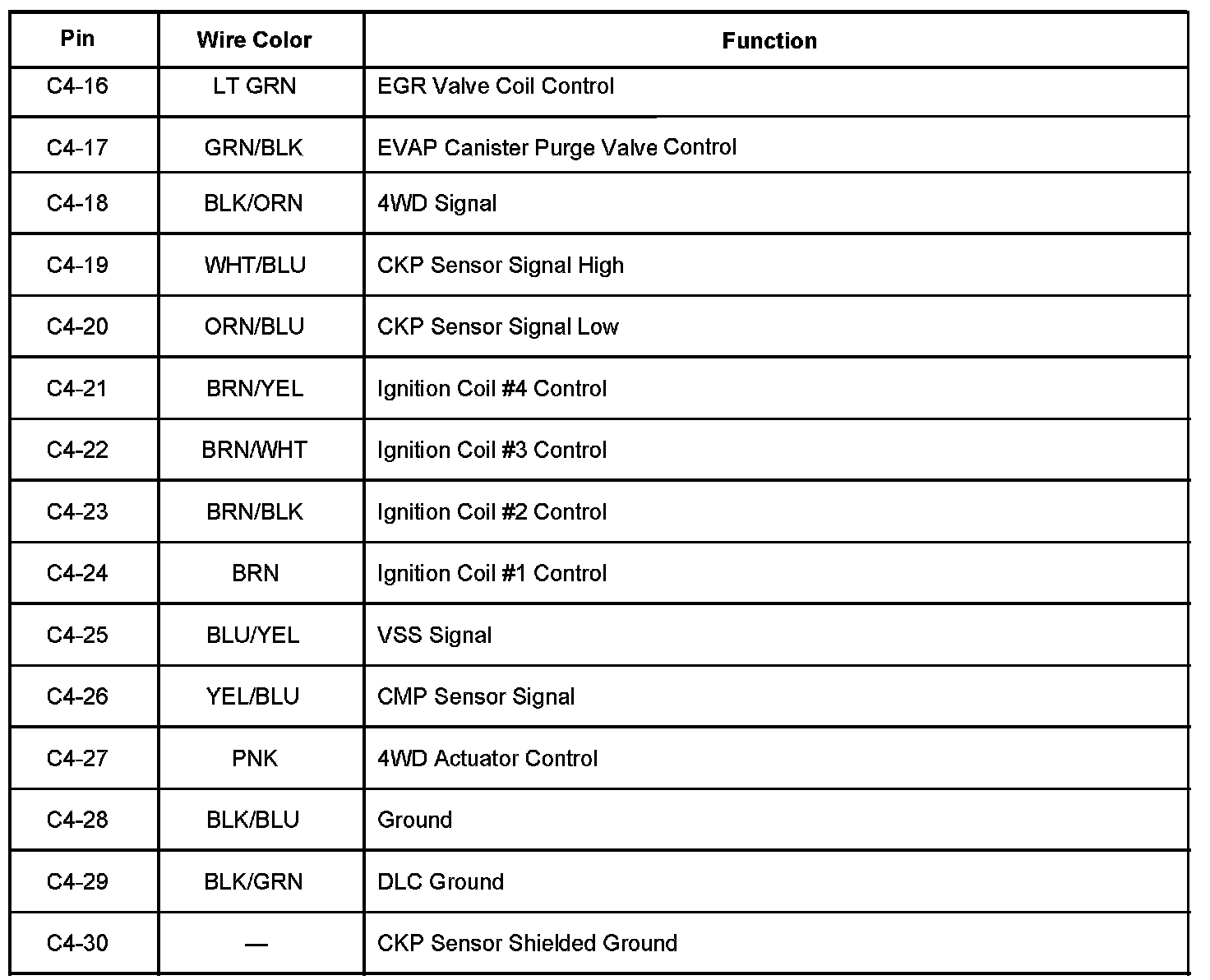

Back View Of The PCM Connector C4 Part 2:
