Back View of the PCM Connector C2
Back View of the PCM Connector C2

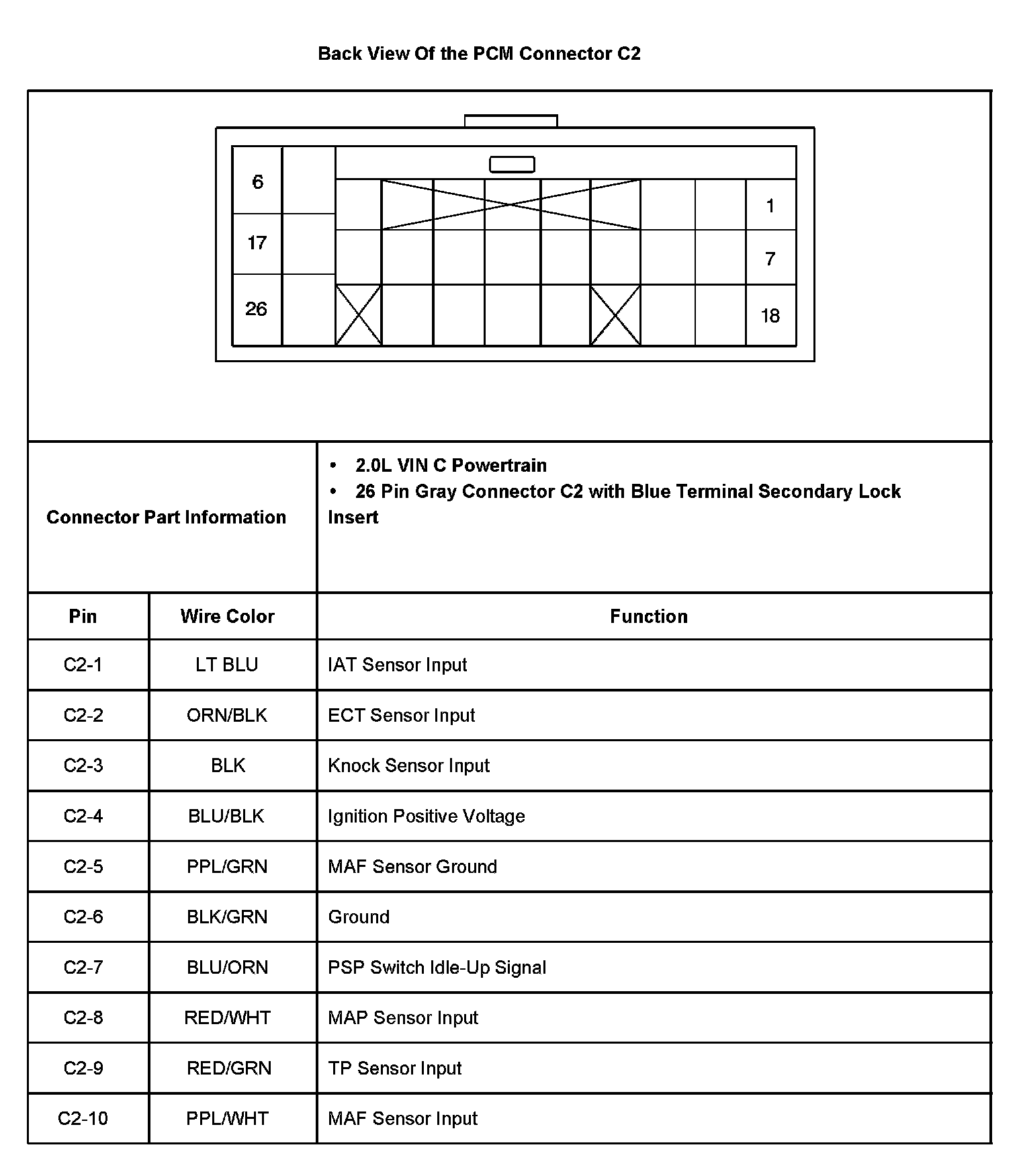

Back View Of The PCM Connector C2 Part 1:
Back View Of The PCM Connector C2 Part 2:
