Vacuum Brake Booster Hose Replacement
Vacuum Brake Booster Hose ReplacementRemoval Procedure

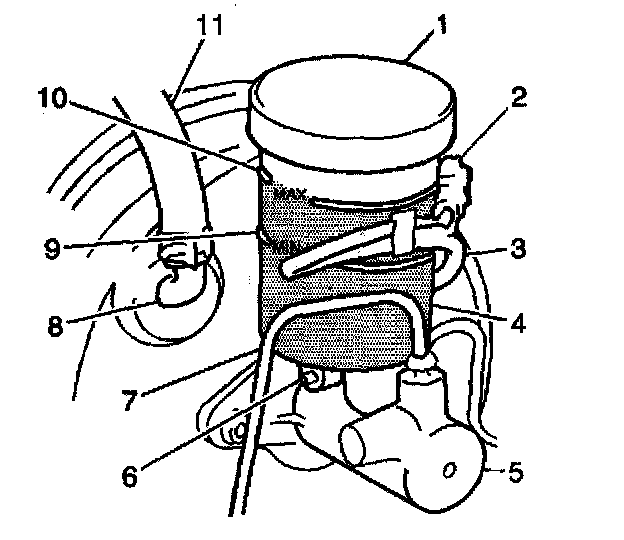

1. Loosen the hose clamp on the brake booster vacuum hose (11).
2. Remove the hose from the booster (8).
3. Loosen the hose clamp that retains the booster vacuum hose to the intake manifold.
4. Remove the hose from the intake manifold.
5. Remove the 2 bolts that retain the booster vacuum pipe to the cowl.
6. Remove the 2 booster vacuum hoses and the booster vacuum pipe from the vehicle.
7. If necessary, loosen the hose clamps and remove the 2 hoses from the pipe.
Installation Procedure
1. Install the 2 vacuum booster hoses to the vacuum booster pipe.
2. Install the 2 hose clamps in order to retain the hoses to the pipe.
3. Install the 2 hoses and the pipe to the cowl.
Notice: Refer to Fastener Notice in Service Precautions.
4. Install the 2 bolts in order to retain the pipe to the cowl.
^ Tighten the bolts to 10 Nm (7.5 ft. lbs.).
5. Install the booster vacuum hose to the intake manifold.
6. Install the hose clamp in order to retain the hose to the manifold.
7. Install the booster vacuum hose (11) to the booster (8).
8. Install the hose clamp in order to retain the hose to the booster.
