Disc Brake System Diagnosis

Disc Brake System Diagnosis

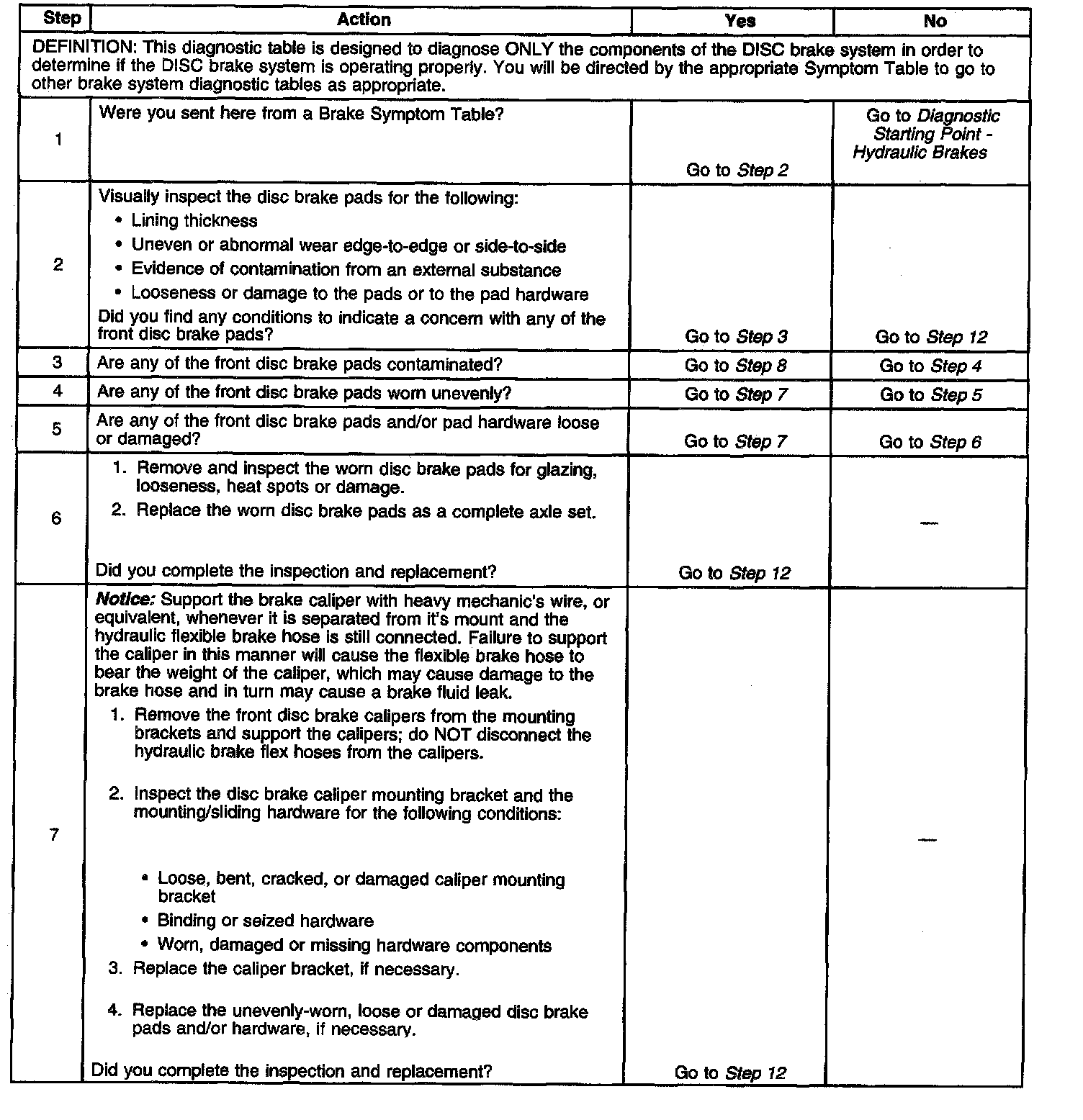

Test 1 - 7

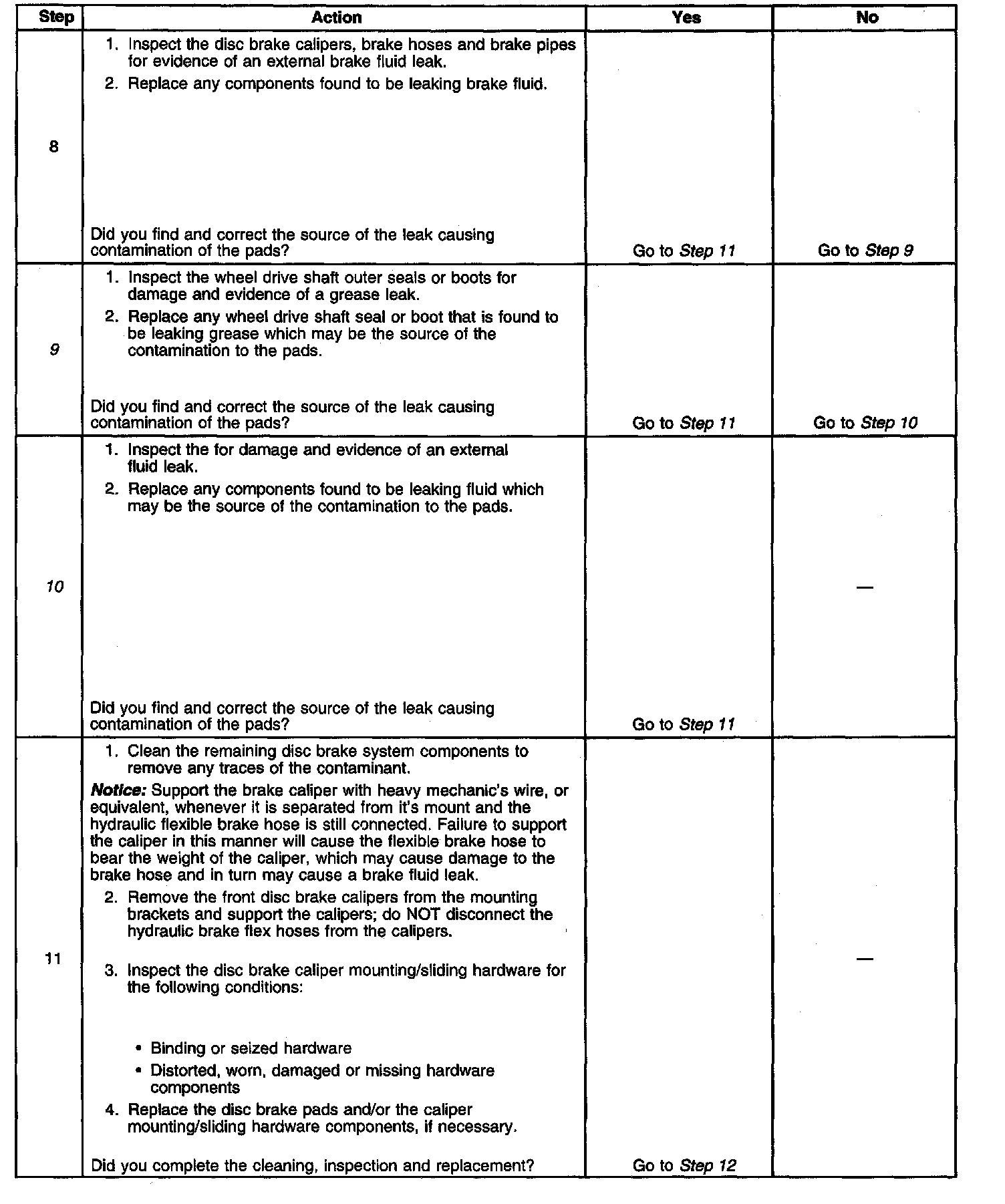

Test 8 - 11





Test 12 - 17





Test 18 - 20

Test Description
The numbers below refer to the step numbers on the diagnostic table:
9. Lubricant leaks from non-brake system components may come in contact with and contaminate brake system components.
10. Lubricant leaks from non-brake system components may come in contact with and contaminate brake system components.
12. Disc brake shields that come in contact with disc brake rotors may cause brake system noise.
