Seat Adjuster Track Cover Replacement - Front Outer

SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT OUTER

REMOVAL PROCEDURE




1. Remove the front seat recliner knob.

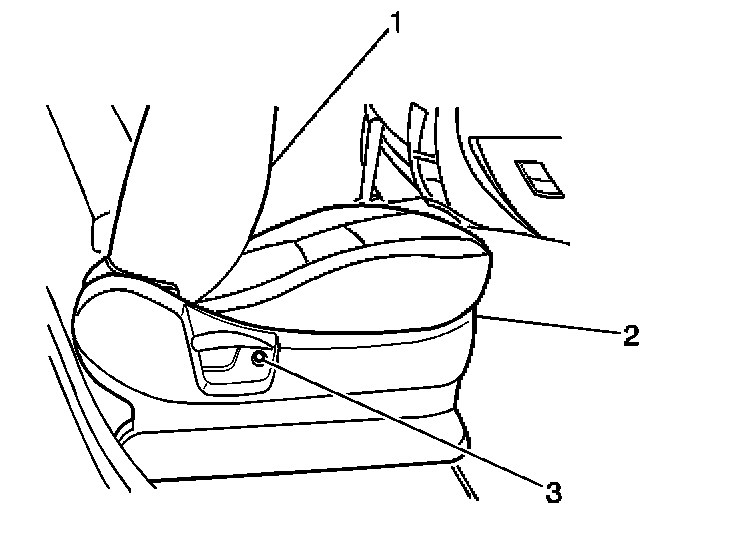

2. Remove the screw (3) and gently pry the seat outer adjuster finish cover (2) from the seat outer adjuster.

INSTALLATION PROCEDURE

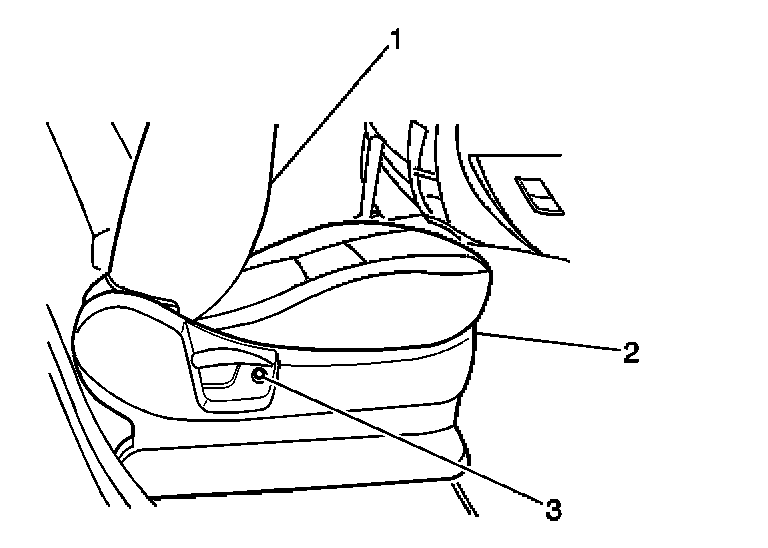

1. Install the seat outer adjuster finish cover (2) to the seat outer adjuster. Secure the cover with the screw (3).
2. Install the front seat recliner knob.
