Seat Adjuster Track Cover Replacement - Front Inner

SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT INNER

REMOVAL PROCEDURE




1. Remove the front seat.

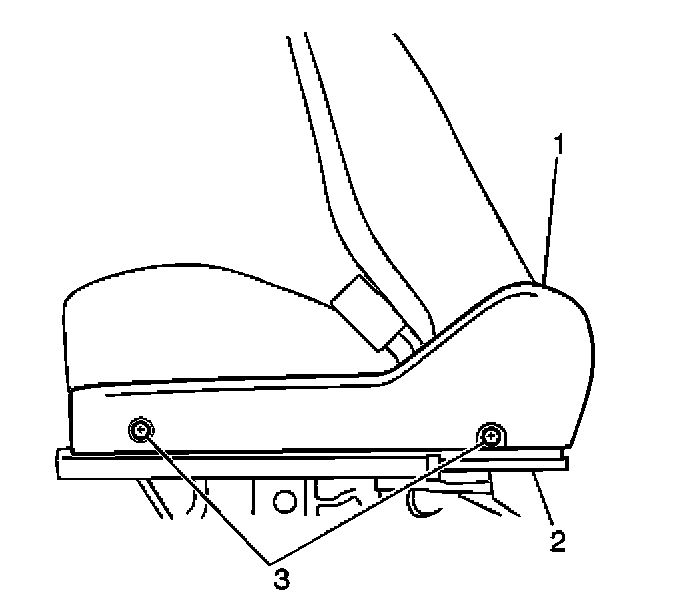

2. Remove the following components from the seat inner adjuster (2):
- The 2 screws (3)
- The seat inner adjuster finish cover (1)

INSTALLATION PROCEDURE

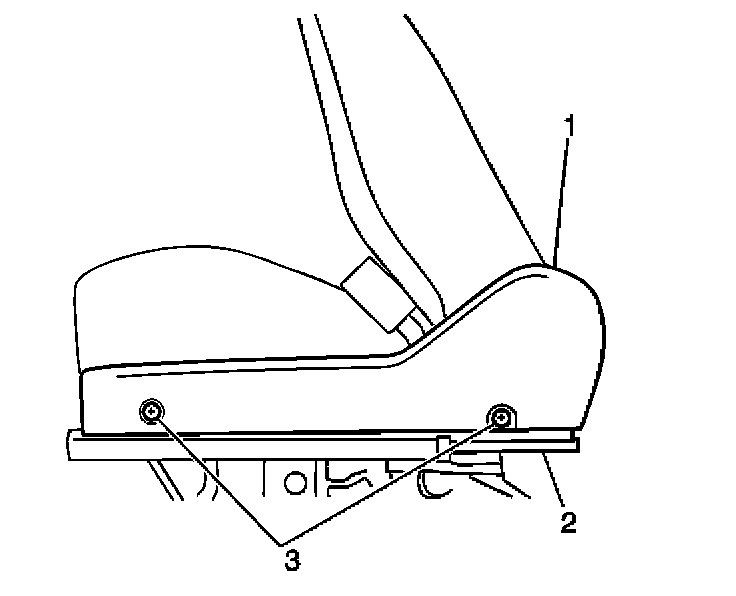

1. Install the seat inner adjuster finish cover (1) to the seat inner adjuster (2). Secure the cover with the 2 screws (3).
2. Install the front seat.
