Seat Adjuster Replacement - Front Outer
SEAT ADJUSTER REPLACEMENT - FRONT OUTERREMOVAL PROCEDURE
1. Remove the front seat.
2. Remove the front seat inner adjuster finish cover.
3. Remove the front seat outer adjuster finish cover.
4. Remove the front seat back cushion.
5. Remove the front seat cushion.

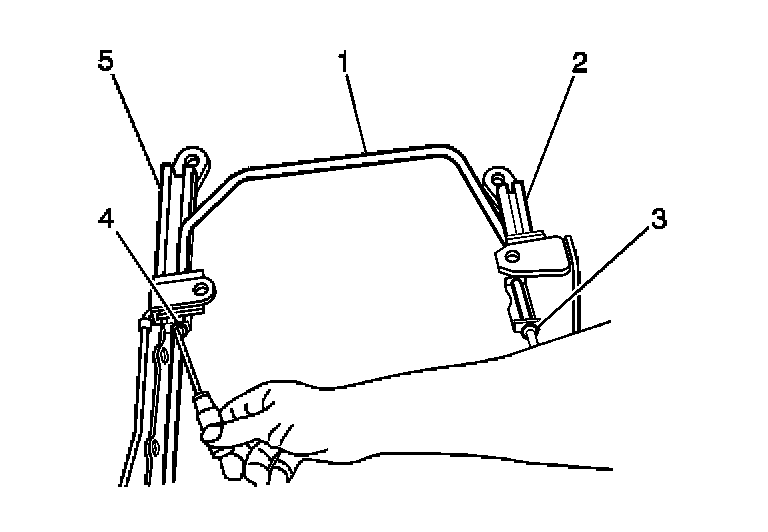

6. Lift the retaining spring (4) and remove the seat adjuster handle (1) from the outer seat adjuster (5).
7. Remove the outer seat adjuster (5) from the seat adjuster lateral rod.
INSTALLATION PROCEDURE
1. Install the outer seat adjuster (5) to the seat adjuster lateral rod.

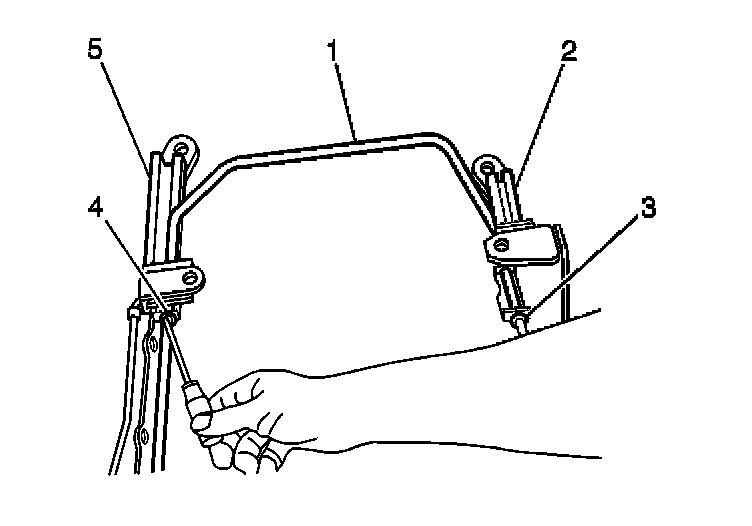

2. Install the seat adjuster handle (1) to the outer seat adjuster (5). Ensure that the handle is locked into position by the retaining spring (4).
3. Install the front seat cushion.
4. Install the front seat back cushion.
5. Install the front seat outer adjuster finish cover.
6. Install the front seat inner adjuster finish cover.
7. Install the front seat.
