Seat Adjuster Handle Replacement - Two-Way Manual
SEAT ADJUSTER HANDLE REPLACEMENT - TWO-WAY MANUALREMOVAL PROCEDURE
1. Remove the front seat.
2. Remove the front seat inner adjuster finish cover.
3. Remove the front seat outer adjuster finish cover.
4. Remove the front seat cushion.

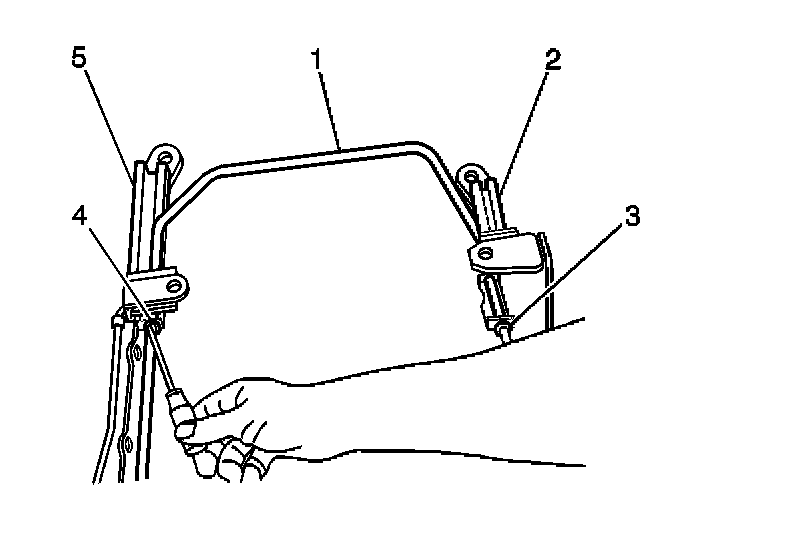

5. Lift the retaining springs (3, 4) and remove the seat adjuster handle (1) from the seat adjusters (2, 5).
INSTALLATION PROCEDURE

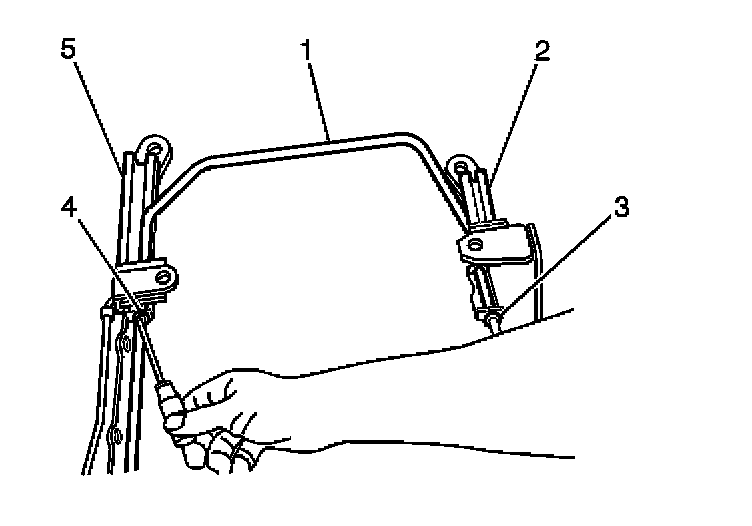

1. Install the seat adjuster handle (1) to the seat adjusters (2, 5). Ensure that the handle is locked into position by the retaining springs (3, 4).
2. Install the front seat cushion.
3. Install the front seat outer adjuster finish cover.
4. Install the front seat inner adjuster finish cover.
5. Install the front seat.
