Seat Cushion Frame Replacement - Rear (4 Door)

SEAT CUSHION FRAME REPLACEMENT - REAR (4 DOOR)

REMOVAL PROCEDURE




1. Remove the rear seat cushion cover.

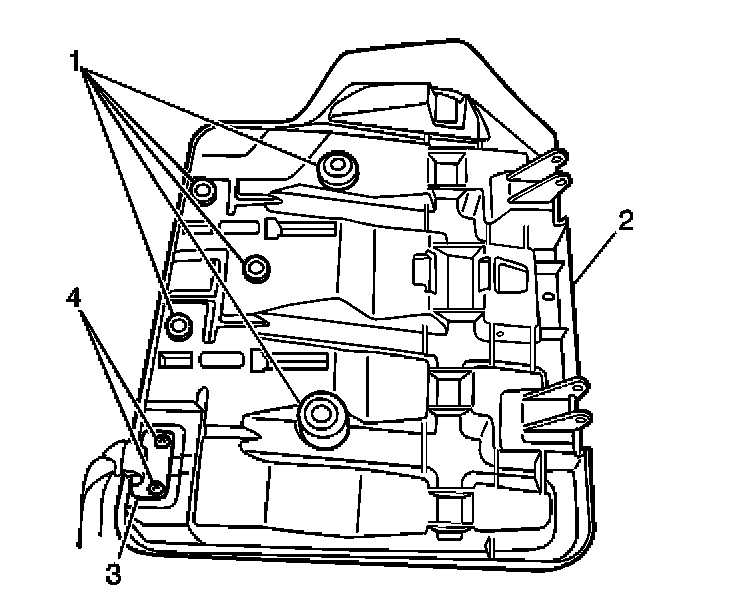

2. Remove the following components from the rear seat cushion frame (2):
2.1. The 5 screws which secure the rear seat cushion bumpers (1)
2.2. The 5 bumpers (1)
2.3. The 2 screws (4)
2.4. The rear seat pull strap (3)

INSTALLATION PROCEDURE

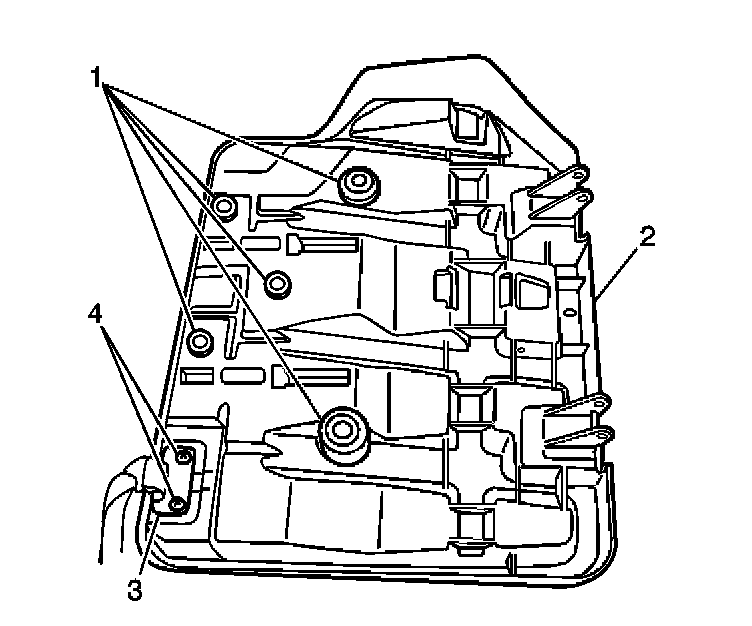

1. Install the rear seat pull strap (3) to the rear seat cushion frame (2). Secure the strap with the 2 screws (4).
2. Install the 5 bumpers (1) to the cushion frame (2). Secure each bumper with 1 screw.
3. Install the rear seat cushion cover.
