Seat Cushion Cover Replacement - Front

SEAT CUSHION COVER REPLACEMENT - FRONT

REMOVAL PROCEDURE




1. Remove the front seat cushion.

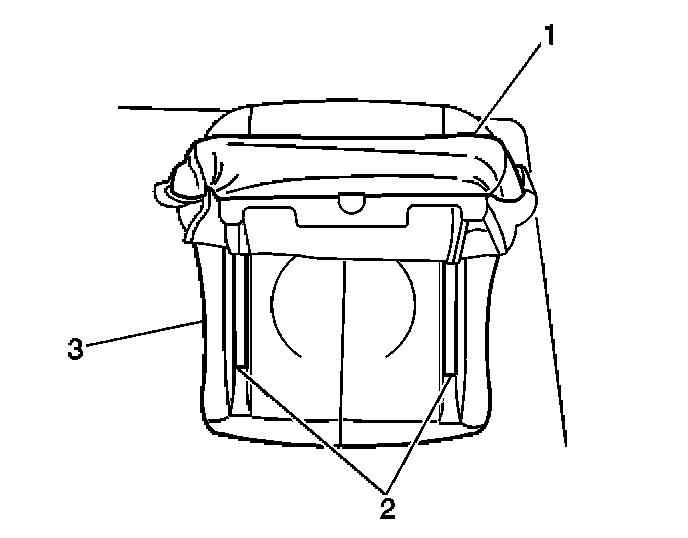

2. Release the J-retainers which secure the seat cushion cover (1) to the seat cushion.
3. Remove the seat cushion cover (1) from the seat cushion.

INSTALLATION PROCEDURE

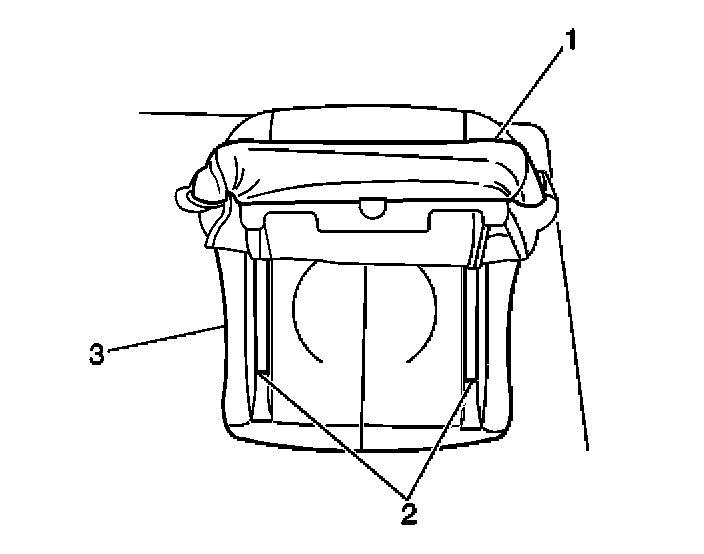

1. Install the seat cushion cover (1) to the seat cushion. Secure the cover with the J-retainers.
2. Install the front seat cushion.
