Driver or Passenger Seat Back Cushion Cover Replacement (Passenger Side)

Driver or Passenger Seat Back Cushion Cover Replacement (Passenger Side)

Removal Procedure




1. Remove the front seat head restraint. Refer to Driver or Passenger Seat Head Restraint Replacement (Driver or Passenger Seat Head Restraint Replacement).
2. Remove the armrest. Refer to Armrest Replacement (Service and Repair).

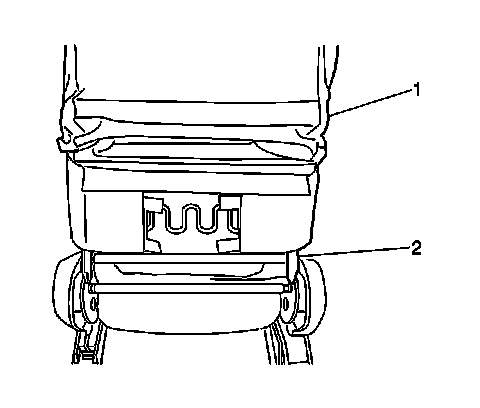

3. Release the J-retainer (2) on the bottom of the seat back cushion which secures the seat back cushion cover (1).




4. Roll up the seat back cushion cover (1).

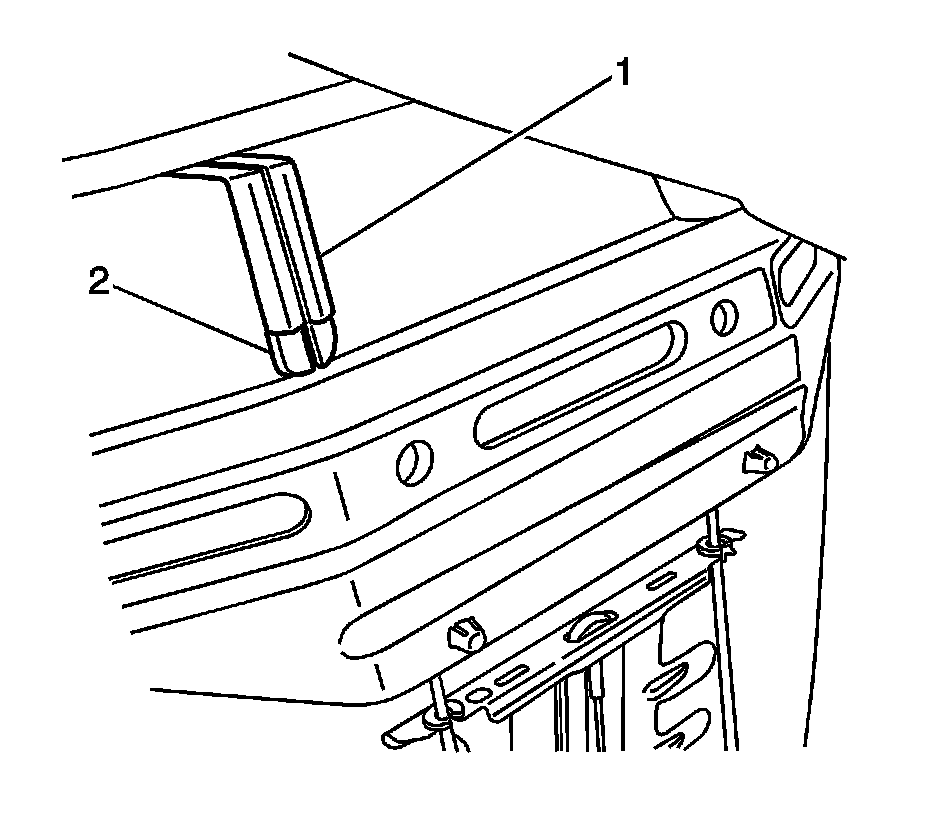

5. Squeeze the bottom of the head restraint guides (2) and remove from the seat back frame (1).
6. Remove the seat back cushion cover from the seat back cushion.

Installation Procedure




1. Roll the seat back cushion cover (1) onto the seat back cushion (2).




2. Install the head restraint guide (2) to the seat back frame (1) by pushing down until it clips in.




3. Secure the J-retainer (2) on the bottom of the seat back cushion which secures the seat back cushion cover (1).
4. Install the armrest. Refer to Armrest Replacement (Service and Repair).
5. Install the front seat head restraint. Refer to Driver or Passenger Seat Head Restraint Replacement (Driver or Passenger Seat Head Restraint Replacement).
