Seat Back Replacement - Front
SEAT BACK REPLACEMENT - FRONTREMOVAL PROCEDURE
1. Remove the front seat.
2. Remove the front seat inner adjuster finish cover.
3. Remove the front seat outer adjuster finish cover.

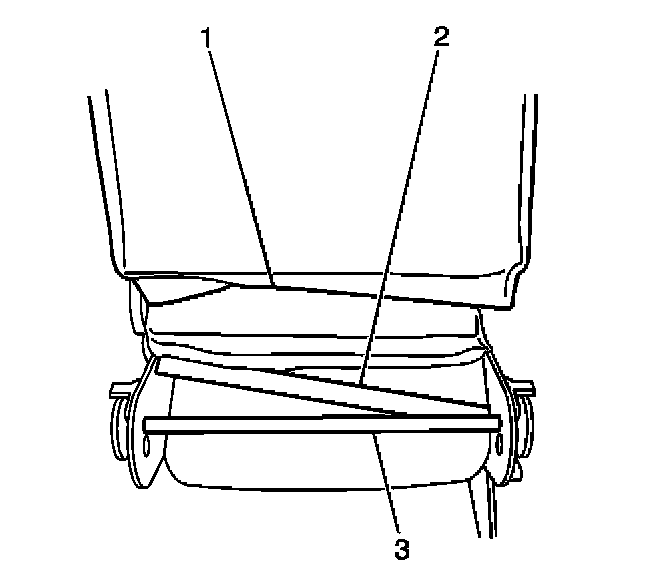

4. Release the J-retainer (2) on the bottom of the seat back cushion (1) which secures the cushion around the seat adjuster lateral rod (3).

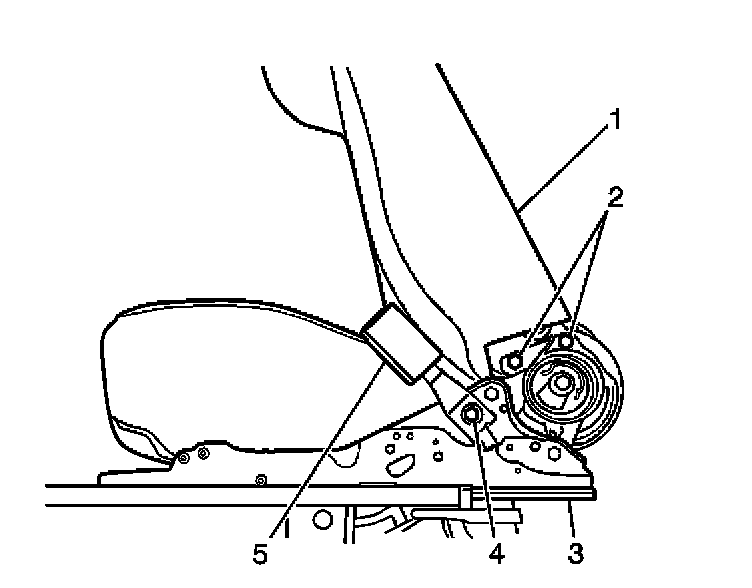

5. Remove the 2 bolts (2) which secure each seat adjuster (3) to the seat back cushion (1).
6. Remove the seat back cushion (1) from the front seat.
INSTALLATION PROCEDURE

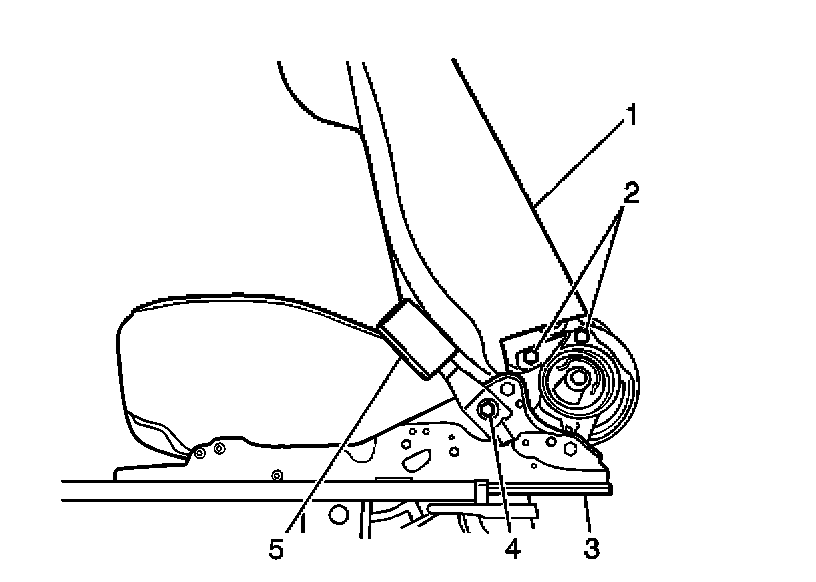

1. Install the seat back cushion (1) to the front seat. Secure the cushion to each seat adjuster (3) with the 2 mounting bolts (2).
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the front seat back cushion mounting bolts to 35 N.m (25 lb ft).

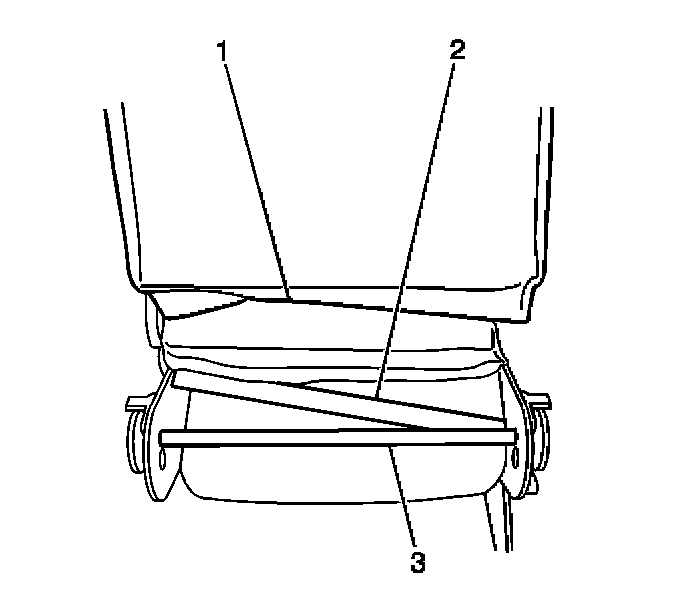

2. Secure the J-retainer (2) on the bottom of the seat back cushion (1) which secures the cushion around the seat adjuster lateral rod (3).
3. Install the front seat outer adjuster finish cover.
4. Install the front seat inner adjuster finish cover
5. Install the front seat.
